Survey Equipment

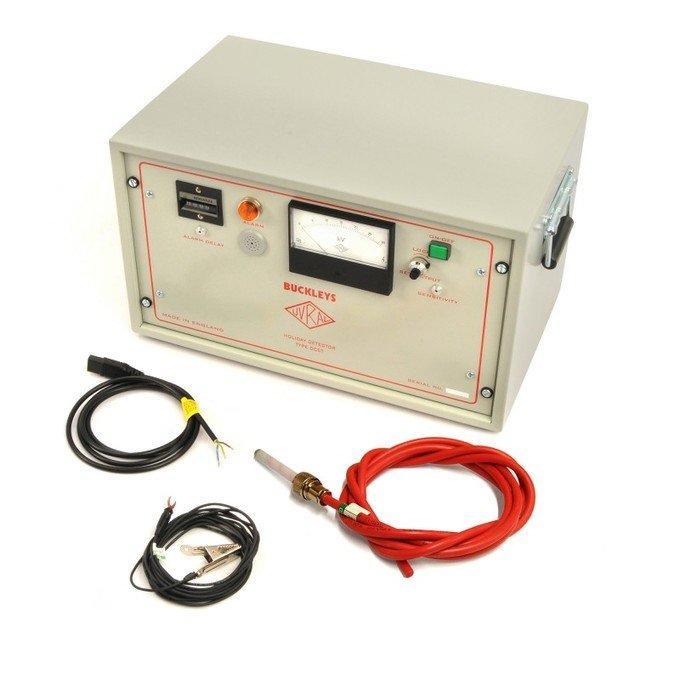

Buckleys: DCCT Pinhole/Cable Tester (4kV – 30kV)

Availability: Sale

Unique Grou in partnership with Buckleys, offers the DCCT 4-30kV pinhole/ cable tester which is an effective equipment for checking the cables and all non-conductive coating elements using high voltage for getting effective results.

Features

Resettable high speed counter

Variable alarm and sensitivity controls

Visual and audible alarms

Suitable for low or high speed testing

Conforms to DC testing of cables BS EN 5056:2002 (formerly BS 5099)

Specifications

Maximum continuous output current: <1mA.

Weight: 17 Kg

Dimensions: 500mm (W), 300mm (H), 330mm (D)

Metre accuracy: <2%.

Mains supply voltage: 110/120V or 220/240V, 50/60Hz.

Applications

Ideal for checking cables, plastic sheets, battery cases, moulded components and non-conductive coatings on steel pipework.
