Cranemaster CM2-50T-3000: Passive Heave Compensator

Availability: ,

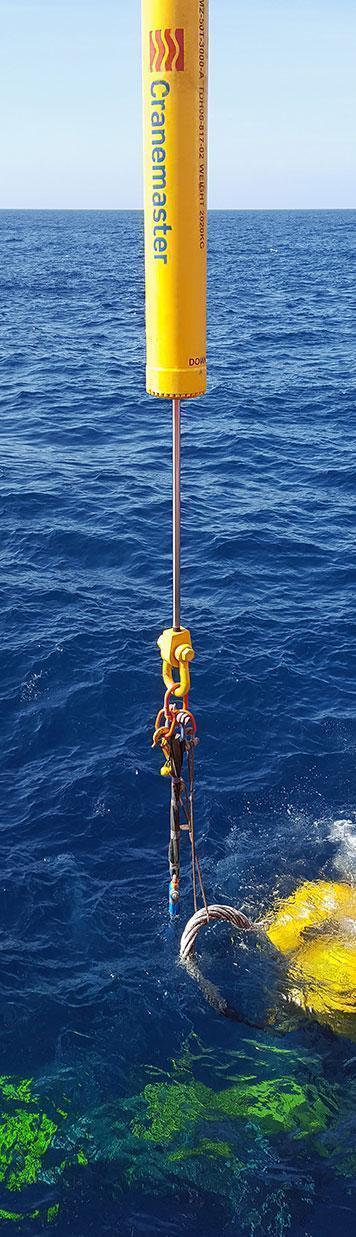

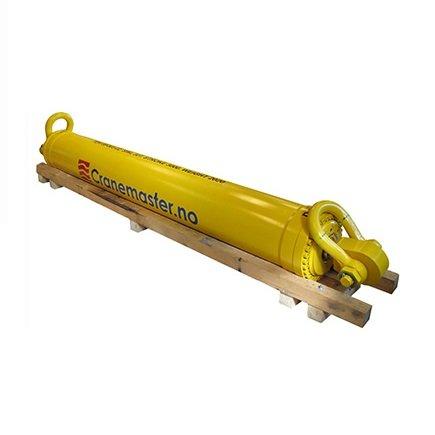

Unique Group offers Cranemaster’s CM2-50T-3000, a passive heave compensation equipment that protects crane, rigs and payload from shock loads, motion and/or excessive forces. It is manufactured in Norway and Germany using high quality materials and components.


Designed and tested for harsh offshore environments.

Adjustable spring and dampening characteristics.

Self-contained – no external connections of hoses or wire required.

Outstanding shock absorption, overload protection and tension control in air/subsea.


Safe Working Load (SWL): 50T.

Stroke length: 3000 mm.

Indicative load range: 1T – 42T.

Weight in air with shackles: 2,100 Kg.

CMAC control system: None.


Shock absorption air/subsea and splash zone crossing.

Overload protection air/subsea.

Pile run protection and tension control air/subsea.

Retrieval, decommissioning air/subsea.

Resonance avoidance and landing speed reduction in subsea.
