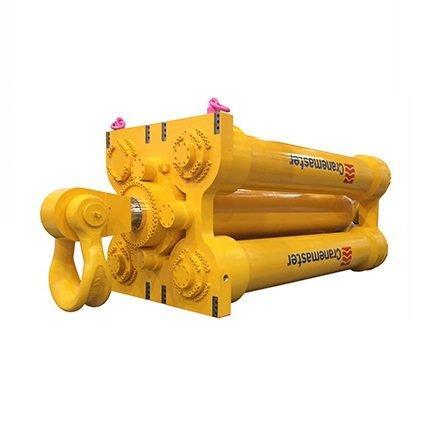

Cranemaster CM3-1000T-4000: Passive Heave Compensator
Unique Group offers Cranemaster’s CM3-1000T-4000, a passive heave compensation equipment that protects crane, rigs and payload from shock loads, motion and/or excessive forces. It is manufactured in Norway and Germany using high quality materials and components.
Designed and tested for harsh offshore environments.
Adjustable spring and dampening characteristics.
Self-contained – no external connections of hoses or wire required.
Outstanding shock absorption, overload protection and tension control in air/subsea.
Safe Working Load (SWL): 1000T.
Stroke length: 4000 mm.
Indicative load range: 10T – 650T.
CMAC control system: Yes.
Shock absorption air/subsea and splash zone crossing.
Overload protection air/subsea.
Pile run protection and tension control air/subsea.
Retrieval, decommissioning air/subsea.
Resonance avoidance and landing speed reduction in subsea.
