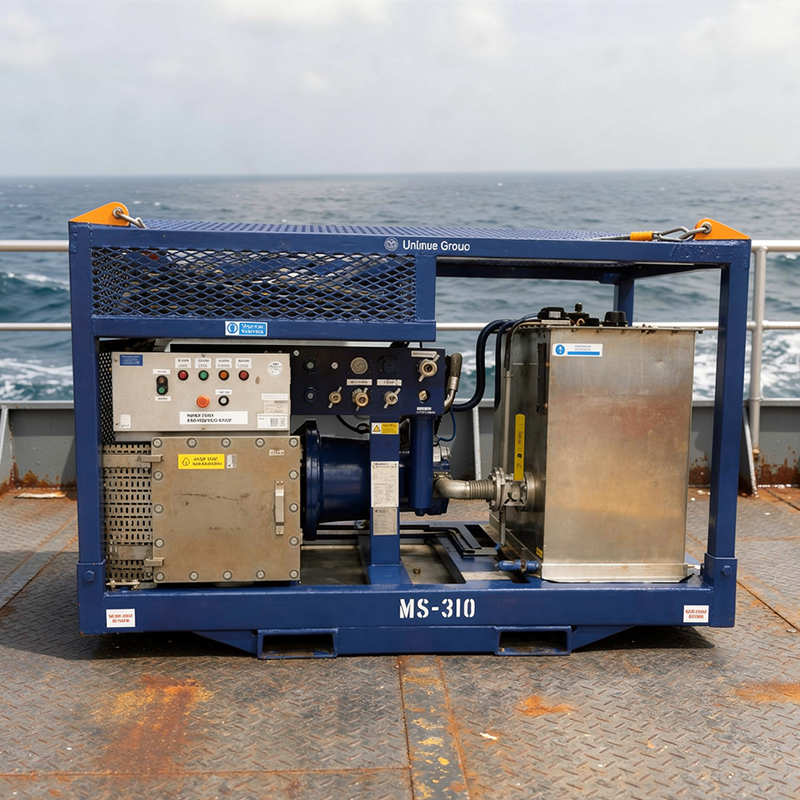

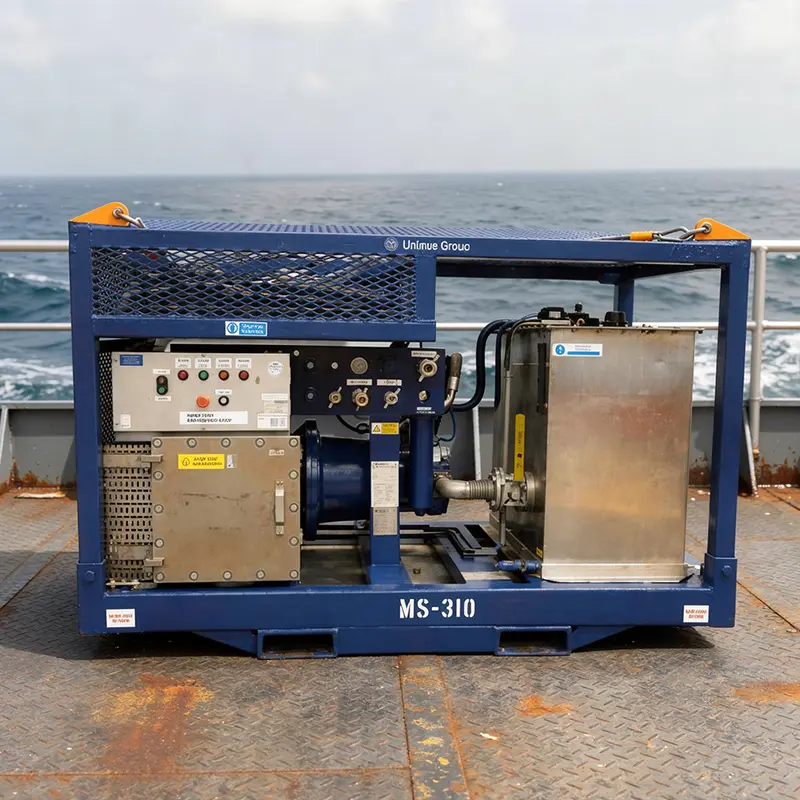

UG: 65kW Electric Hydraulic Power Pack
Unique Group’s Hydraulic Power Pack is engineered to deliver reliable, high-flow hydraulic power to subsea cutting, shearing, excavation and recovery systems. Designed for heavy-duty offshore campaigns, the unit provides controlled pressure delivery, high oil capacity, and integrated cooling to support continuous operations in demanding environments.
Built within a DNV 2.7-1 certified lifting frame, the system is suitable for vessel-based deployment and integration into mechanical spreads across decommissioning and construction projects.
Unique Group’s Hydraulic Power Pack is engineered to deliver reliable, high-flow hydraulic power to subsea cutting, shearing, excavation and recovery systems. Designed for heavy-duty offshore campaigns, the unit provides controlled pressure delivery, high oil capacity, and integrated cooling to support continuous operations in demanding environments.
Built within a DNV 2.7-1 certified lifting frame, the system is suitable for vessel-based deployment and integration into mechanical spreads across decommissioning and construction projects.
Features
Adjustable displacement pump delivering up to 230 l/min with controlled working pressures up to 250 bar.
Integrated Cooling System – Fresh and seawater heat exchanger ensures stable hydraulic performance during extended offshore operations.
Multi-Voltage Compatibility – Designed for global offshore deployment across multiple electrical supply configurations.
DNV 2.7-1 Certified Frame-Robust offshore lifting frame ensures safe handling and mobilisation.
Spread Integration Ready
Specifications
| Availability |
|---|
Frame: 2520 x 1230 x 1730mm, Weight 2800 kg DNV 2.7-1 lifting frame with chain sling
Max displacement: 0,14 I/rev – Adjustable
Flow: 50 HZ (1475 rpm):0-190 l/min: 60 HZ (1775 rpm): 0-230 1/min
Working pressure: 0-250 Bar
Max pressure:280 Bar
Tank capacity:600 L
Hydraulic Pressure Line: Connection 3/4″
Hydraulic Return Line: Connection 3/4″
Hydraulic Leak Line: Connection 3/4″
Cooling: Water heat exchanger (fresh- and seawater), THERMEX TYPE 2554
Cooling water connection: Claw connection 1″ inlet and outlet
Applications
Subsea hydraulic shear operations
Pipeline recovery tools
Excavation and dredging systems
Heavy-duty lifting support systems
Offshore construction and decommissioning campaigns
Vessel-integrated mechanical spreads
