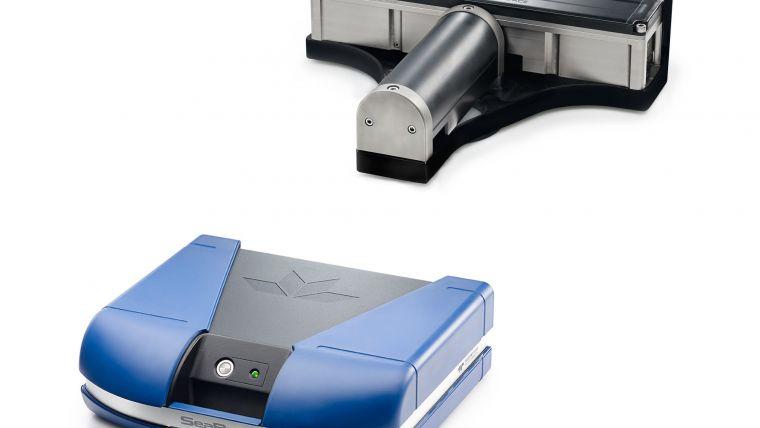

Teledyne Reson SeaBat T50-P: Multibeam Echosounder

Availability: Rental

The Reson SeaBat T50-P, is fully frequency agile from 190 to 420 kHz allowing for improved swath performance and reduced survey time under difficult conditions. It is designed for fast mobilisation on smaller vessels with portable sonar processor and sonar head securing low space requirements.

Features

Unprecedented clean and ultra high data quality for faster

operational surveys and reduced processing time

Fully frequency agile from 190 to 420 kHz, allowing for

improved swath performance and reduced survey time under

difficult conditions

Designed for smaller vessel portable use. The compact system allows for fast mobilization, mininal interfacing and low space

requirements

Significantly reduced amount of data collected with the intelligent data reduction algorithms in the compressed water column feature

Specifications

Input voltage: 24VDC or 100-230VAC 50/60H

Power (typical / max): 150W / 300W

Ingress protection: Water-resistant (IP54)

Transducer cable length: 25 m (standard) , Optional: 10 m, 50 m, or 100 m

Temperature (operational / storage): Portable sonar processor -5°C to +40°C / -30°C to +70°C

Applications

Oceanographic survey

Hydrographic survey
