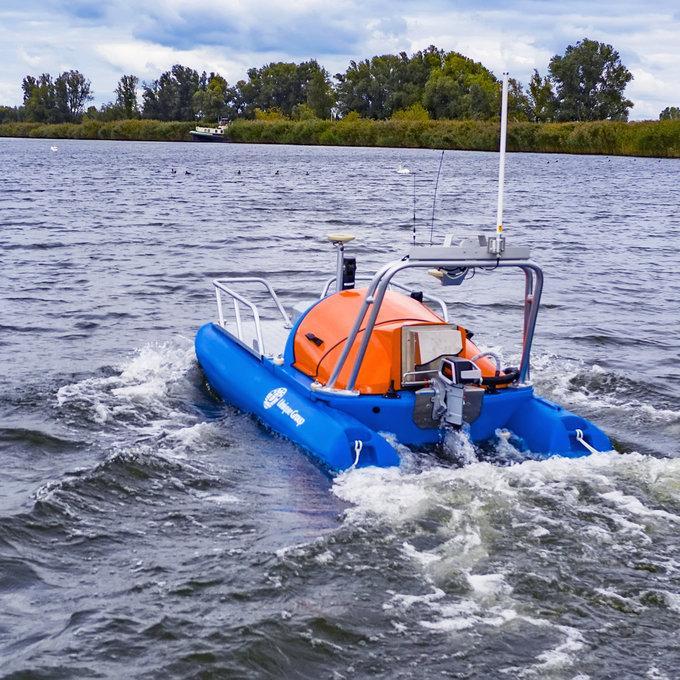

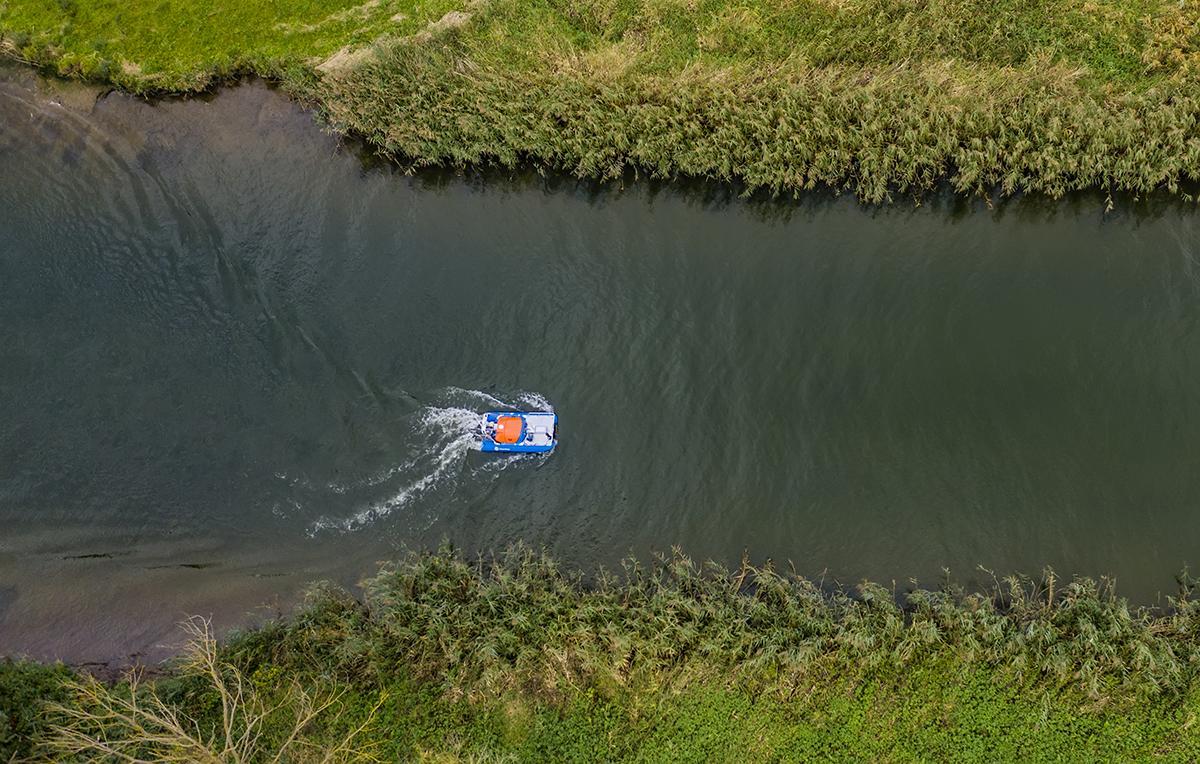

UG: Uni-Pact

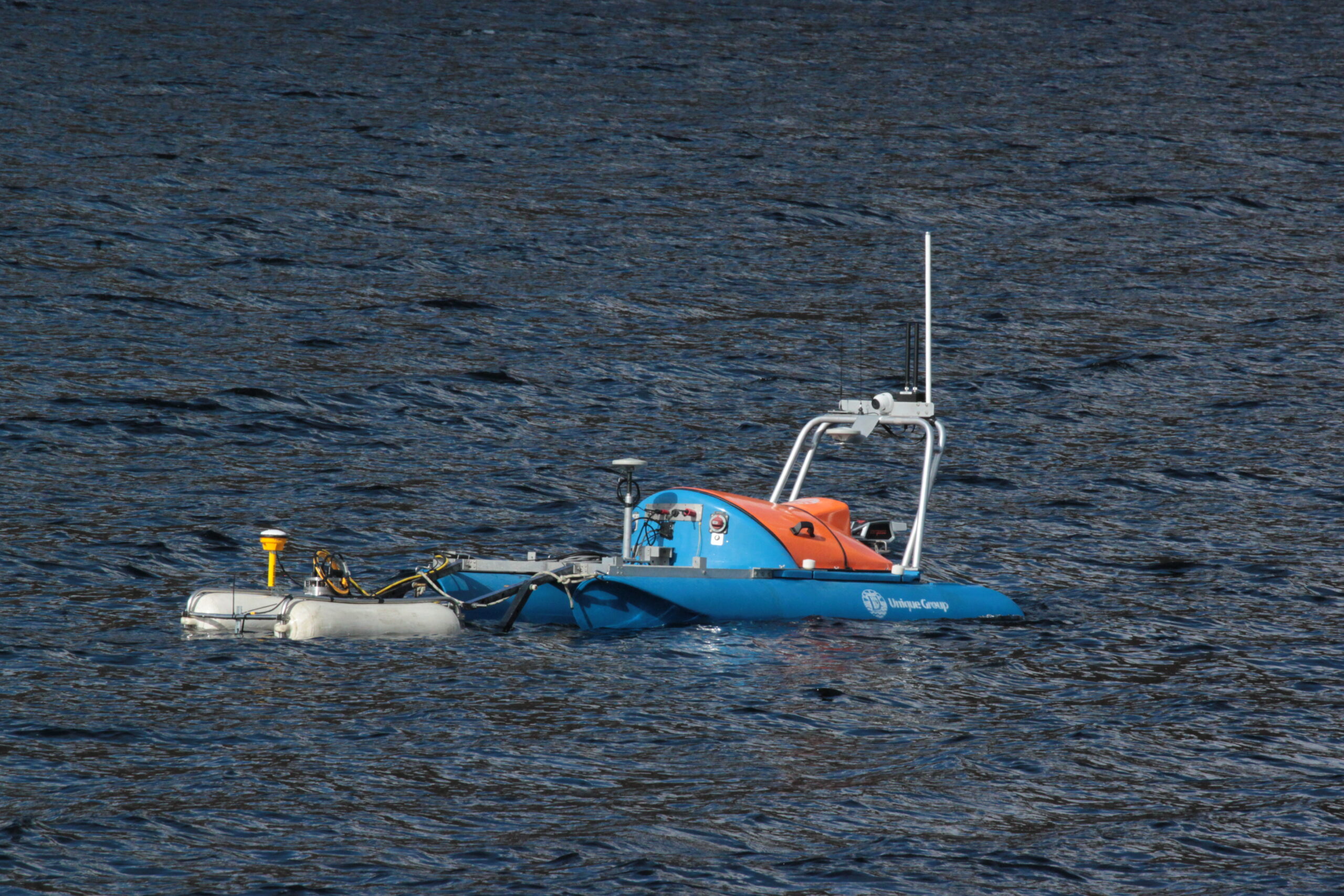

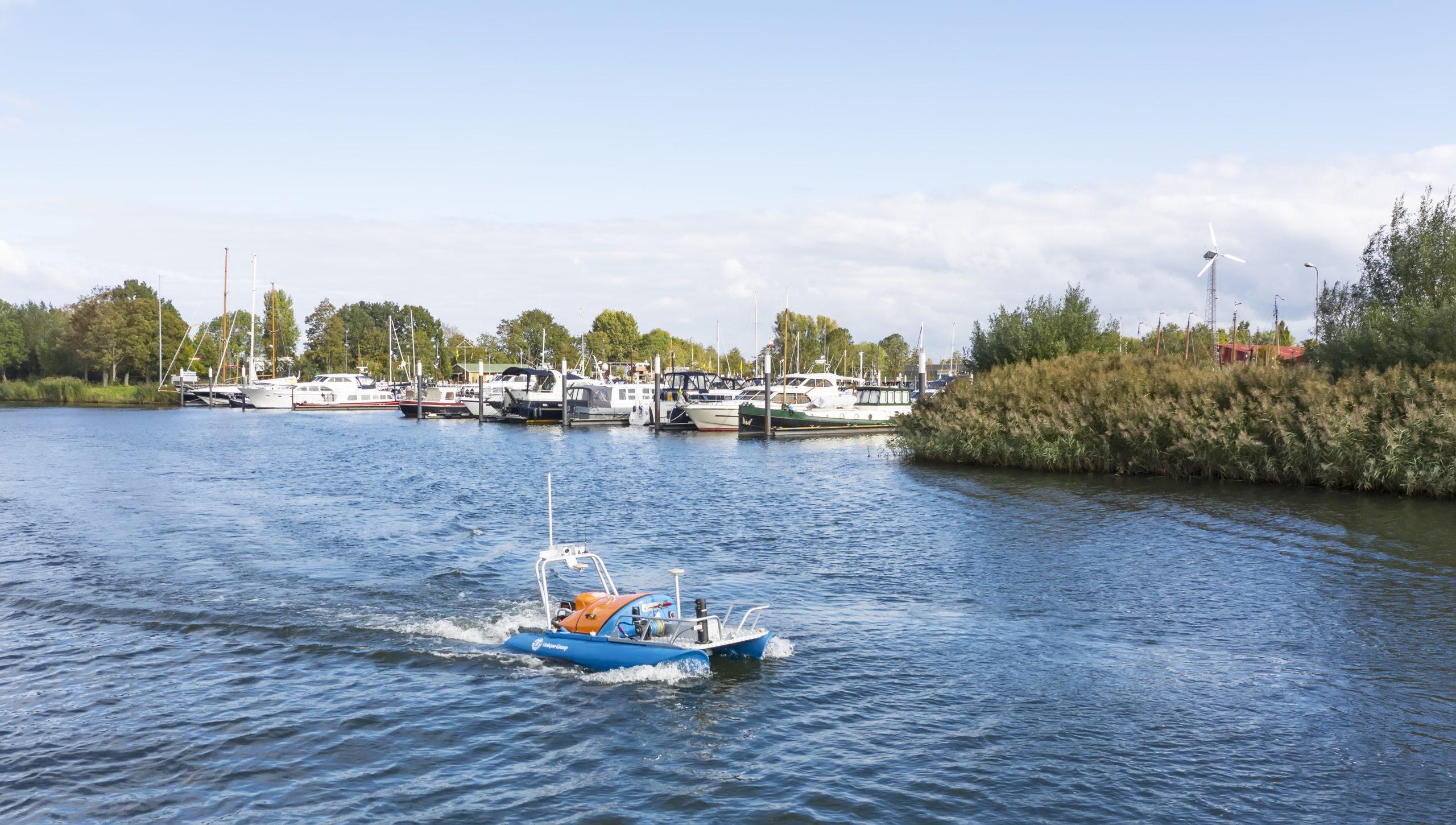

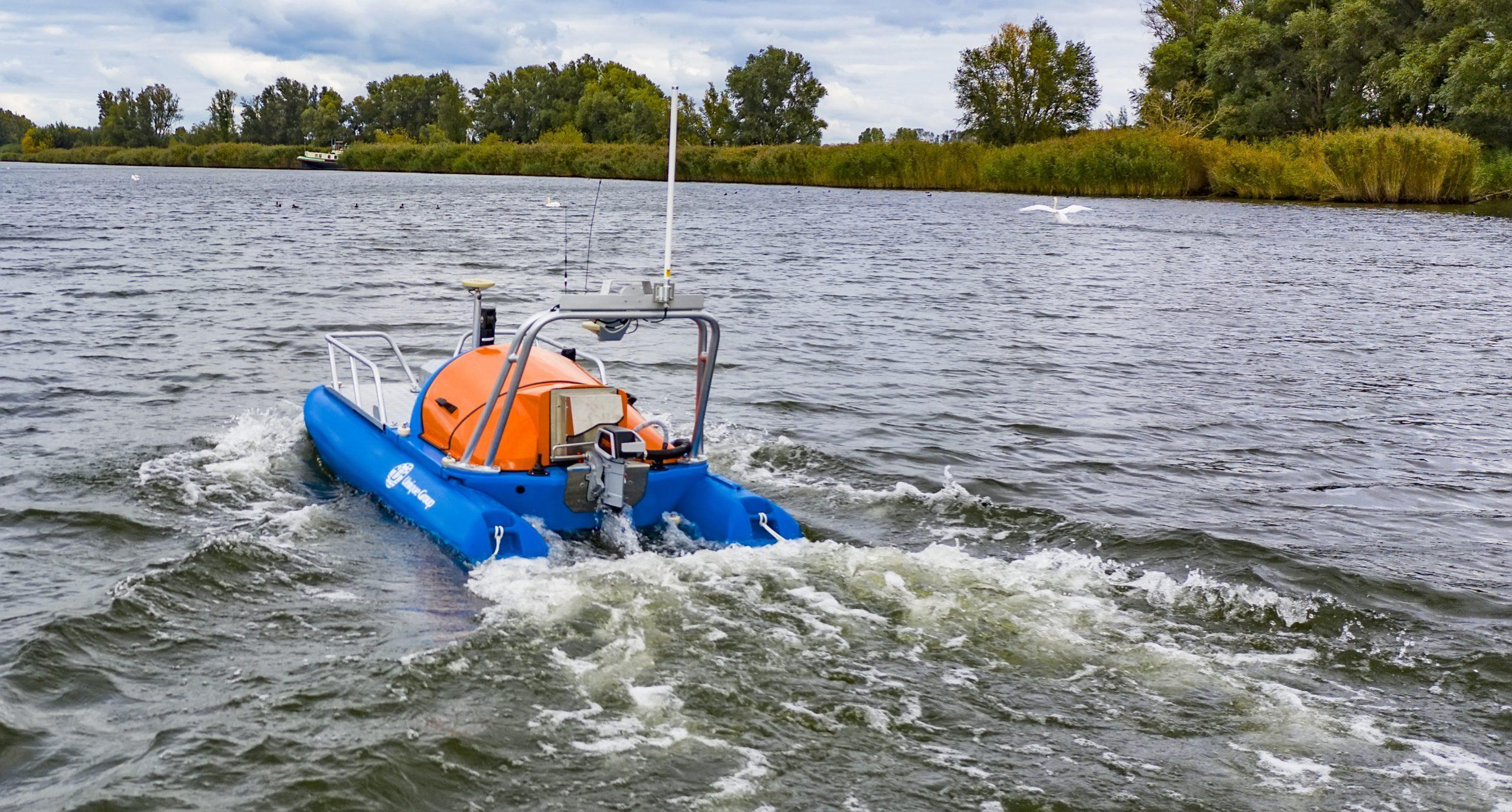

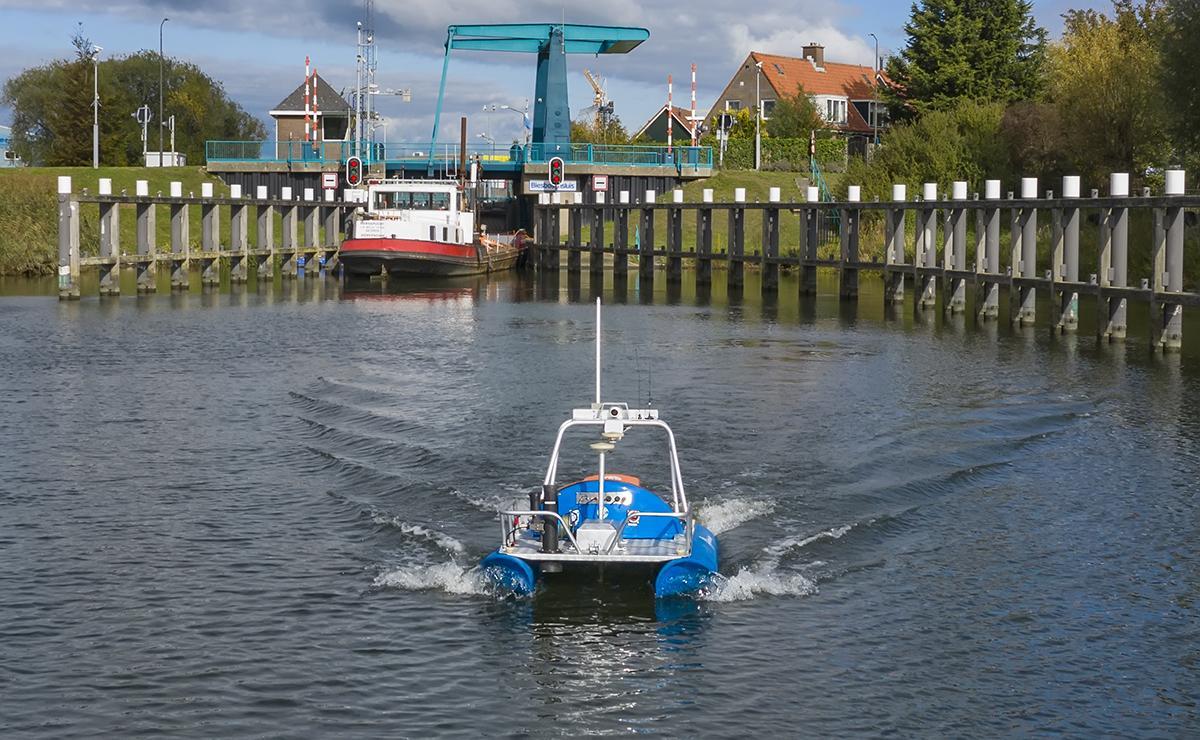

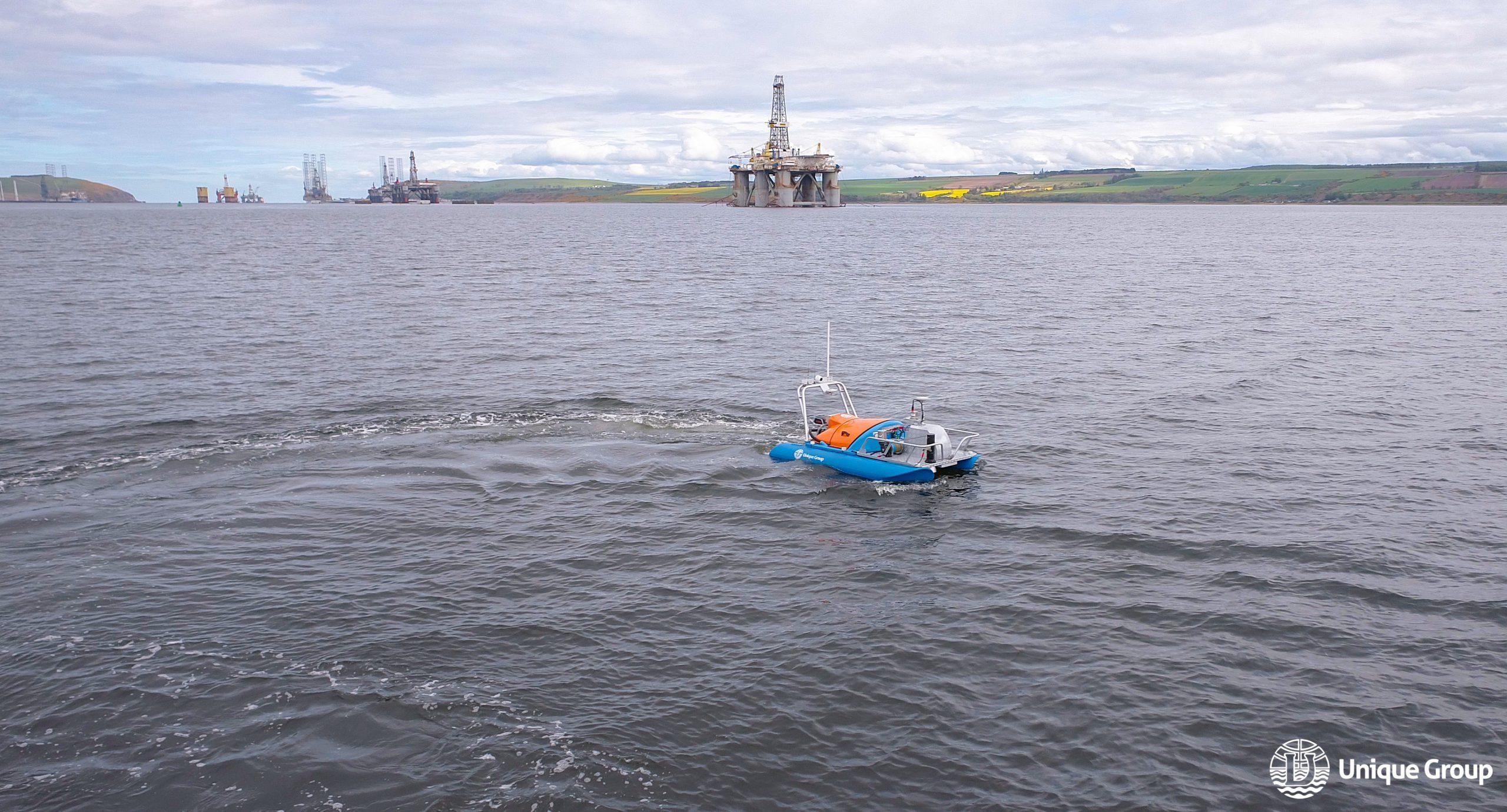

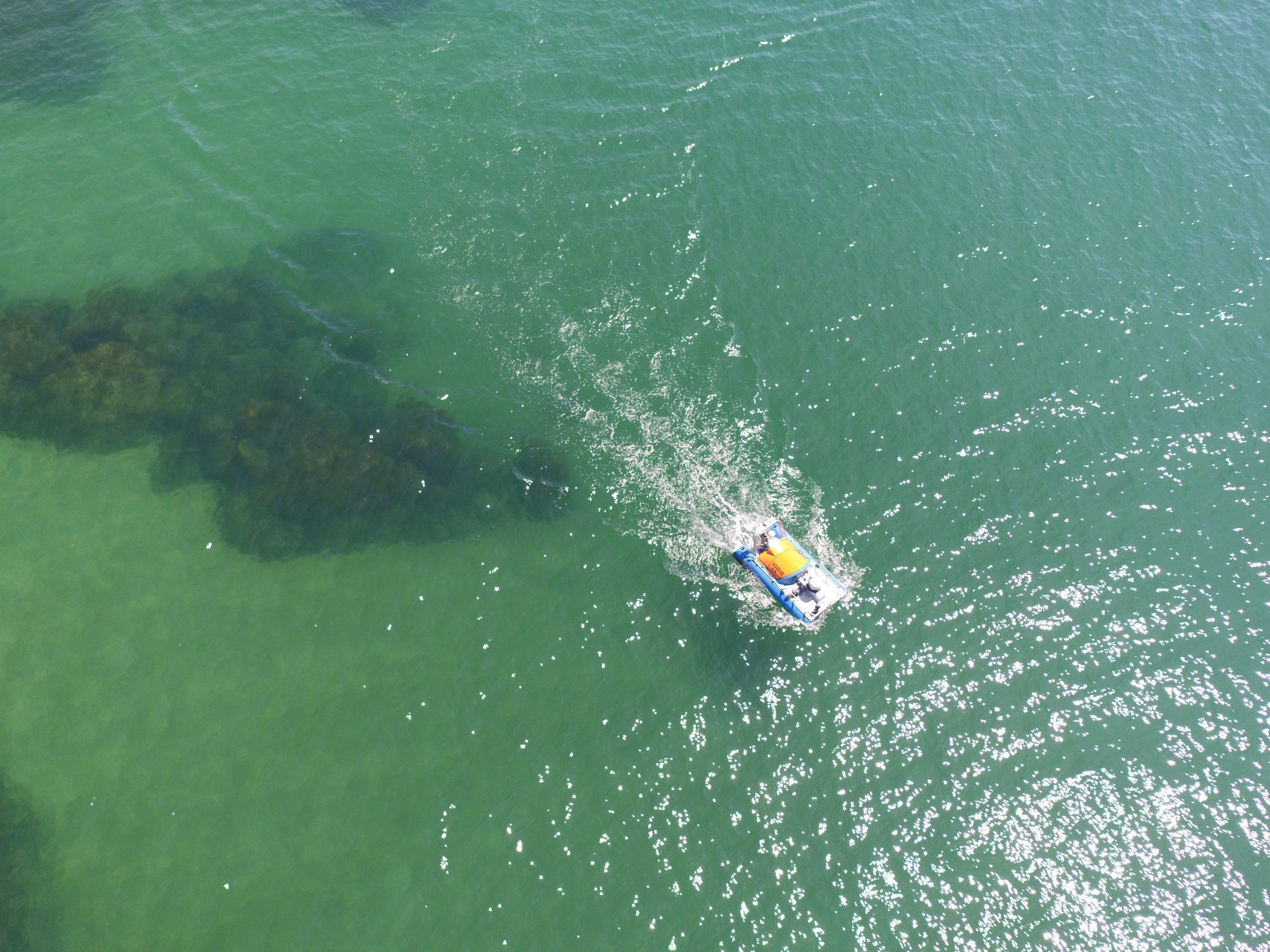

The Uni-Pact has been developed to complement larger survey vessels used for survey and support tasks where a smaller vehicle is better suited to missions, offering efficient bathymetry from an unmanned platform. Made of asymmetric tough moulded polyethylene catamaran hull and an alloy deck, the Uni-Pact is incredibly stable and versatile. Its ability to work in shallow coastal waters that cannot be accessed safely by manned survey vessels has proven its worth.
Features
Fully integrated and calibrated USV survey solution
Easy to mobilise and operate
Can be controlled manually or to follow pre-programmed routes that can be updated at any point through an easy PC based GUI
Reconfigurable payload pod allows for mounting of sonar or other sensors
Survey PC independent of Uni-pact autopilot and control PC
Commercial payloads to date include MBES, SBES, SBP, Hydropact pipetracker, FIGS CP system
Survey software agnostic, capable of use with Hypack, QINSy or Eiva etc
Up to 3 knots of survey speed
Specifications
| Availability |
|---|
Length: 3m (10’) | Beam: 1.6m | Draft: 0.45m | Weight of Base Boat: 412 kgs
Propulsion: 1 x 24VDC Electric engines (Torqeedo Cruise 2.ORS)
Remote Control: M.A.P Autopilot System
Data Telemetry for Remote Operation: 4G, Wi-Fi and Mesh Radio
Battery Pack: 1 x 13.25V | 180 Ah Li-ion | Endurance: 8 hours
Applications
Hydrographic Survey
Coastal and Harbour Monitoring
Habitat Mapping
Seabed Mapping and Classification
Data Harvesting
Survey of freshwater reservoirs where use of petrol and diesel engines is to be avoided
-
