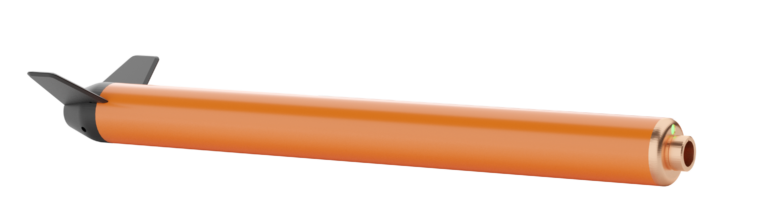

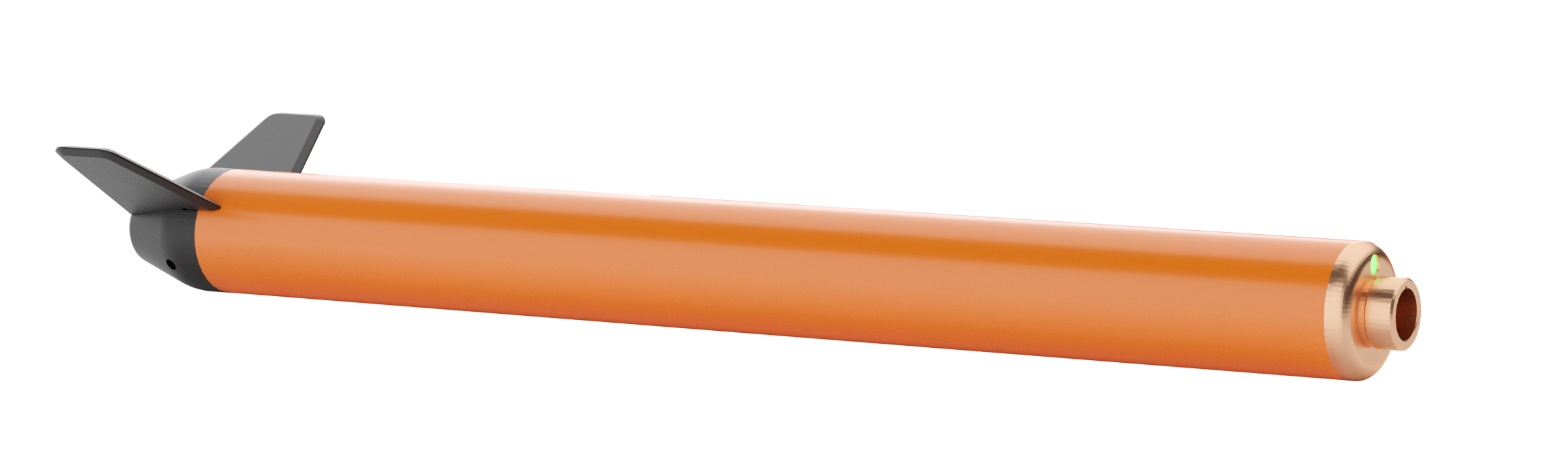

The Synapse magnetometer is an operationally flexible sensor that can be used independently or as part of a gradiometer array to obtain high quality data at up to 20Hz. The sensor consists of a  Rubidium optically-pumped physics package  that provides a resolution of 10 pT/rt-Hz. The Synapse can be integrated into an array of up to 30 nodes with automatic timing synchronisation. The are extremely lightweight at 3.5kg in air, with a low power consumption of 4.5W per sensor.

The Synapse can be hosted by sidescan sonars such as the Edgetech 4205, the 2050 DSS and due to its light weight and low power consumption we can also now integrate with the small lightweight 4125i.

Features

Performance
Operating Zones Worldwide.
Absolute Accuracy TBD
Sensor Sensitivity 0.01 nT (10 pT/ rt-Hz)
Resolution 0.001 nT
Dead Zone 1 Zone (+\- 6 degrees from center) Sensor can be easily rotated for worldwide operation
Sampling Rate Up to 20hz
Sensor Type Scalar (Rubidium optically-pumped)
Power Consumption 4.5 W per node 7 W with altimeter and IMU
Range 18,000 nT to 120,000 nT
Gradient Tolerance Over 10,000 nT/m
Depth Rating 1000m (1420 psi)
Interface USB or RS232
Power Supply 24 VDC (120-240 VAC compatible) (Acceptable range 9-30 VDC)



Magnetometer
Length 86 cm (33.75 in) 94 cm (37 in) with altimeter
Diameter 7.6 cm (3 in)
Weight in Air 3.5 kg (7.7 lbs) 4.7 kg (10.3 lbs) with altimeter
Weight in Water Neutral

Applications

UXO Surveys

Route surveys

Geophysical Surveys

Debris location
