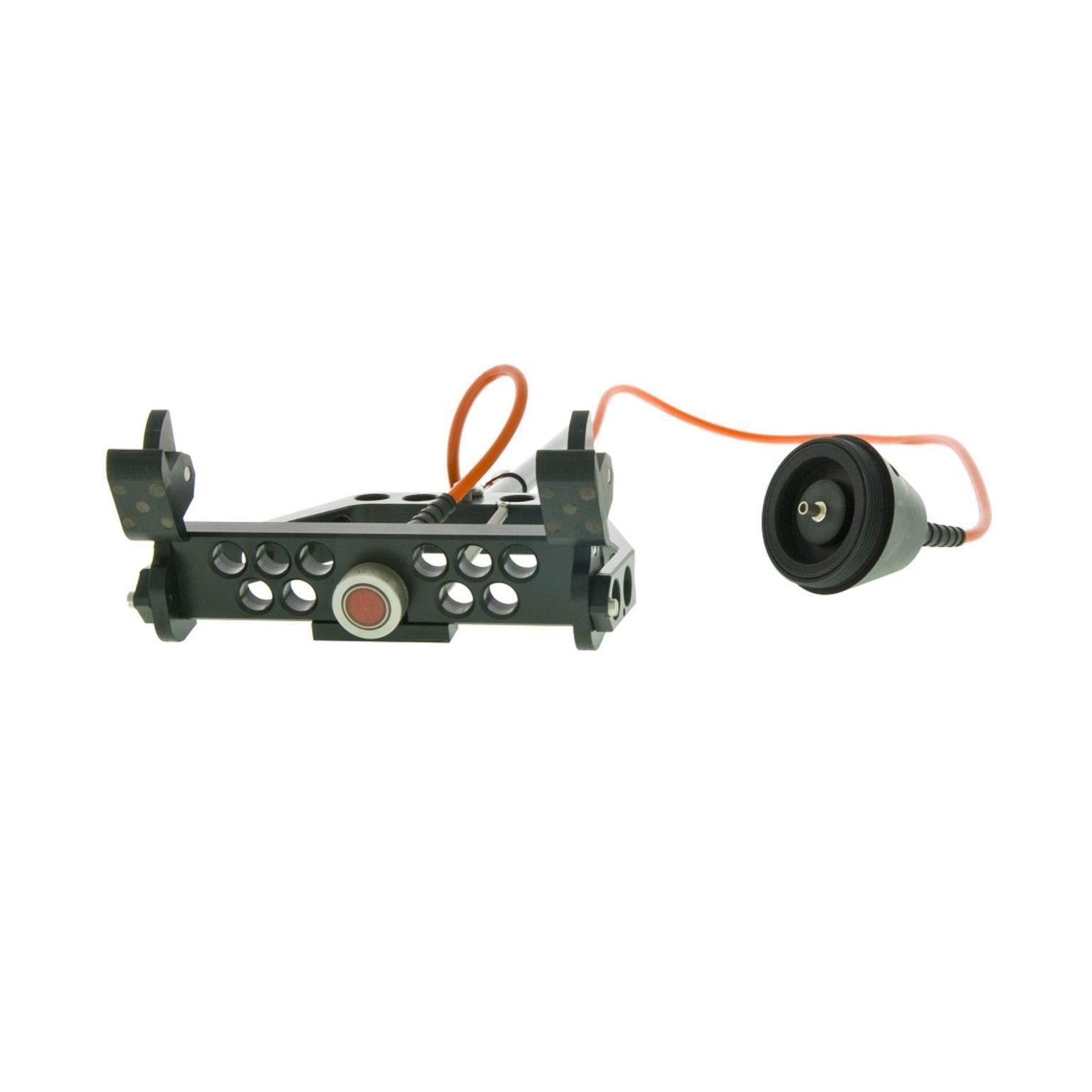

Cygnus S1: ROV Probe Handler for Ship Hull Inspection

Availability: Rental, Sale

The Cygnus S1 Probe Handler is designed for performing UT thickness surveys on ships hulls with an Observation or Light work class ROV. It is constructed from acetyl with stainless steel fixings keeping the overall weight down.

Features

Compact and simple device for performing UT thickness surveys.

Easy Maintenance with bolts accessible from the inside.

On contact with the hull plate two sets of magnets first grip the steel then as the ROV pushes forward the UT probe is allowed to tilt to align it to the hull surface placing the UT probe in the optimal position for measurement with the ROV pilot just having to maintain gentle forward thrust while the measurement is taken.

Specifications

Size: 175 x 150 x 85 mm (6.9” x 6” x 3.3”) excluding handle

Weight in air: 0.29 Kg (10 oz)

Depth Rating: 2000 msw

Material: Black Acetyl with Stainless Fixings

Probe Types: 2.25 MHz 13mm with Membrane (3.5 MHz & 5MHz at special request)

Applications

Suitable for conducting UT thickness survey on ship hulls with an observation or light work class ROV.
