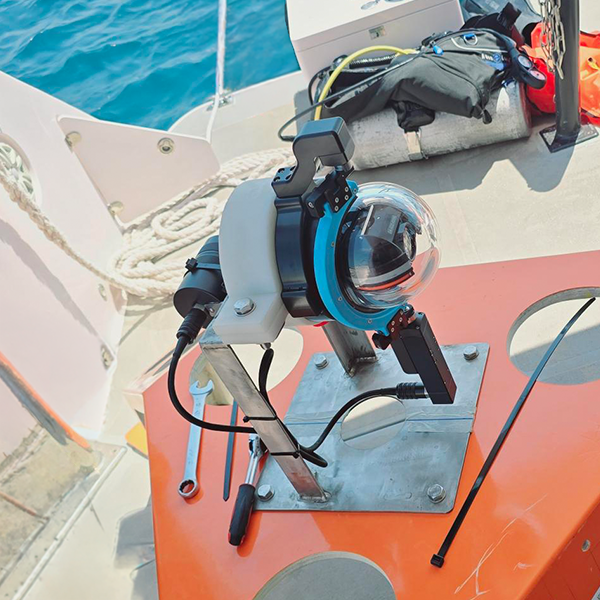

Uni-Cam – Self-Cleaning Underwater Camera System
The Uni-Cam is a self-cleaning underwater camera system developed by Unique Group for recording video and sensor data at selected coastal locations.
- High-definition underwater video recording with pan, tilt and zoom capability
- Self-cleaning hydro-wiper helps keep the optical window clear from bio-fouling, mud and deposits
Speak with our survey specialists to discuss your project requirements.
Available for Sale and Rental Worldwide.
The Uni-Cam is a self-cleaning underwater camera system developed by Unique Group for recording video and sensor data at selected coastal locations.
- High-definition underwater video recording with pan, tilt and zoom capability
- Self-cleaning hydro-wiper helps keep the optical window clear from bio-fouling, mud and deposits
Speak with our survey specialists to discuss your project requirements.
Features
High-definition PATZ underwater camera
Precision-machined glass omega dome housing
Self-cleaning hydro-wiper arrangement
Unique 230° optical viewing angle
10:1 optical zoom lens
Multi-standard video capability
Smooth belt-driven pan and tilt mechanism
Accurate and infinitely variable speed control for head movement
Self-contained and independently powered wiper assembly
Specifications
| Availability |
|---|
Focus Control: Front port to infinity wide angle; 800mm to infinity narrow angle
Zoom: 10x optical
Angle of View in Water: 5.3° to 50° diagonal, 4.7° to 45° horizontal, 3° to 29° vertical
Pan and Tilt: ±110° both, with 220° optical viewing angle
Water Depth: 4,500m
Horizontal Resolution: 800 TV lines per picture height
Video Resolution: 1920 × 1080
Power Input: Constant voltage 16–24VDC, 1A max
Video Output: HD Component Y/Pb/Pr, HD-SDI coax or fibre optic
Weight: 6.7kg in air, 3kg in water
Applications
Underwater video monitoring and recording
Coastal sensor and video data collection
Close-up underwater inspection
Standoff underwater viewing and inspection
Shore-powered underwater observation systems
