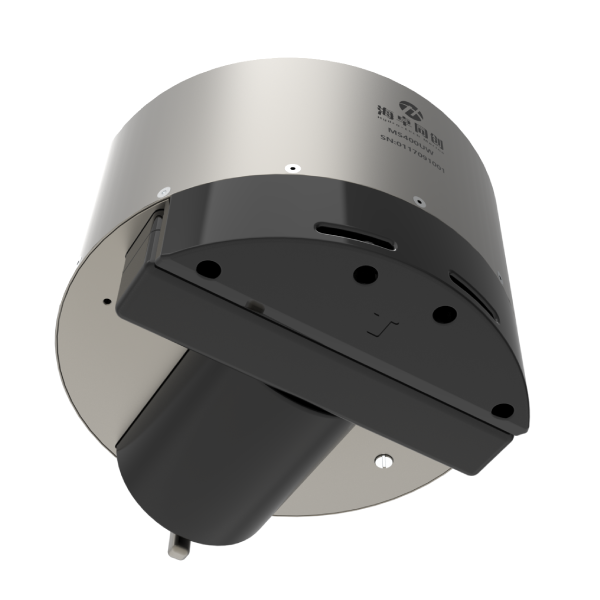

MS400UW Multibeam Echo Sounder for Hydrographic Surveys
The MS400UW Multibeam Echo Sounder is a compact wideband multibeam system designed for high-resolution hydrographic and underwater survey applications.
• High-resolution seabed mapping for shallow water surveys
• Compact and lightweight design for easy integration with USVs and survey platforms
• Reliable underwater terrain and structure detection capability
Speak with our hydrographic survey specialists to discuss your project requirements and system integration.
Available for Rental and Sale Worldwide
The MS400UW Multibeam Echo Sounder is a compact wideband multibeam system designed for high-resolution hydrographic and underwater survey applications.
• High-resolution seabed mapping for shallow water surveys
• Compact and lightweight design for easy integration with USVs and survey platforms
• Reliable underwater terrain and structure detection capability
Speak with our hydrographic survey specialists to discuss your project requirements and system integration.
Features
Selectable frequency operation (150–450kHz, 500–700kHz, 700–1000kHz)
Automated control of power, gain, pulse width, and signal mode
Compact and low power sonar design
Supports integration with USVs and underwater platforms
Multi-application survey capability
Real-time data visualization and terrain inspection support
Specifications
| Availability |
|---|
Operating Frequency: 150–450kHz / 500–700kHz / 700–1000kHz
Number of Beams: 512
Swath Coverage: Up to 140°
Depth Range: 0.2 – 350m
Depth Resolution: 0.75cm
Max Ping Rate: 60Hz
Pulse Width: 3µs – 1ms
Sonar Dimensions: Ø220mm × 184 × 95mm
Sonar Weight: 7.8kg
Refer to the Data Sheet for information
Applications
Inland waterway dredging monitoring
Inland reservoir bathymetric mapping
Lake ecological surveys
Hydraulic engineering site investigations
Underwater terrain inspection and mapping
Scientific underwater research applications
