UG: Uni-FlowX Controlled Flow Excavation System
The Uni-FlowX Controlled Flow Excavation system is a result of continually developed excavation technology over the last decade to produce the most robust, reliable and controllable seabed excavation system available on the market today. It offers several advantages over other dredging techniques.
Features
No physical contact needed with the seabed or seabed assets
No need to dispose soil
Real-time sonar imaging of the work site and progress
Continuous variable power
Utilisation from small, economic vessels
Effective on a wide range of substrates, including sand, rock dump and clays.
Specifications

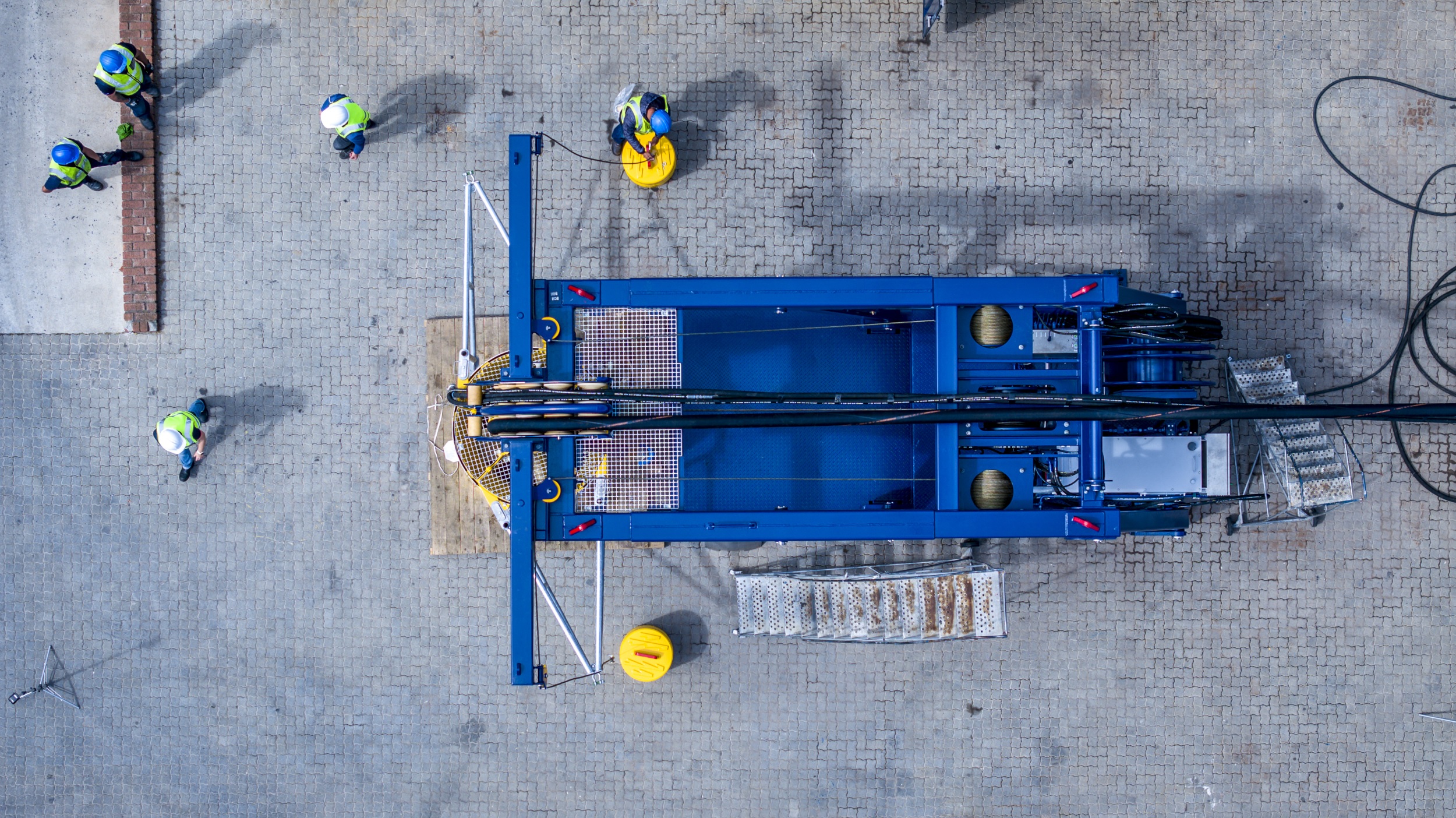

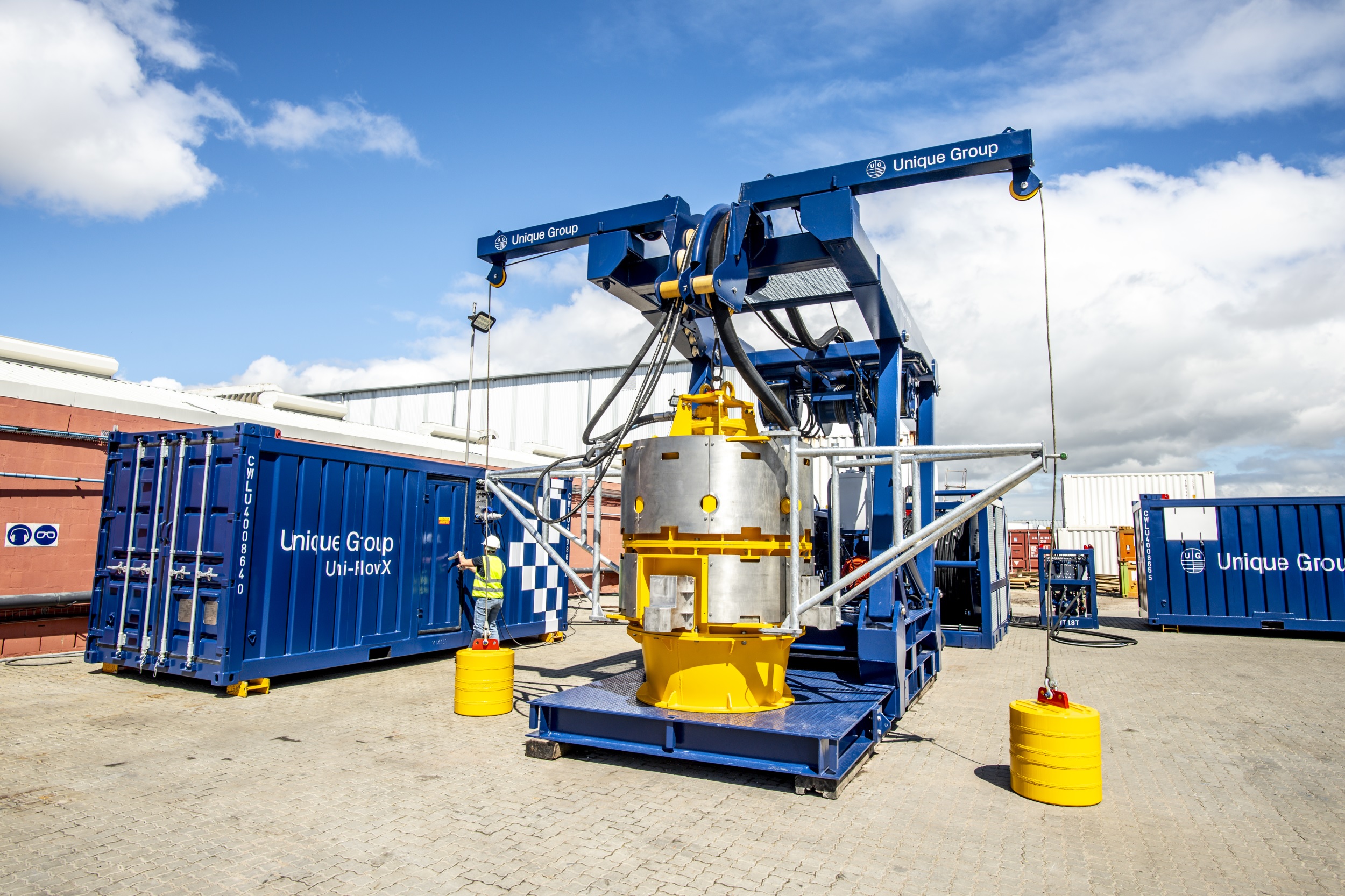

Includes a LARS with a built-in 37 kW HPU, main lift winch, 2 clump weight winches and data umbilical reel
Dimension: 7300x24500x3870 (mm) in retracted position excl. top arms. Its Max Gross Weight: 13 Tons.
Hydraulic Spooler with dimension: 2940 x 2290 x 2859 (mm) and Max Gross Weight: 9.5 Tons
Hydraulic Power Unit with dimension: 1705 x 682 x 1626 (mm) and Max Gross Weight: 1.7 Tons. It comes with a motor power rated to 37 kW.
Water Spooler with Dimension: 2940 x 2290 x 2572 (mm) and Max Gross Weight: 9.5 Tons
Applications
Debris and rock dump removal
Levelling of seabed
De-burial of underwater pipelines or cables
-
