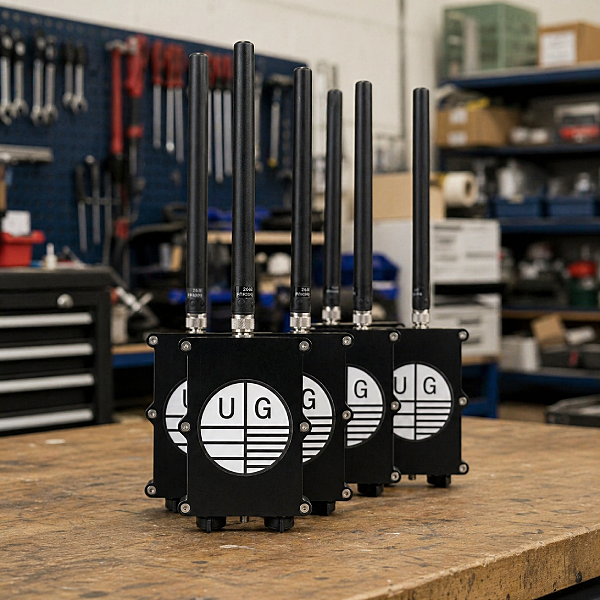

Uni-Mesh XR – Offshore IP Mesh Radio System
Offshore IP Mesh Radio System for Long-Range Communication
Uni-Mesh XR is a full IP-capable wireless mesh radio system designed for offshore, marine, and vessel-to-vessel communication applications.
• Self-forming, self-healing mesh network
• Long-range communication up to 30 km
• High data throughput up to 87 Mb/s
• Supports real-time data, video streaming, and telemetry
Speak with our communication specialists to discuss your offshore connectivity requirements.
Offshore IP Mesh Radio System for Long-Range Communication
Uni-Mesh XR is a full IP-capable wireless mesh radio system designed for offshore, marine, and vessel-to-vessel communication applications.
• Self-forming, self-healing mesh network
• Long-range communication up to 30 km
• High data throughput up to 87 Mb/s
• Supports real-time data, video streaming, and telemetry
Speak with our communication specialists to discuss your offshore connectivity requirements.
Features
COFDM, MeshUltra™ MANET waveform for excellent NLOS & multipath performance
Compact and Heat Sink enclosure for outdoor use
High throughput up to 87 Mb/s (best in the market)
Fully integrated & calibrated connectivity solution
Can be configured using ethernet port Extremely stable connection
IP68 Enclosure perfect for marine and subsea environments
Up to 144 nodes in a Mesh
Interfaces: Gigabit Ethernet, RS-232, USB-A/USB-C, Analogue Audio
Encoder Compatible: For SDI & Composite video
IP Video: RTSP, TCP or UDP
Specifications
| Availability |
|---|
Dimensions: 180 × 74 × 46 mm
Antennas: 2×2 MIMO
Max Number of Nodes: Up to 144
Modulation: MESH, COFDM, NLOS, MeshUltra™ MANET
Carrier Modulation: QPSK / 16QAM (adaptive)
Frequency Band: S-Band (1.98 – 2.70 GHz)
Range: 30 km LOS
Output Power: 2W; +33 to 0 dBm in 0.25 dB steps (±1 dB)
Mesh Capacity: Up to 87 Mb/s
Operating Temperature: −20 °C to +55 °C
Environmental Rating: IP68
For full technical specifications, please refer to the product data sheet.
Applications
Vessel-to-vessel communication
Platform-to-vessel connectivity
Offshore inspection data transmission
Survey and telemetry operations
Real-time video and data streaming
Multi-node offshore communication networks
