Survey Equipment

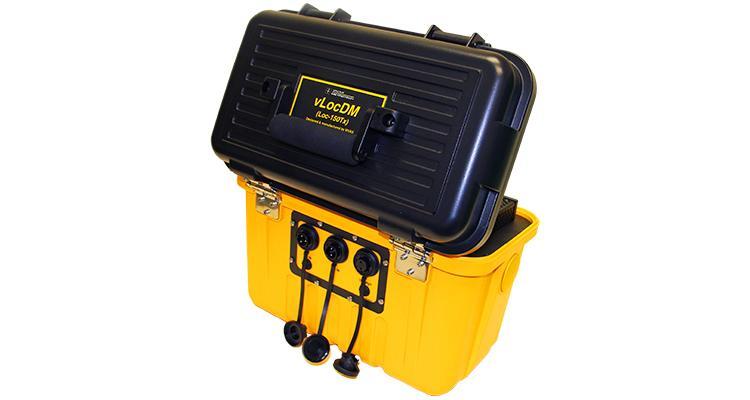

Vivax Metrotech Loc-150Tx: 150-Watt DM Transmitter
Availability:
Ex-Rental Sale, Rental
The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.
Features
Powered by AC/DC external power source
Over voltage, power and temperature alarms
High-impact ABS plastic housing
4A output current
Specifications
| Availability |
|---|
Weight: 12.5kg
Dimensions: 425mm x 262mm x 328mm
Display type: Monochrome dot matrix display 60mm x 32mm
Environmental: IP54 and NEMA 4
Temperature(Operating): -20°C to 50°C
Applications
Identify the location of coating defects, faulty insulation joints, and cable faults
Can also operate as a long-line pipeline locator
Used on longline pipeline, telephone, and fiber
