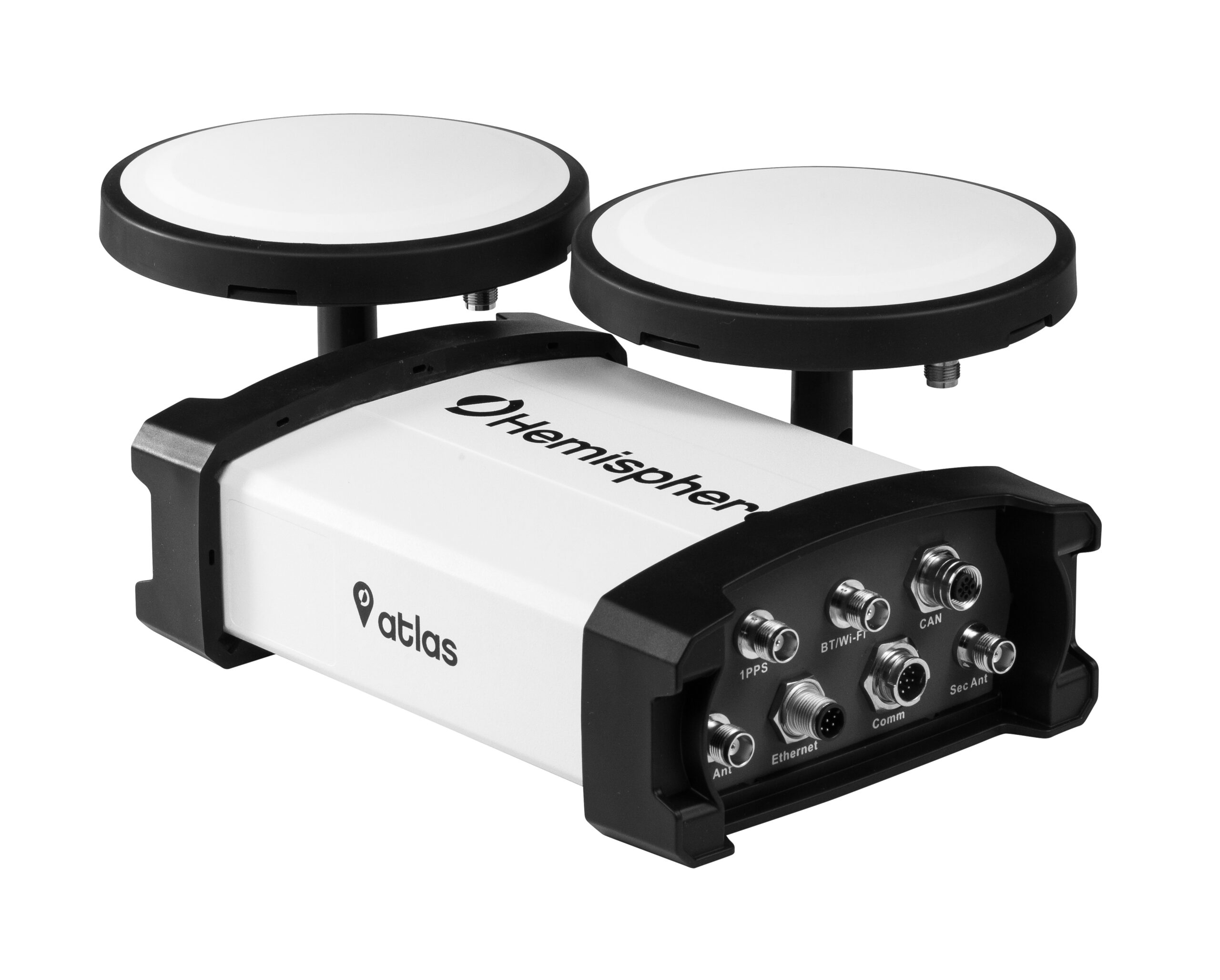

Hemisphere® Vector™ VS1000: GNSS Receiver
The Vector VS1000 is Hemisphere GNSS’ premiere multiGNSS, multi-frequency receiver designed specifically for the professional marine market. Providing precise heading, Athena RTK positioning, and full Atlas capability, its rugged design is compliant to 60529:2013 IP67 and IEC 60945:2002 8.7 standards.
The VS1000 supports antenna separations up to 10 meters, offering heading accuracy to 0.01 degrees RMS in addition to RTK position accuracy and full support for Hemisphere GNSS’ Atlas worldwide L-band corrections.
Features
Athena™ RTK, Atlas® L-band, Beacon and SBAS capable
Extremely accurate heading to 0.01 Degree RMS
Multi-frequency GPS/GLONASS/BeiDou/Galileo RTK capable
Supports Ethernet, CAN, Serial, USB, Bluetooth and Wifi
Maintain heading and position lock when more of the sky is blocked
Specifications
| Availability |
|---|
Receiver Type: Vector GNSS RTK, 1059 channels
Supported Signals: GPS, GLONASS, BeiDou, Galileo, Atlas 3
Sensitivity & Accuracy: -142 dBm GPS sensitivity, 20 ns accuracy
Update Rate: 10 Hz standard, 20 Hz optional
Startup Times: Cold 60 s, Warm 30 s, Hot 10 s (typical)
Heading Fix: 10 s (valid position)
Performance Limits: Max speed 1,850 kph (999 kts); max altitude 18,000 m (59,055 ft)
Connectivity: Antenna input impedance 50 Ω
Differential Options: SBAS, Atlas (L-band), RTK
Applications
Designed for marine and land applications.
Used in surveying projects
-
Teledyne Meridian Surveyor: Gyrocompass
Survey Equipment -
Exail Quadrans IMO Grade Compass and Attitude Reference System
Survey Equipment -
Hemisphere® S631: Multi-GNSS Smart Antenna
Survey Equipment -
Exail (iXblue) Octans Surface: Gyrocompass and Motion Sensor
Survey Equipment -
Trimble SPS855/852: GNSS Modular Receiver
Survey Equipment -
Applanix POS MV™ OceanMaster: Inertial Navigation System
Survey Equipment -
Trimble® Zephyr 2 Geodetic: Antenna
Survey Equipment -

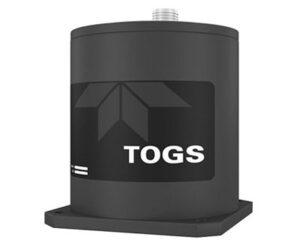

Teledyne CDL TOGS: Fibre Optic Gyro System
