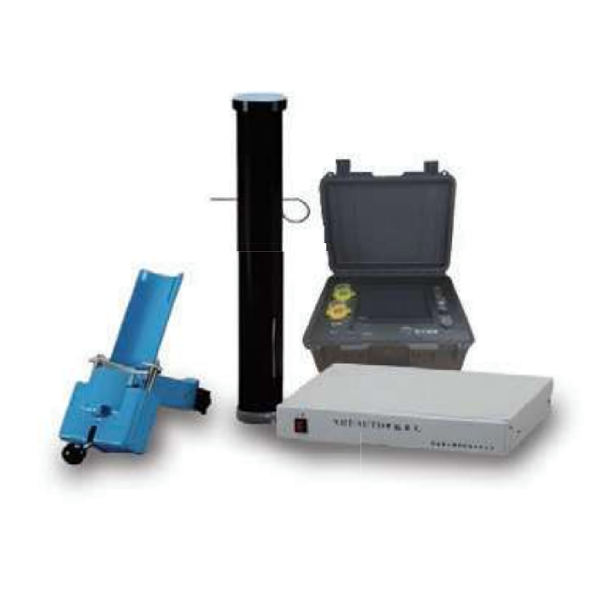

HT-XCTD Expendable Conductivity Temperature Depth System
The HT-XCTD Expendable Conductivity Temperature Depth System is a compact oceanographic profiling solution designed for real-time seawater conductivity, temperature, and depth measurements.
- Real-time conductivity, temperature, and depth profiling up to 1000m
- High-speed deployment capability at vessel speeds up to 12 knots
- Lightweight portable system for efficient one-person deployment operations
Speak with our oceanographic survey specialists to discuss your requirements.
Available for Rental and Sale Worldwide
The HT-XCTD Expendable Conductivity Temperature Depth System is a compact oceanographic profiling solution designed for real-time seawater conductivity, temperature, and depth measurements.
- Real-time conductivity, temperature, and depth profiling up to 1000m
- High-speed deployment capability at vessel speeds up to 12 knots
- Lightweight portable system for efficient one-person deployment operations
Speak with our oceanographic survey specialists to discuss your requirements.
Features
High-precision fast-response sensors
Highly sensitive inductive conductivity and pressure sensors
Real-time long-distance seawater data transmission technology
Stable data transmission during deployment at 12 knots
Automated probe calibration technology for improved accuracy
Advanced low power consumption technology
Long battery life of not less than 4 years
Compact launcher and deck unit for easy operation
Specifications
| Availability |
|---|
Measurement Parameters: Conductivity, Temperature, Depth
Conductivity Range: 0–70mS/cm
Conductivity Accuracy: ±0.03mS/cm
Temperature Range: -5°C to 40°C
Temperature Accuracy: ±0.01°C
Operating Depth: 1000m
Maximum Speed: 12 knots
Probe Size: Ø480mm × 59mm
Probe Weight: 1.75kg
Refer to datasheet for detailed technical specifications.
Applications
Oceanographic conductivity and temperature profiling
Sound velocity profile (SVP) data collection
Offshore environmental monitoring surveys
Large-area marine survey operations
Seawater column analysis and research
Hydrographic and oceanographic survey support
