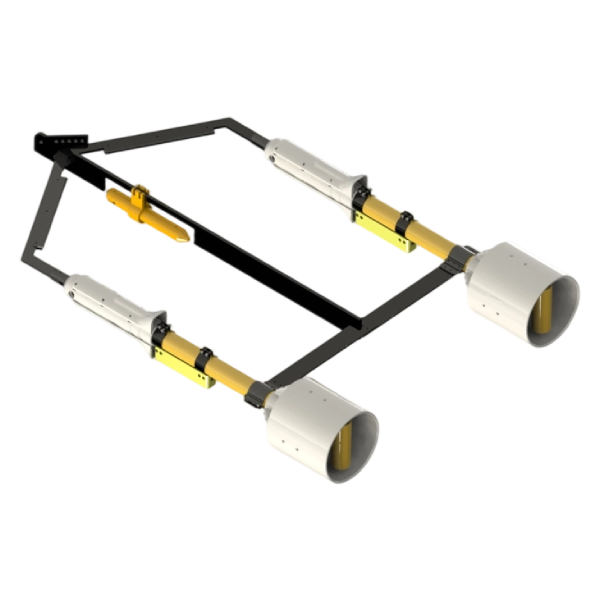

M-SV02 Transverse Gradient Magnetometer
The M-SV02 Transverse Gradient Magnetometer is an advanced cesium optically pumped magnetometer system designed for precise magnetic anomaly detection and reduced environmental noise interference.
• Enhanced target detection with transverse magnetic gradient measurement
• Reduced external noise interference for improved survey accuracy
• High-resolution magnetic data for detailed investigations
• Accurate positioning with integrated depth sensor and altimeter support
Speak with our survey specialists to discuss your magnetometer survey requirements and deployment options.
Available for rental and sale worldwide.
The M-SV02 Transverse Gradient Magnetometer is an advanced cesium optically pumped magnetometer system designed for precise magnetic anomaly detection and reduced environmental noise interference.
• Enhanced target detection with transverse magnetic gradient measurement
• Reduced external noise interference for improved survey accuracy
• High-resolution magnetic data for detailed investigations
• Accurate positioning with integrated depth sensor and altimeter support
Speak with our survey specialists to discuss your magnetometer survey requirements and deployment options.
Features
Measures subtle spatial magnetic field variations
High-resolution detection of minute magnetic anomalies
Noise reduction capability through differential magnetic field measurements
Strong anti-interference performance against electromagnetic disturbances
Self-oscillating cesium optical pumping principle
Provides spatial variation data for in-depth magnetic field analysis
Specifications
| Availability |
|---|
Measurement Range: 19,500 – 100,500 nT
Noise Level: < 0.01 nT
Maximum Sampling Rate: 50 Hz
Heading Error: < 0.25 nT
Output: RS-232 cascaded data stream
Power Supply: 24–32 VDC or 220 VAC
Tow Cable Diameter: 12 mm
Tow Cable Length Options: 100m, 150m, 200m
Waterproof Rating: Operational up to 4,000 psi
Operating Temperature: -35°C to +50°C
Refer to datasheet for detailed technical specifications.
Applications
Geological exploration surveys
Archaeological investigations
Unexploded ordnance (UXO) detection
Offshore magnetic anomaly surveys
Subsea target detection and positioning
Environmental and geophysical survey operations
