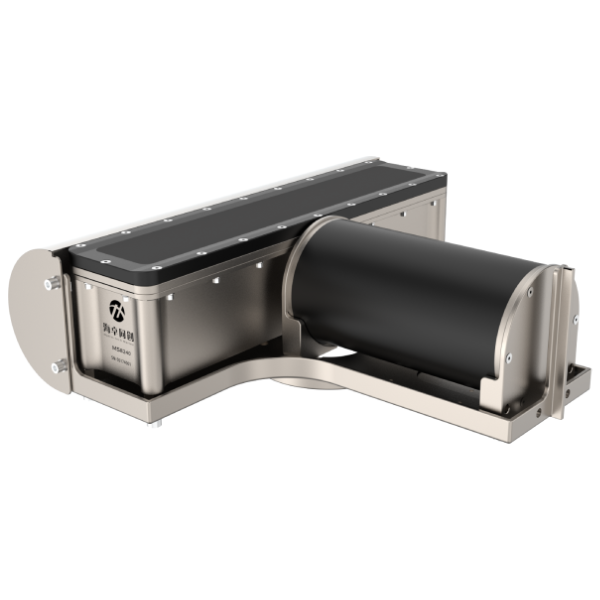

MS8240 Multibeam Echo Sounder
The MS8240 Multibeam Echo Sounder is a high-frequency shallow water mapping system designed for hydrographic, offshore, and marine engineering surveys.
• High-resolution seabed imaging for offshore and hydrographic surveys
• Wide swath coverage for efficient survey operations
• Dual sonar head configuration option for advanced survey capability
• Reliable performance for marine construction and inspection applications
Speak with our hydrographic survey specialists to discuss your offshore survey requirements and system integration.
Available for Sale and Rental Worldwide
The MS8240 Multibeam Echo Sounder is a high-frequency shallow water mapping system designed for hydrographic, offshore, and marine engineering surveys.
• High-resolution seabed imaging for offshore and hydrographic surveys
• Wide swath coverage for efficient survey operations
• Dual sonar head configuration option for advanced survey capability
• Reliable performance for marine construction and inspection applications
Speak with our hydrographic survey specialists to discuss your offshore survey requirements and system integration.
Features
Selectable frequency operation with multi-frequency support
Automated control of gain, pulse width, and signal parameters
Dual sonar head survey configuration option
Supports high-resolution shallow water mapping
Real-time data visualization and monitoring capability
Designed for multi-application offshore survey operations
Specifications
| Availability |
|---|
Sonar Dimensions: 482 × 185 × 75mm
Sonar Weight: 25kg
Operating Frequency: 150–450kHz / 550–850kHz
Number of Beams: 1024
Swath Coverage: Up to 140°
Depth Range: 0.2 – 350m
Depth Resolution: 0.75cm
Max Ping Rate: 60Hz
Pulse Width: 3µs – 1ms
Refer to the Data Sheet for in-depth specification
Applications
Waterway dredging operations
Offshore engineering and marine construction surveys
Marine wind power foundation inspection
Oil and gas pipeline inspection
Quay wall and underwater structure surveys
Wreck and underwater object detection
