Seafloor Systems: Echoboat 160
Seafloor Systems: Echoboat 160
Unmanned Surface Vessels, Survey Equipment

Seafloor Systems: Echoboat 160

Availability:

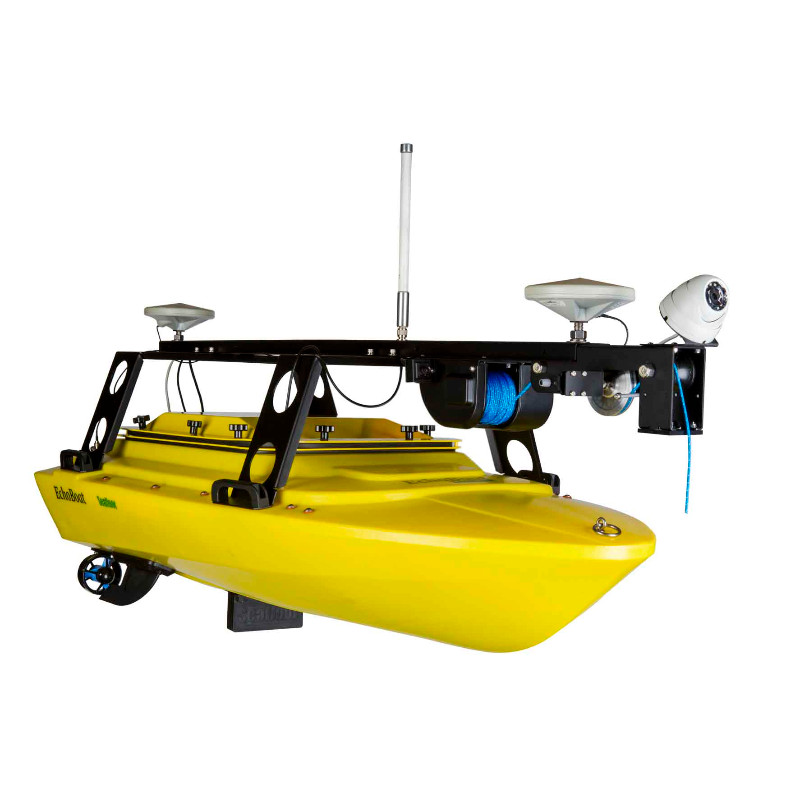

The EchoBoat-160 USV is a purpose-built remote survey platform for hydrographic data collection. With true one-switch startup, the nimble vessel accomplishes the same results demanded of large,
crewed boats more efficiently and at a fraction of the cost. Like its renowned predecessors, the fifth generation EchoBoat-160 integrates professional-grade sensor suites in a compact package
to navigate challenging bodies of water by remote control or autonomous wayfinding. Perform hydrographic surveys remotely, safely, and confidently with this meticulously engineered uncrewed
surface vessel.

With an integrated INS and a sound velocity sensor, the Seafloor SeaRay is a multibeam echosounder developed for use on small USV’s. With a swath coverage of up to 130 degrees, 256 receive beams of 1.45 x 1 degree beam width, the SeaRAY  is a very capable survey tool in a small package.

Features

Fully integrated and calibrated USV survey solution

Easy to mobilise and operate

Can be controlled manually or to follow pre-programmed routes that can be updated at any point through an easy PC based GUI

Up to 3 knots of survey speed

Specifications

Availability

Length: 1.7 m (10’)

Weight in air : payload dependent, up to 77.5 kg

Max Survey Speed: 3 knots

Battery life – payload dependent up to 8 hours

Remote range: Up to 2 km



Applications

Hydrographic Survey

Inland waterways

Survey of freshwater reservoirs where use of petrol and diesel engines is to be avoided.
