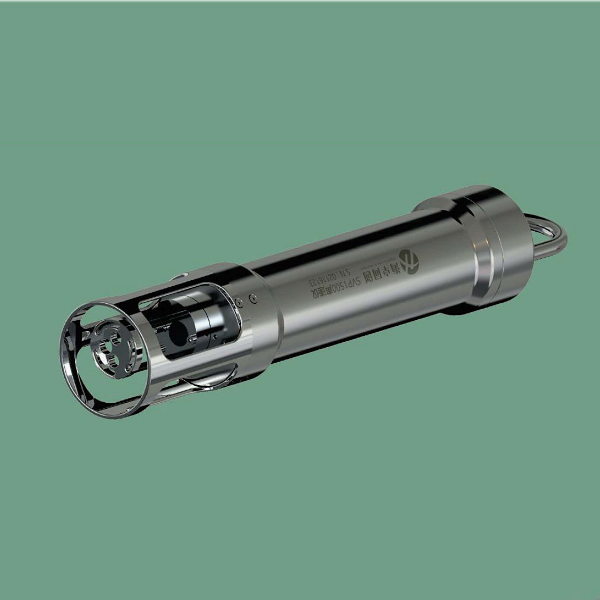

SVP1500 Sound Velocity Profiler
The SVP1500 Sound Velocity Profiler is a high-accuracy oceanographic instrument designed for sound velocity measurement and underwater survey applications.
- High-accuracy sound velocity measurement up to 0.05m/s
- High sampling rate up to 30Hz for efficient data collection
- Long working hours with built-in lithium battery system
Speak with our survey specialists to discuss your project requirements.
Available for Rental and Sale Worldwide
The SVP1500 Sound Velocity Profiler is a high-accuracy oceanographic instrument designed for sound velocity measurement and underwater survey applications.
- High-accuracy sound velocity measurement up to 0.05m/s
- High sampling rate up to 30Hz for efficient data collection
- Long working hours with built-in lithium battery system
Speak with our survey specialists to discuss your project requirements.
Features
Time-of-flight sound velocity measurement technology
High-precision pressure sensor integration
Built-in high-performance lithium battery
Internal 16GB storage supporting over 4000 hours of data storage
High sampling rate with output up to 30Hz
Compact stainless steel housing for marine operations
Easy deployment and maintenance
Specifications
| Availability |
|---|
Sound Velocity Range: 1400m/s – 1600m/s
Sound Frequency: 2MHz
Sampling Rate: 1–30Hz
Temperature Range: 0–40°C
Temperature Accuracy: ±0.05°C
Depth Resolution: 0.01m
Depth Accuracy: ±0.15m
Maximum Working Depth: 300m
Battery Life: 8 hours
Refer to datasheet for detailed technical specifications.
Applications
Single beam surveying
Multibeam surveying
Acoustic positioning operations
Ocean investigation and research
Offshore oil exploration surveys
Underwater terrain mapping
