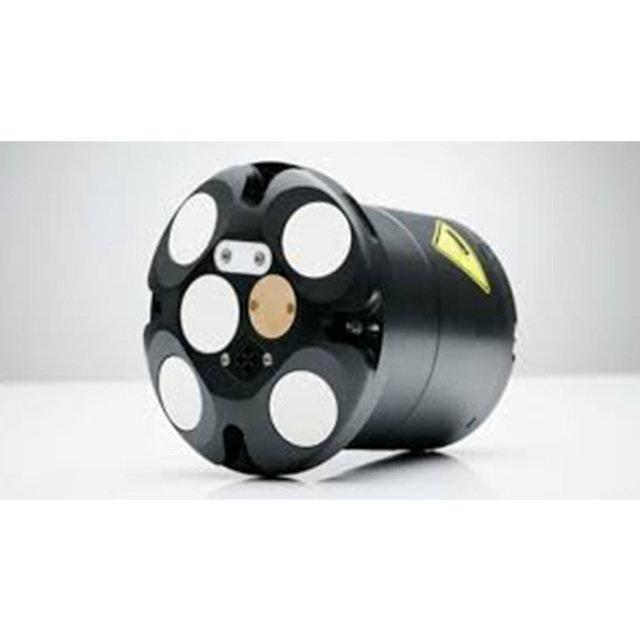

Nortek Signature 500 & 1000: Current Profiler

Nortek Signature 500 & 1000: Current Profiler

Survey Equipment

Nortek Signature 500 & 1000: Current Profiler

Availability: Sale

Download Data Sheet

Download Data Sheet

The Signature 500 ADCP is designed for flexibility and it measures current profiles at up to 8 Hz sampling frequency. The Signature 1000 ADCP is the optimal tool for turbulence measurements, with a maximum sampling frequency of 16 Hz it gives the scientific community an unprecedented opportunity to study a part of the turbulence spectrum that has never been accessible before.

Features

Five beams for mean currents and turbulence

Wave height and direction

Very small size and weight

Specifications

Signature 500 maximum profiling range:60 m (burst mode), 70 m (average mode)

Signature 500 cell size: 0.5-4 m

Signature 500 minimum blanking: 0.5 m

Singanture 1000 maximum profiling range ‘’25 m (burst mode), 30 m (average mode)’’

Signature 1000 cell size: 0.2-2 m

Applications

Turbulence and sediment transport studies

3D profiling using a wire walker

Surf zone dynamics and studies of tidal currents

Fine-scale mixing studies

Vessel-mounted coastal surveying
