Tritech: Micron Gemini
Availability:
Sale

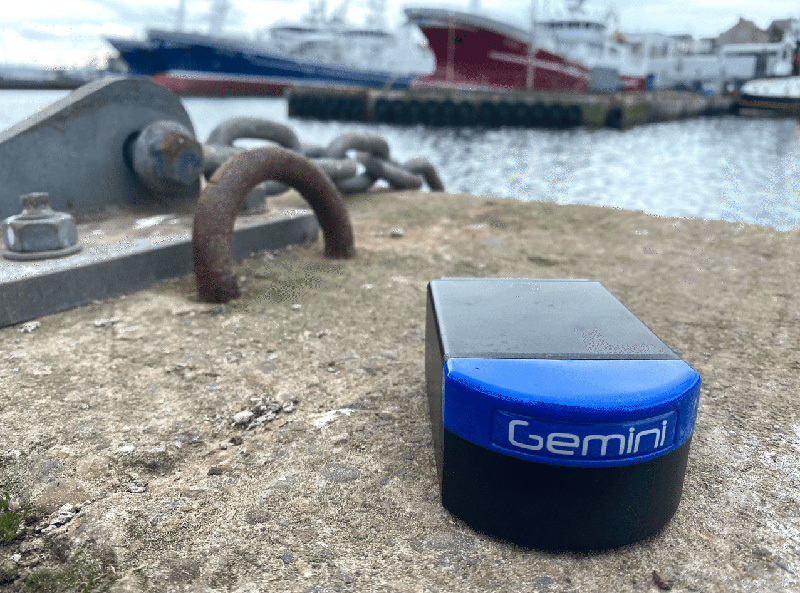

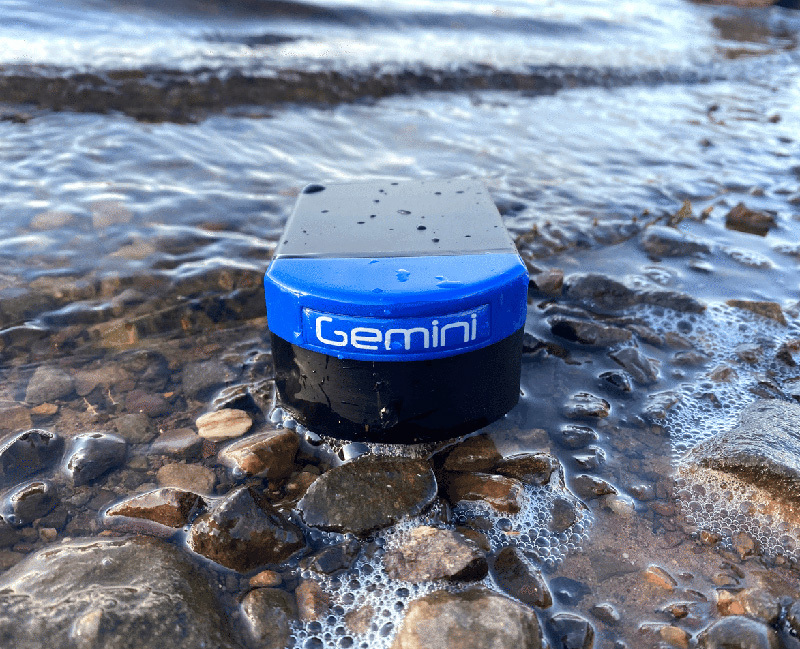

The Micron Gemini is the latest addition, real-time sonar imaging in the body of a Gemini 720im.
The Micron Gemini has incredibly compact dimensions and is ideally suited for micro ROV/AUV applications when real-time, video-like imagery is required, and where space is restricted or weight is critical, such as diver helmet and pole mounted applications for Search and Recovery (SAR) operations.
Features
20Hz update rate
300m or 750m depth rated
CW & CHIRP processing
Integrated sensor for depth reading
Integrated sensor for temperature reading
Optional built in AHRS
Specifications
| Availability |
|---|
Range: 0.2m to 50m / 0.6ft to 164ft
Dimensions: 116mm x 63mm x 40mm / 4.57in x 2.49in x 1.58in
Depth rating: 300m / 1148ft or 750m / 2460ft
Weight in air: 0.43kg / 0.97lbs
Weight in water: 0.24kg / 0.53lbs
Supply voltage: 12 to 48V DC
Applications
Compact and Light-weight
High-quality image
90° horizontal field of view
Ethernet and serial comms
Serial Auxiliary port
Low power
