Features
Continuous inflatable buoyancy for submarine cable installation
Distributed cable support to reduce concentrated loading
Surface-controlled inflation and sinking operations
Standard buoyancy capacities from 40 to 170 kg/m
Suitable for shallow-water cable shore approaches
Drum-based deployment for progressive installation
Cable towing capability up to 5 knots, as stated in the brochure
Customised buoyancy and handling configurations available
Specifications
Product Type: Continuous inflatable cable buoyancy system
Standard Models: 3000-4-13, 3000-3-10 and 3000-2-7
Buoyancy Range: 40–170 kg/m
Inflated Diameter: 226–465 mm, depending on model
Attachment Spacing: Approximately 1–1.2 m
Section Weight: 43–76 kg per 50 m
Reserve Buoyancy: 50% at maximum working depth, as stated in the brochure
Deployment: Lay-flat tube supplied on deployment drum arrangements
Refer to brochure for detailed model specifications, installation requirements and operating limitations.
Applications
Submarine Cable Shore Landing
Shallow-Water Cable Installation
Subsea Power Cable Installation
Fibre-Optic Cable Shore Approaches
Cable Float-Out & Towing
Controlled Cable Trench Placement
Temporary Cable Buoyancy & Repositioning
SeaSerpent Models & Cable Installation Capabilities

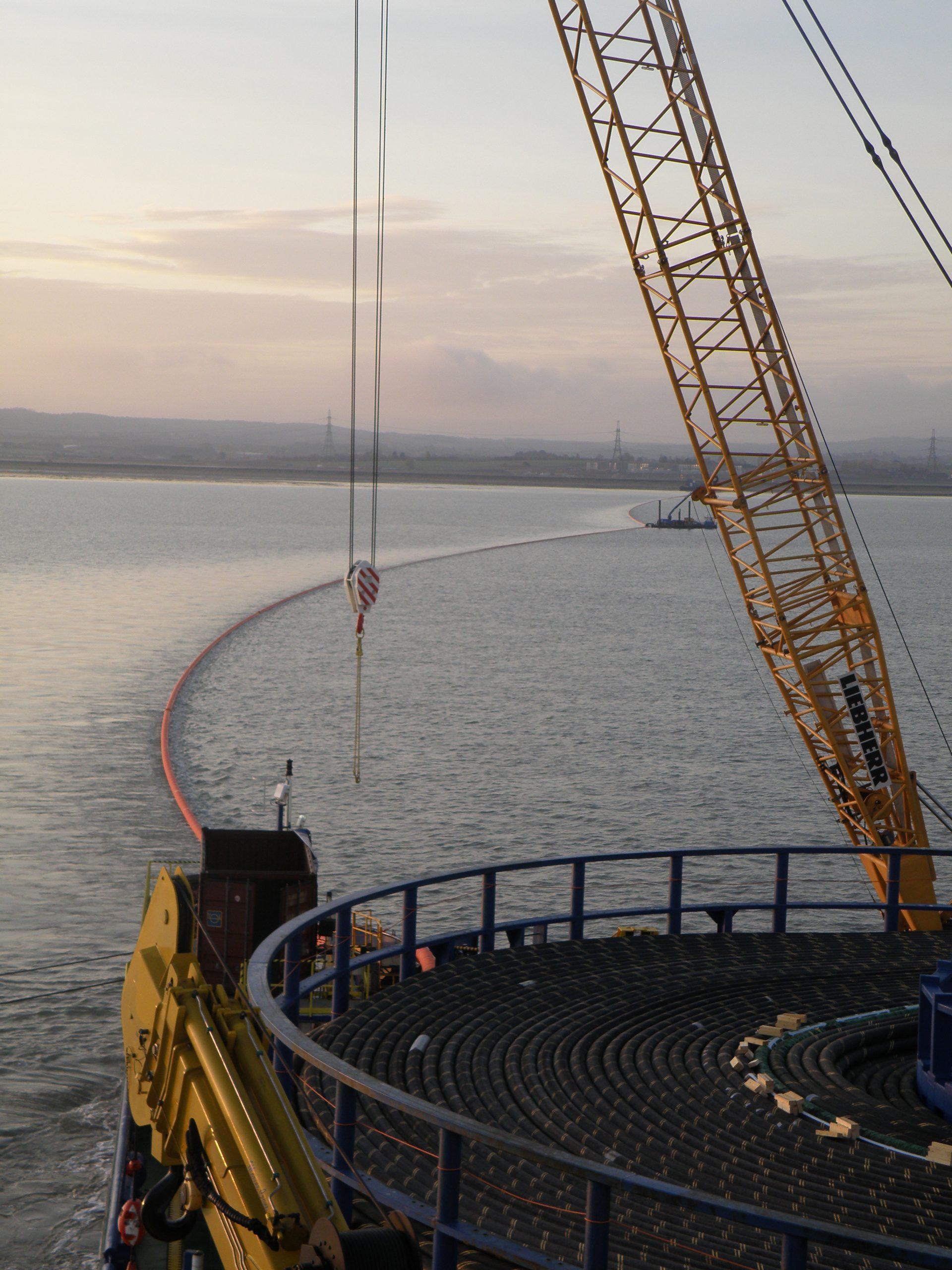

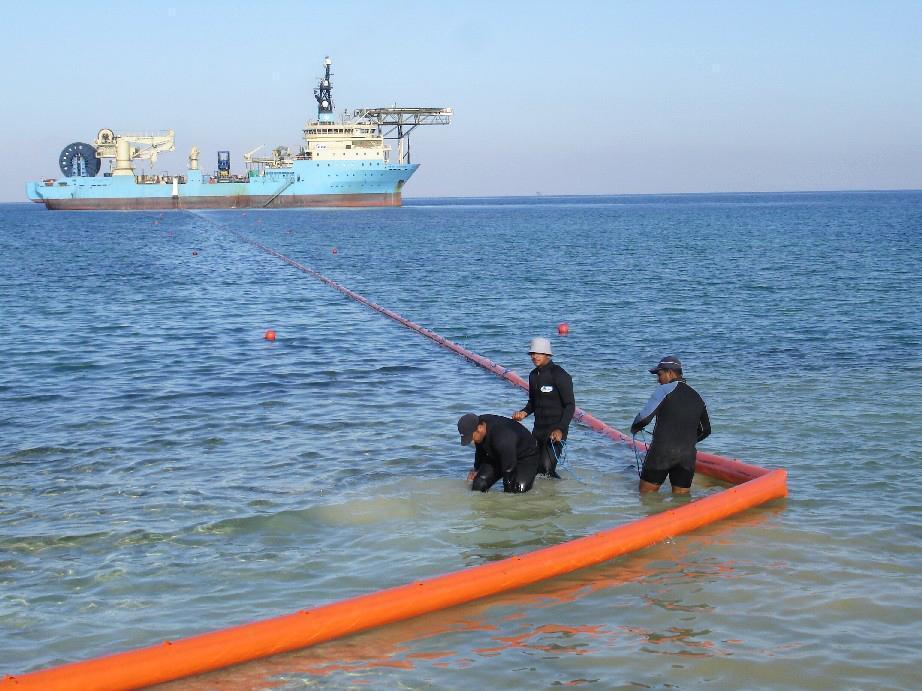

SeaSerpent™ provides continuous cable buoyancy through inflatable tubes secured along submarine cables. The system supports shallow-water cable installation, allowing buoyancy to be adjusted during cable deployment, towing, positioning and seabed placement.
Available SeaSerpent Models & Specifications
| Model | Lay-Flat Width | Inflated Diameter | Buoyancy | Weight per 50 m |
|---|---|---|---|---|
| 3000-4-13 | 355 mm | 226 mm | 40 kg/m | 43 kg |
| 3000-3-10 | 480 mm | 306 mm | 74 kg/m | 54 kg |
| 3000-2-7 | 730 mm | 465 mm | 170 kg/m | 76 kg |
Deployment Drum Dimensions
The brochure also lists these diameter × width dimensions for 100 m drums:
- 3000-4-13: 770 × 450
- 3000-3-10: 770 × 550
- 3000-2-7: 770 × 800
The source table does not explicitly label the units for these drum dimensions; these should be confirmed before using them as dimensional specifications.
Cable Attachment & Continuous Support
- The inflatable tube is attached to the cable at approximately 1–1.2 m intervals.
- Continuous buoyancy reduces concentrated support loads compared with individual floats.
- Inflated tube stiffness helps reduce cable kinking and sagging between supports.
- The arrangement is particularly beneficial for sensitive submarine cables containing fibre-optic elements.
Controlled Cable Positioning
- Surface-controlled inflation and venting allow adjustment of cable buoyancy.
- Cable sections can be temporarily lowered to the seabed during adverse conditions.
- Buoyancy can be restored to lift and reposition the cable when required.
- Controlled sinking supports cable alignment and placement within a prepared trench.

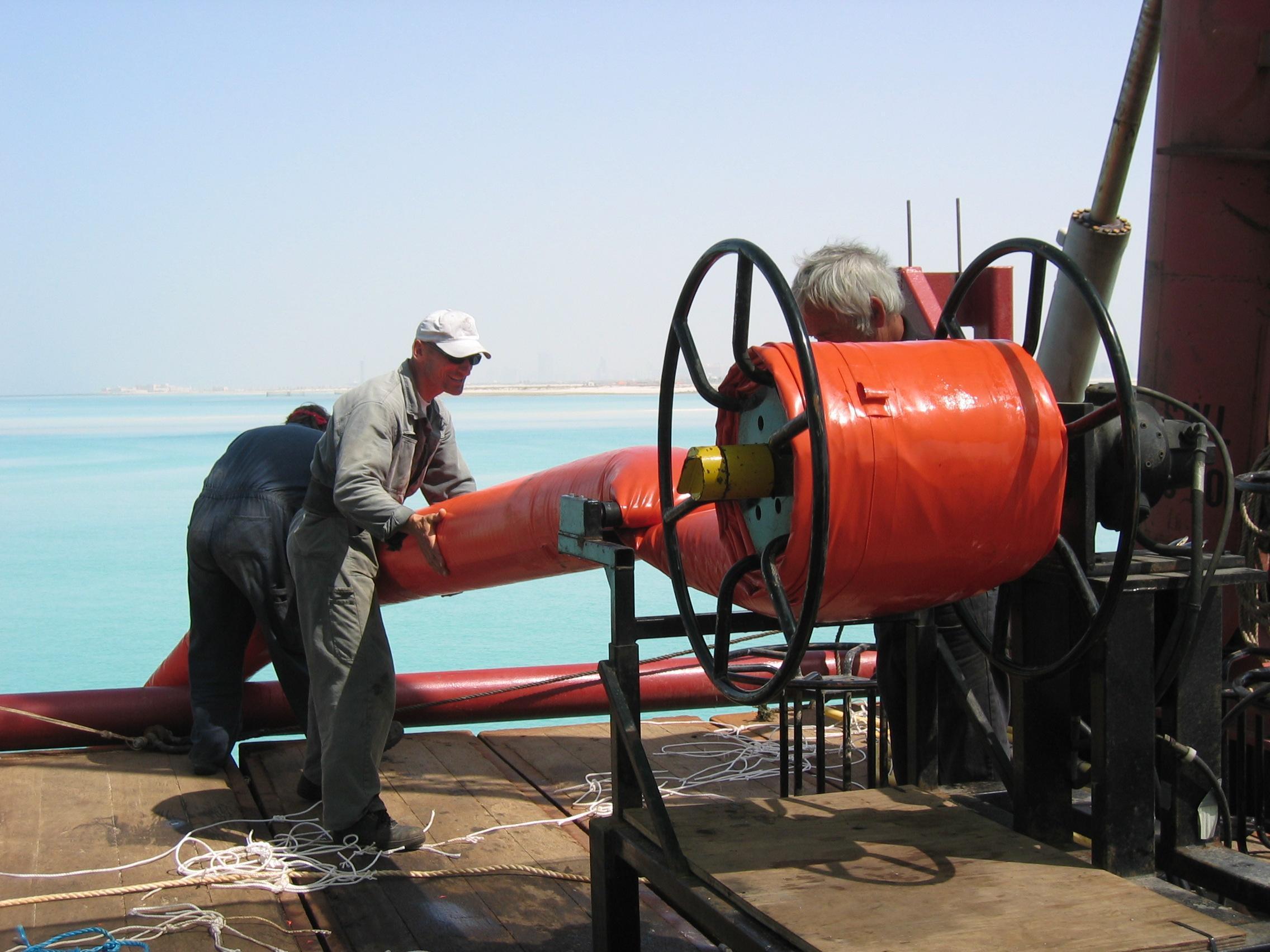

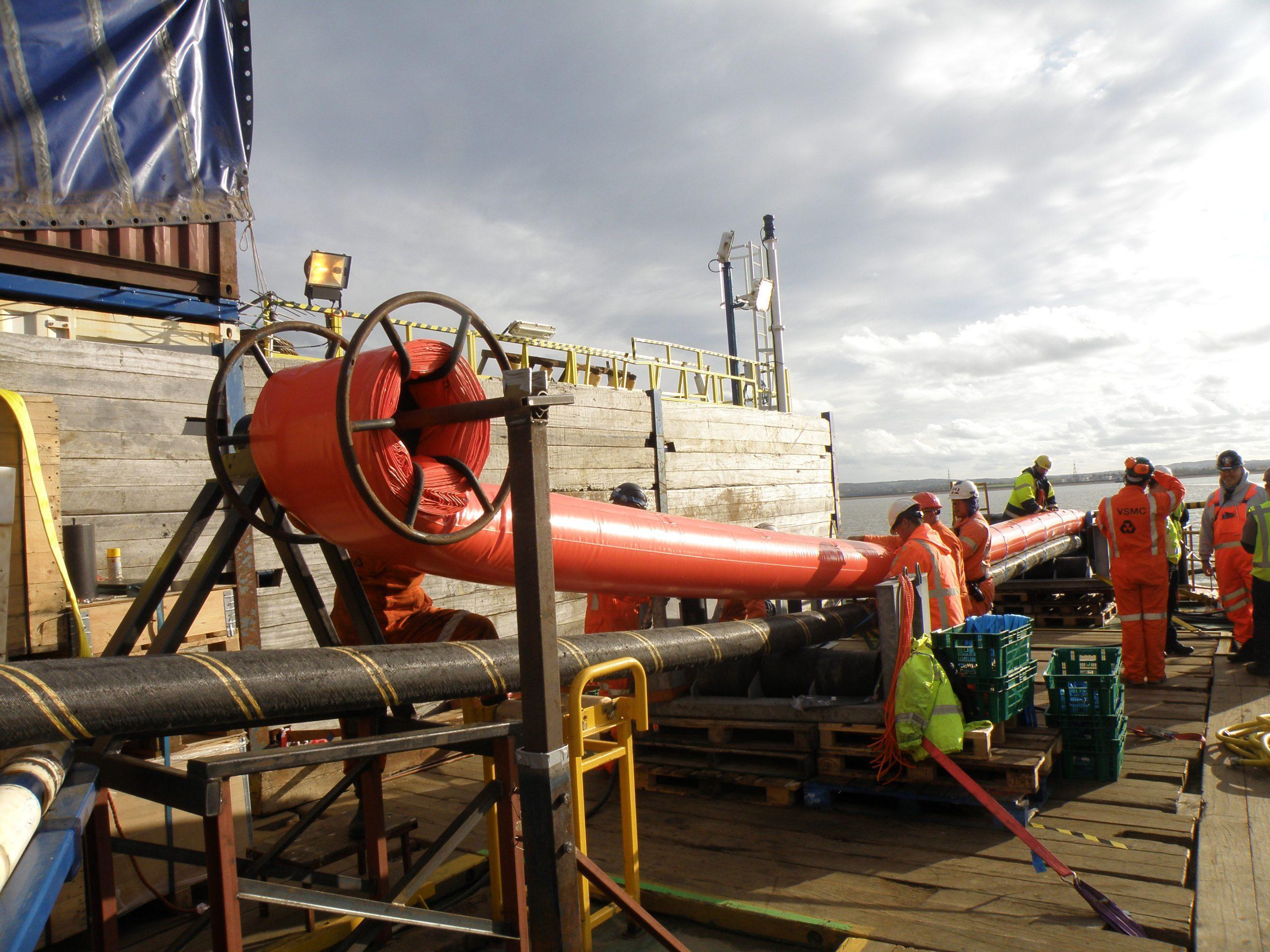

Deployment & Recovery Systems
- SeaSerpent is generally supplied in lay-flat form on a braked deployment drum.
- The tube is inflated and attached to the cable as it leaves the cable engine.
- Powered recovery drums can be used to retrieve the equipment.
- Simple timber drum arrangements can be supplied for one-off applications.
- Customised launch and recovery equipment can be engineered for project requirements.
Project Suitability & Technical Support
System selection depends on cable weight, required buoyancy, water depth, towing conditions and the installation methodology.
Standard SeaSerpent configurations provide up to 170 kg/m of buoyancy, with custom arrangements available for requirements outside the standard range.
Unique Group can also provide technical supervision for cable installation operations, with support from personnel experienced in SeaSerpent deployments.
Why Choose Unique Group
Unique Group’s Seaflex SeaSerpent™ combines specialist cable buoyancy technology, UK manufacturing expertise and project-specific support for submarine cable installation operations.
- Specialist Buoyancy Technology: Continuous inflatable systems developed for controlled cable installation in shallow water.
- UK Manufacturing: Seaflex products are designed and manufactured in the United Kingdom using high-strength coated polyester fabrics and precision fabrication processes.
- Flexible Engineering Capabilities: Standard and customised buoyancy configurations for different cable installation requirements.
- Deployment & Recovery Expertise: Drum-based handling equipment and customised launch and recovery arrangements.
- Equipment Testing & Inspection: Seaflex products are inspected and tested against their applicable build criteria before dispatch.
- On-Site Technical Support: Experienced personnel can assist with SeaSerpent installation operations and equipment handling.
SeaSerpent has supported submarine cable installation projects in the Channel Islands and offshore Qatar, demonstrating its application in challenging shore approaches.
Rental or Purchase Options
Seaflex SeaSerpent™ cable buoyancy systems can be supplied for project-specific submarine cable installation requirements, with standard and customised configurations available for consideration.
Equipment Purchase
- Continuous inflatable buoyancy systems selected according to cable weight and installation requirements.
- Three standard models providing 40–170 kg/m of buoyancy.
- Custom configurations for specialised project requirements.
Handling Equipment Hire
- SeaSerpent deployment and recovery systems are described as available for hire.
- Drum-based arrangements support cable float-out, deployment and retrieval.
- Customised launch and recovery systems can be engineered where required.
Technical Assistance
Unique Group can provide specialist supervision and equipment handling guidance for SeaSerpent installation operations.
SeaSerpent product rental availability, handling equipment hire and purchase arrangements should be confirmed for the selected configuration and region.
Worldwide Delivery & Regional Network
Unique Group supports submarine cable installation and marine buoyancy projects through its international network of regional offices and technical specialists.
Our network spans the Middle East, Europe, Asia Pacific, India, Africa and the Americas.
Seaflex products are designed and manufactured in the United Kingdom, with equipment inspection and testing undertaken before dispatch.
SeaSerpent equipment supply, international delivery, handling systems and on-site technical support are coordinated according to project location, configuration and regional availability.
