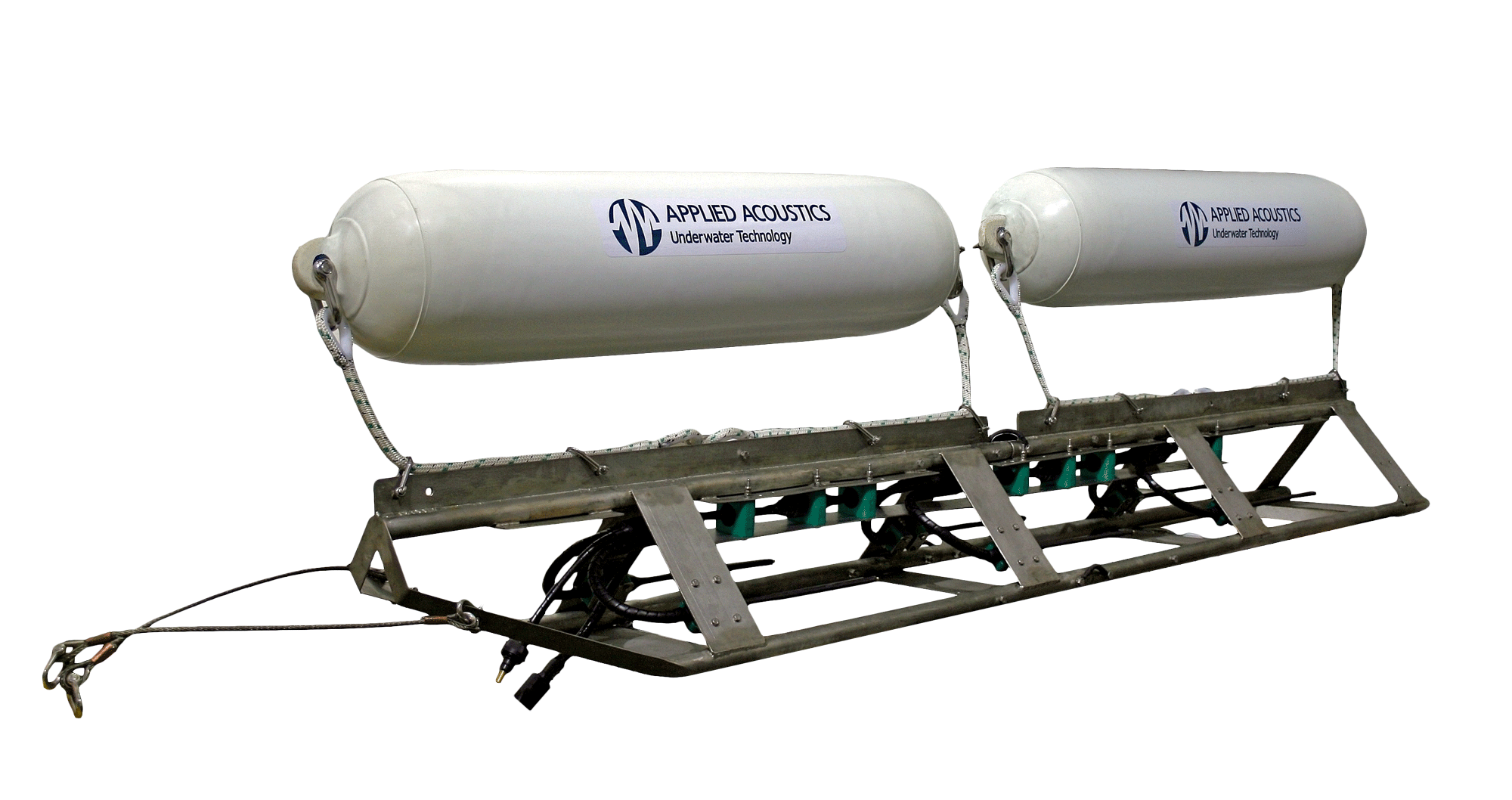

Applied Acoustics: Delta Sparker Seismic Sound Source
The Delta Sparker is the most powerful sparker available in the applied acoustics range and is intended for deeper penetration sub-bottom profiling. As a multi-tip sparker array, the Delta can be used in UHR multi-channel seismic surveys, utilising 24 or 48 channel streamers during geohazard assessment, construction projects or shallow target 2D exploration.
Features
Powerful sparker for deep penetration surveys
Compatible with CSP-S12000
2.5m triangular tow frame, supplied with buoys
Tow depth can be adjusted
Replaceable electrodes for easy field maintenance
Specifications
Dimensions: 2550 mm (L) x 350 mm (W) x 250 mm (H) (can be split in two for ease of shipping)
Weight: 50 kg approx
Frame material: Stainless steel
Buoyancy: FA6 floats x 2
Depth of tow: Adjustable
Applications
Deep water geohazard survey
-
EdgeTech 3400: Sub-Bottom Profiling System
Survey Equipment -
Neptune T335: Low Frequency Transducer
Survey Equipment -

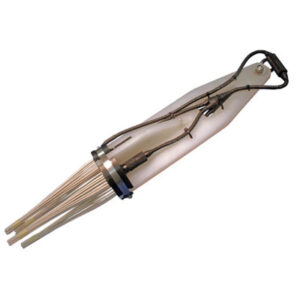

Applied Acoustics: Squid Sparker Seismic Sound Source
