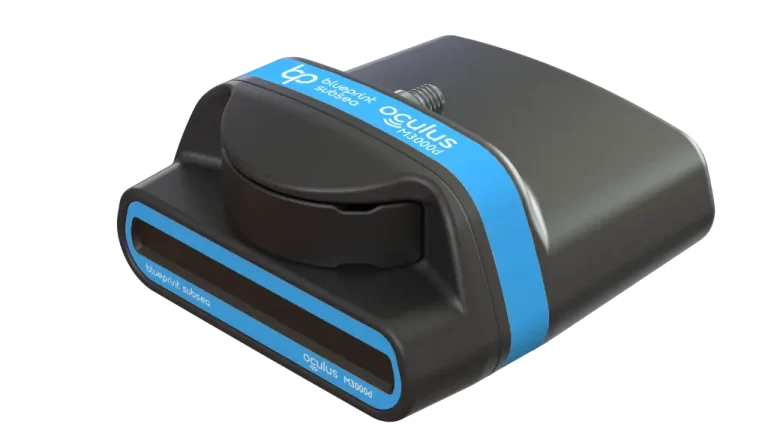

Blueprint Oculus M-Series: Multibeam sonars

Availability: ,

The Oculus M series multibeam sonars are a new generation of compact imaging sonar, designed for use across a wide variety of underwater applications. Their small form factor makes them ideally suited for deployment onto micro sized platforms, while their rugged construction also makes them an excellent choice for larger work-class vehicles and subsea infrastructure.

Features

Depth rating to 500m

Frequencies from 375kHz to 3.0MHz

Operating ranges from 0.1m up to 200m

Wide 130° horizontal and 20° vertical apertures

Angular resolutions of down to 0.25°

Specifications

Availability

,

  • Depth rating to 500m
  • Frequencies from 375kHz to 3.0MHz
  • Operating ranges from 0.1m up to 200m
  • Wide 130° horizontal and 20° vertical apertures
  • Angular resolutions of down to 0.25°
  • Range resolutions of down to 2mm
  • Ultra-fast update rates of up to 40Hz
  • Simple, intuitive operator software

Applications

Suitable for small inspection-class ROVs

Ideal for larger work-class platforms.
