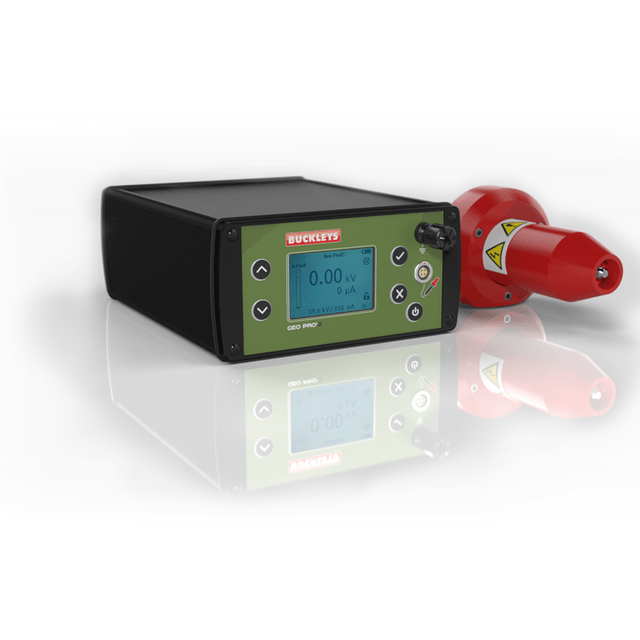

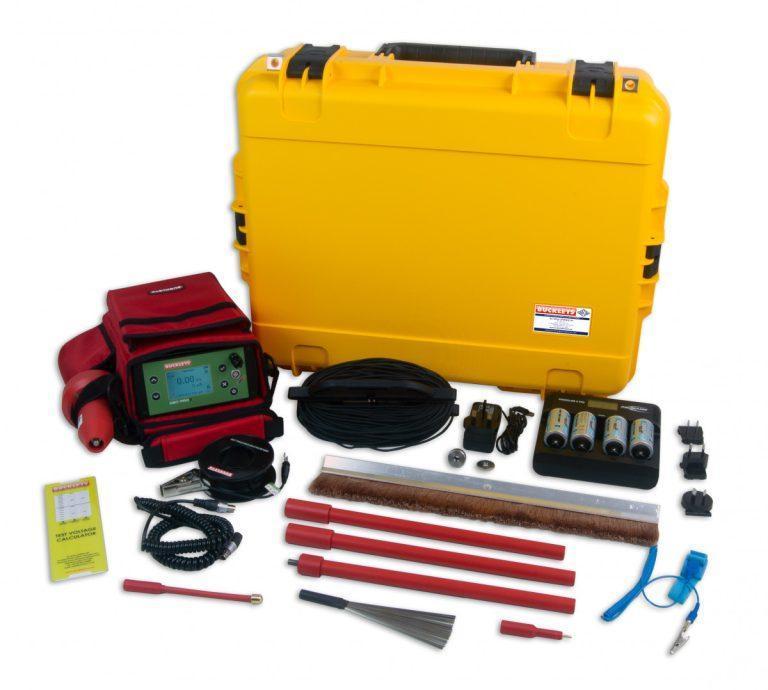

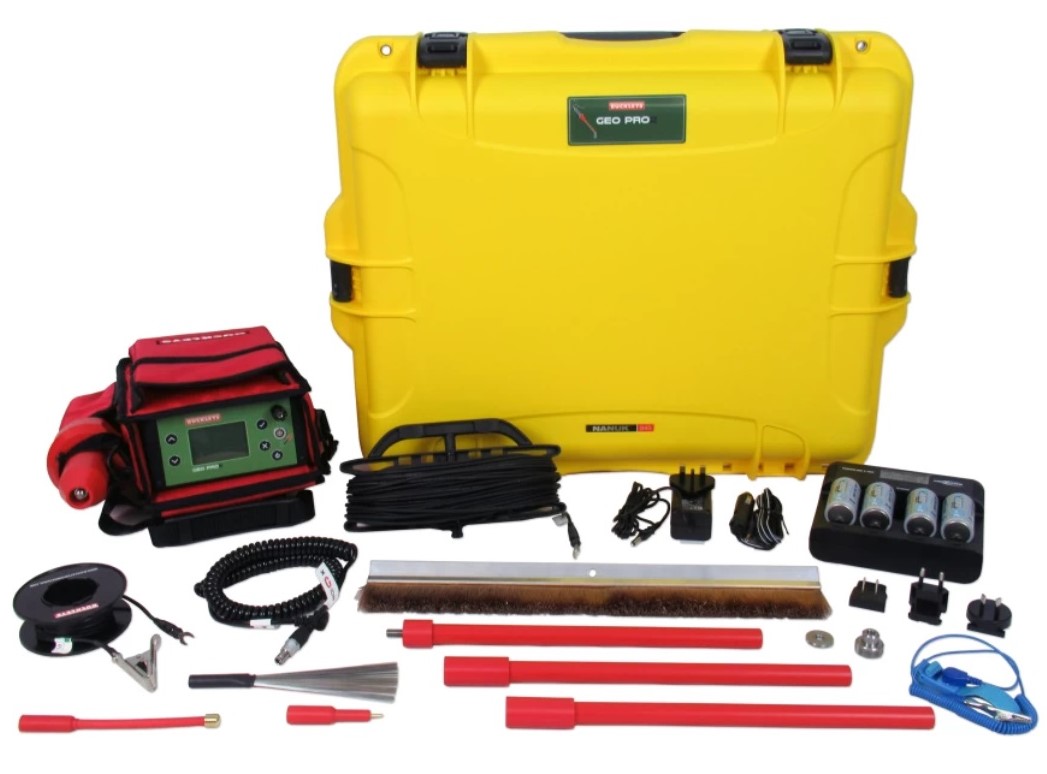

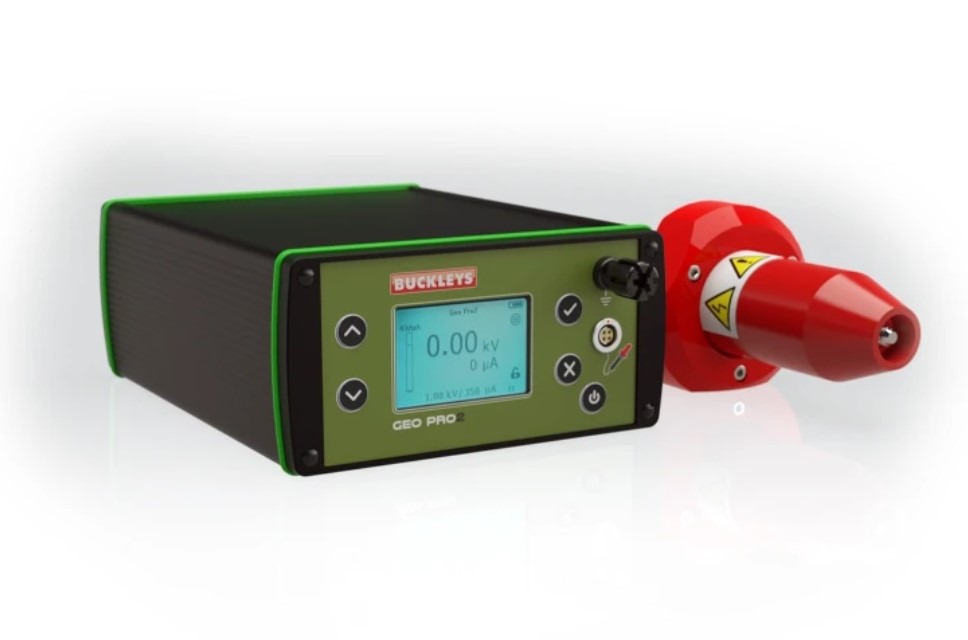

Buckleys Geo Pro2: Geomembrane Arc Testing Kit
The Geo Pro2 is a geomembrane integrity testing kit which uses Buckleys’ tried and tested high-voltage DC technology for the post-installation testing of geomembranes for leaks and faults prior to being placed in service, and can easily test 1000m² per hour in ideal conditions.
Features
Multi-colour display
Simple scrolling menu navigation with 12 language options
Visual and audible alarm with volume control
Automatic output voltage selector via a range of standards
IP65 ingress protection rating
Specifications
Output voltage range: 0.9kV – 40kV
Membrane thickness: 13μm – 25.6mm (using NACE SP0274)
Sensitivity threshold range: 10μA – 450μA (factory-set to 200μA)
Meter accuracy: =10kV +/- 100V
Built-in test standards: NACE SP0274/NACE SP0490/ NACE SP0188/
ASTM D5172/ASTM G62/ISO 21809-2*
Applications

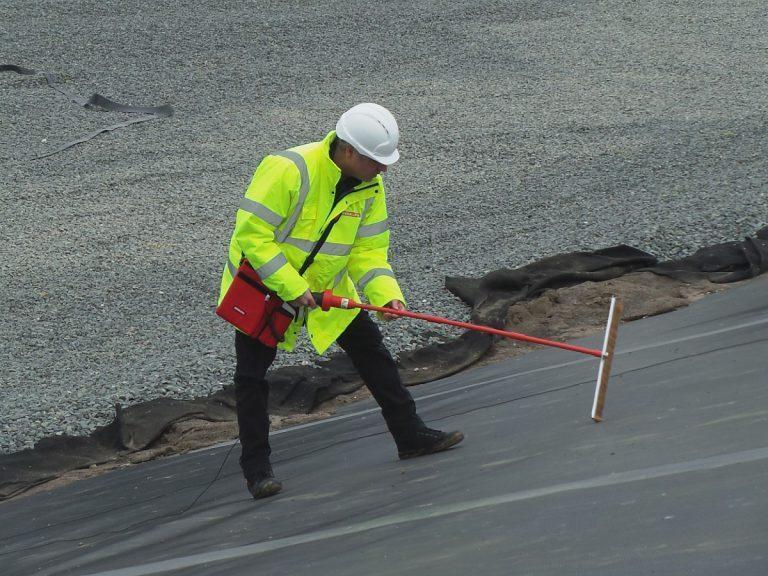

Used for post installation testing of geomembranes for leaks and faults prior to being placed in service
-
