UG: Load Pins

Availability: ,

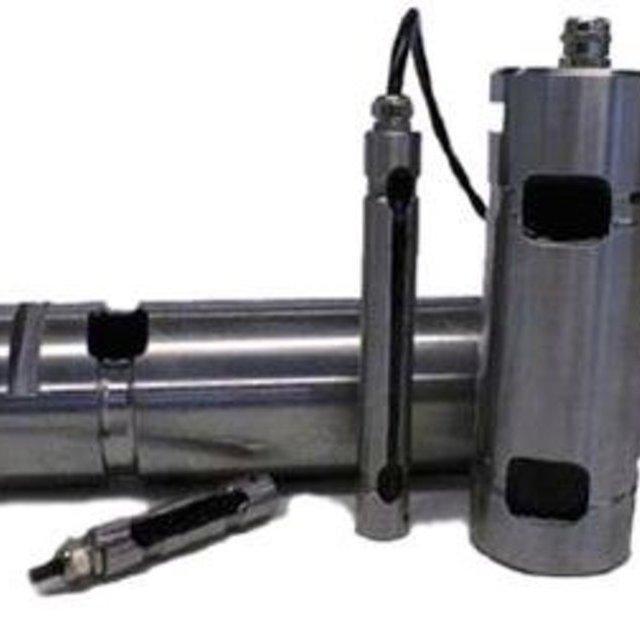

Unique Group offers Load Pins which are designed to replace non-instrumented pins or shafts in identifying loads by generating an electrical sign corresponding to the heap applied. Carbon and tempered steel variations are available, as well as individually built limitations based on the requirement.


Special anti-rotation/ locking plates

Internal grease ways

Plug/ Socket breakdown at pin

Second redundancy gauge bridge

Internal signal amplifier


Full Scale Output: 1.3mV/V

Output Resistance: 350 (nominal)

Input Resistance: 350 (nominal)

Material/Finish: Alloy steel Temperature: 14° F to 104° F (-10°C to 40°C)

Rated Excitation: 15VDC (5-10V recommended)


Monitoring of torsion/wobble, the power in a shaft, the torque on a shaft, and/or the force in a shaft
