Vipo: Elastopipe™ Flexible Piping System
Unique Group in partnership with Vipo, offers Elastopipe™ which is a corrosion free, explosion, impact, and jet fire resistant flexible piping system that can be used to transport a variety of fluids from fresh water to crude oil. These piping systems come in two distinct configurations – FR (Fire Resistant) and FOR (Fire and Oil Resistant).
Features
100% corrosion free and UV resistant.
Lower total installation cost compared to rigid pipe.
Maintenance free and easy to install with no hot work required.
30+ year design life.
Reduces water hammer and minimises marine growth compared to traditional pipes.
Specifications
It is rated as a 150 lbs piping system with a design pressure up to 20 bars.

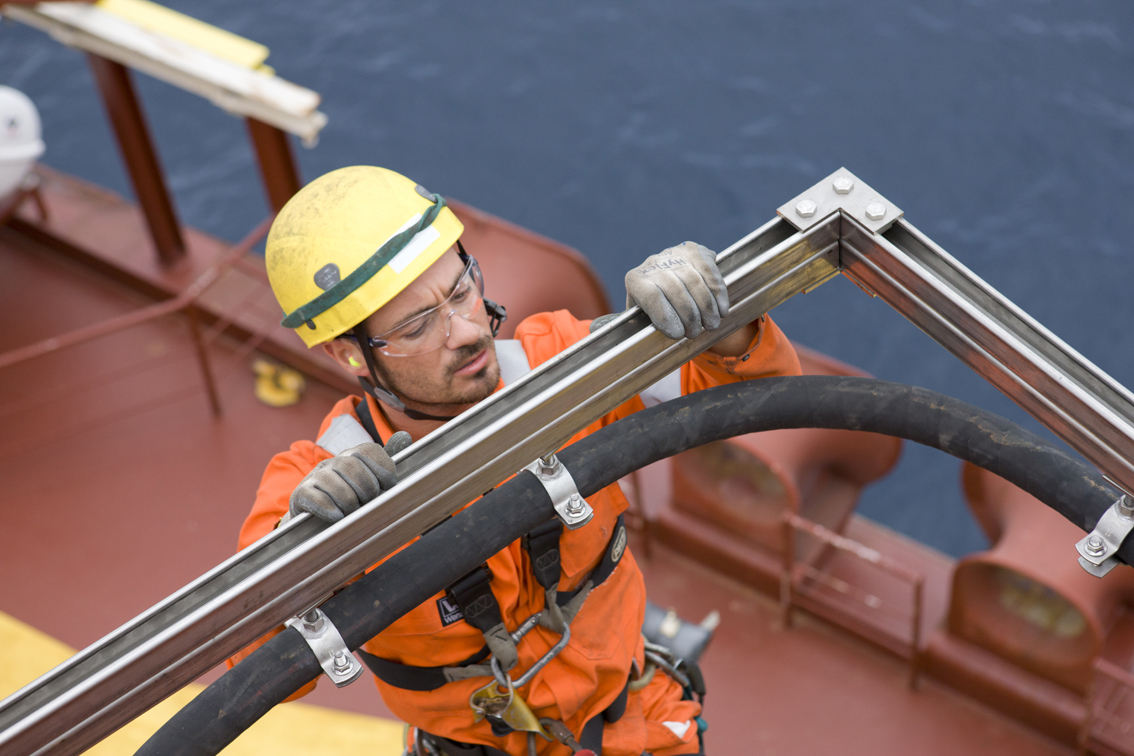

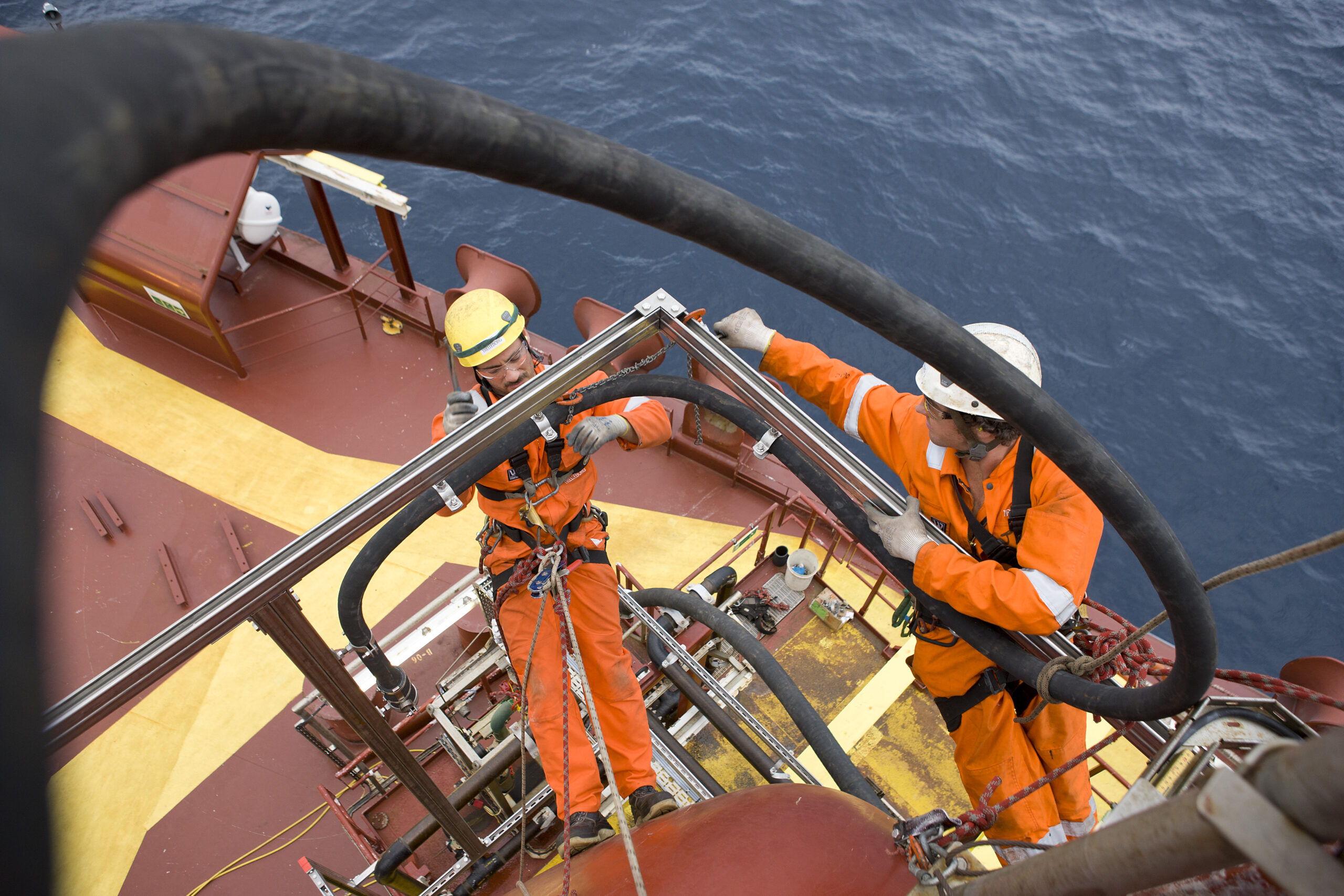

The flexibility of Elastopipe™ and pre-designed support solutions reduce the installation hours and need for detailed engineering.

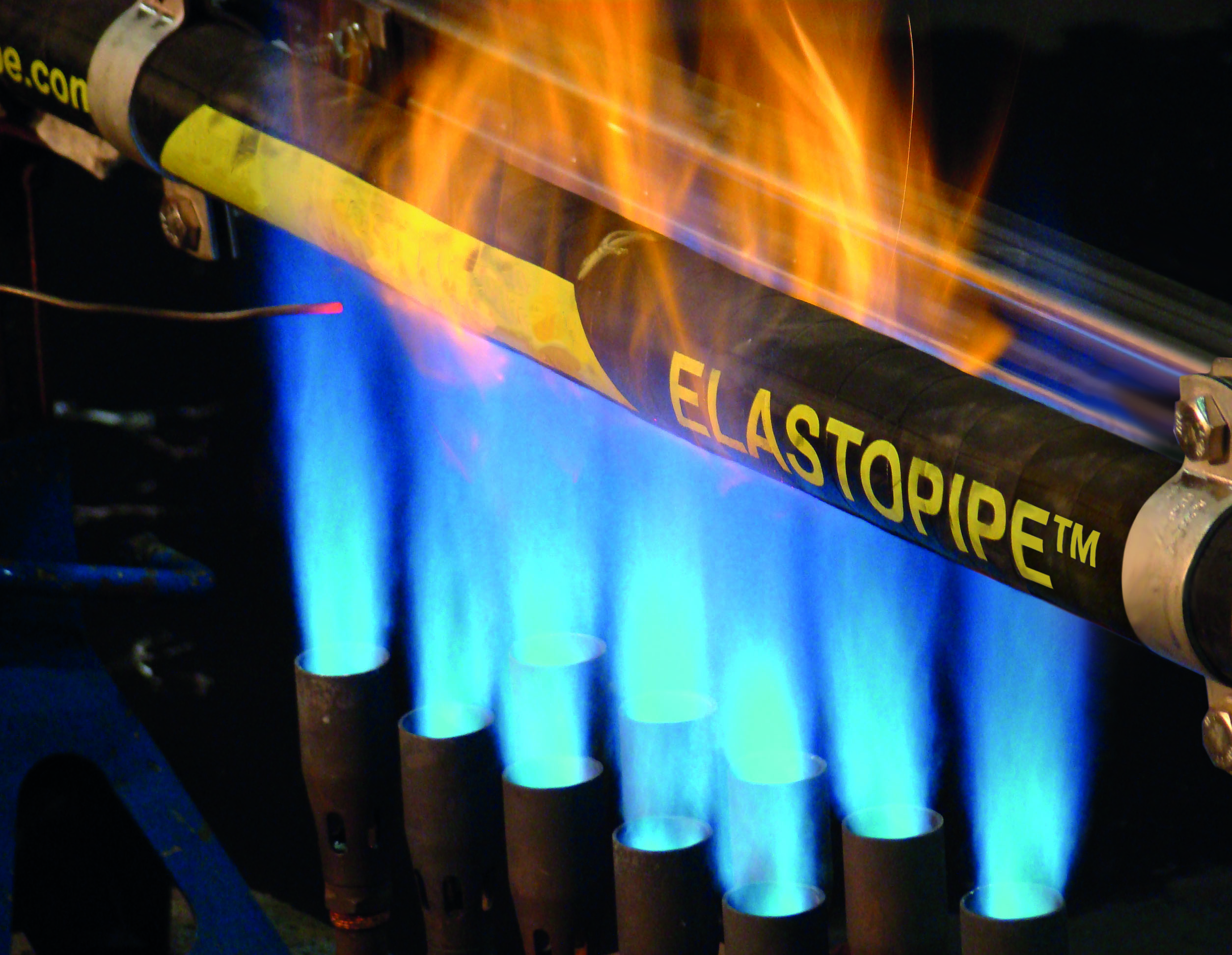

The pipes are less sensitive to physical damages caused by impact, explosion and freezing.
Elastopipe™ has been type approved by Lloyds, ABS, RMRS and USCG.
Compliant with all functional requirements of NORSOK, NFPA, ASTM and SOLAS/ IMO.
Applications
Firewater distribution.
Utility systems.
Drain water and foam systems.
Nitrogen distribution systems.
Chemicals and hydrocarbons transportation.
-
