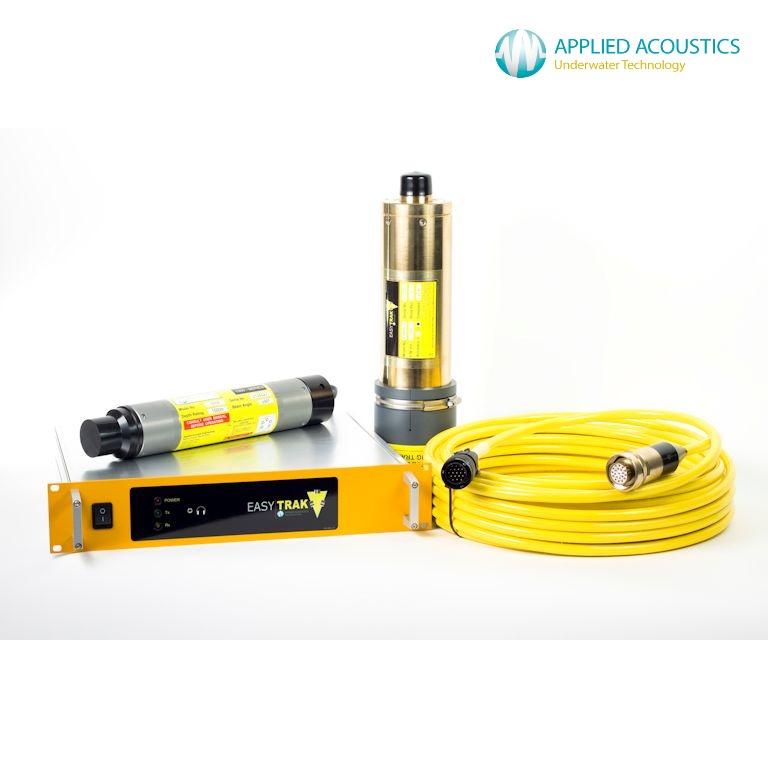

AAE Easytrak Nexus 2 Model 2692:USBL System
The Nexus 2 is the second generation of Easytrak digital USBL systems designed as a highly advanced positioning and tracking system that is quick to deploy and straightforward to operate. Featuring AAE Sigma 2 acoustic protocols, the Nexus 2’s digital spread spectrum transmissions provide a secure acoustic link with very low susceptibility to interference, enabling precise and reliable positioning over an extended operational range. Able to determine the positions of up to 16 dynamic subsea targets simultaneously, Nexus 2 is ideal for many deep or shallow water applications where multiple assets are to be tracked. These operations can include UXO surveys utilising several magnetometers or side scan sonars, diving operations, and for use at offshore worksites where several vehicles may be in use concurrently.
The long range capability and exceptional accuracy specifications make Nexus 2 particularly effective for long layback towed applications. When coupled with 1100 Series positioning beacons, Nexus 2
provides Multi-Fire and MiQ Data telemetry functionality.
Bi-directional Sigma 2 spread spectrum acoustics
Optimised beacon refresh rate
16 target tracking
Geographical navigation overlays
EasyCal 2 embedded calibration tool with AutoCal Wizard
Material: Aluminium Silicon Bronze
Size: 510 mm long x 100 mm diameter
Dimensions: 19″ Rack mount. 2U 482 x 88 x 345 m
Weight: 5.4 kg
Depth rating: 30 meters depth sensor (Pressure Sensor) 5 bar, accuracy 0.25% between -10? to +40? C
Temperature sensor: 1? resolution between -10? and +40? C
Ideal for many deep or shallow water applications where multiple assets are to be tracked.
UXO surveys utilising several magnetometers or side scan sonars
Offshore worksites where several vehicles may be in use concurrently.
