UG LR50 A2TSS: 2 Diver Twin Basket Air LARS (Baskets Side by Side)

Availability: On Request

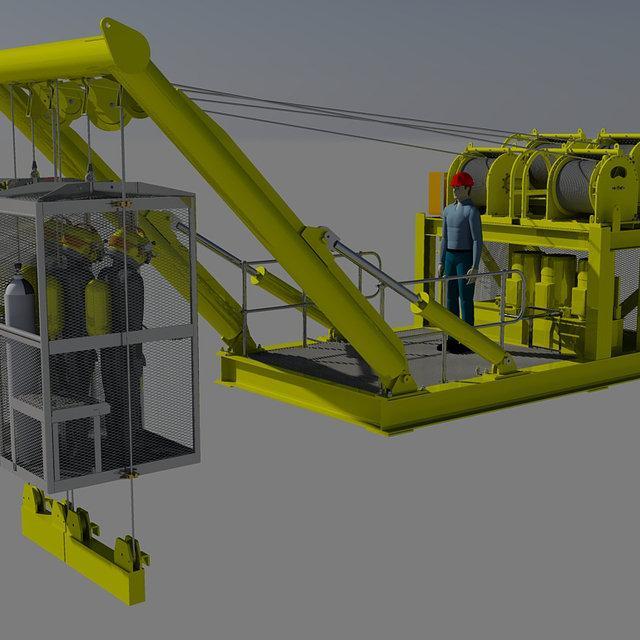

The LR50 A2TSS is a 2 diver launch and recovery A-frame and a 3 diver standby recovery A-frame all in one with dive baskets side by side. The system provides two separate diver launch and recoveries on one skid including two sets of dive cages, main winch, guide wire winch, HPU and clump weight.

Features

System provides two separate diver launches and recoveries on one skid including two sets of dive cages, main winch, guide wire winch, HPU and clump weight.

Third HPU is incorporated as the emergency HPU for both main and secondary LARS.

Skid and A-Frame is manufactured with marine grade paint to suit all kinds of marine operations in harsh environments.

Winch and hydraulic package includes 1-ton main winches with 80m of wire rope, 650kg guide wire winches with 160m of wire.

ABS Class and Zone Rated options are available.

Specifications

L: ± 4200mm, W: ± 2200mm, H: ± 2300mm

(Stowed Position Height)

Ascent Rate Main Divers: 18m/min

Ascent Rate Standby: 18m/min

Ascent Rate Guide: 36m/min

2 x Main Winch: 1000kg

Applications

Surface diving equipment for commercial diving purposes
