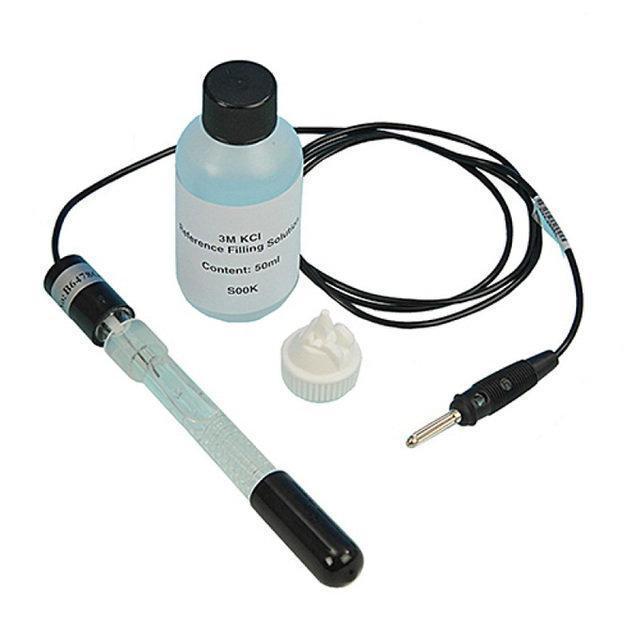

Buckleys Glass K-Series: Reference Cell

Availability: Sale

The K-Series Reference Cell (laboratory type) is an ideal environmentally friendly replacement for old-style calomel cells and is used to ascertain the accuracy of Silver/Silver Chloride Half-Cells. It has been designed to be connected to a separate high impedance voltmeter (greater than 10 meg Ohm) via a one-metre lead.

Features

Long cable length (1 metre)

Glass body casing

Environmentally friendly vs calomel electrodes

Refillable

Long service life

Specifications

Output: +208mV @ 25°C vs Normal Hydrogen Electrode (NHE)

Accuracy: +/- 5mV @25°C vs NHE

Temperature coeff: -0.64mV per °C

Temperature range: 0 – 40 °C

Working life: 1 to 2 years

Applications

Used by surveyors

Suitable for marine industry
