Rochester A320327 and A302799: Armoured Coaxial Tow Cables
Rochester A320327 and A302799: Armoured Coaxial Tow Cables
Survey Equipment

Rochester A320327 and A302799: Armoured Coaxial Tow Cables

Availability: , ,
Download Data Sheet download download
Download Associated Product Data Sheet download download

Add to Basket

Unique Group offers the Rochester A320327 Armoured Coax cable which is used on the small powered winches for digital sidescan. On the other hand the A302799 Coax cable is used for deep tow applications.

Features

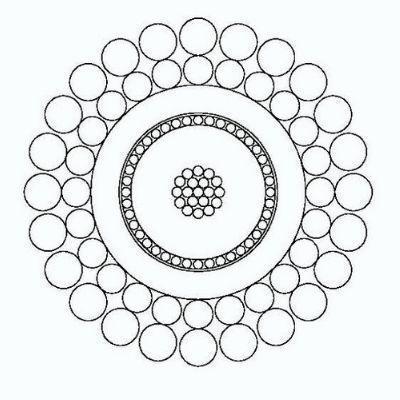

The A320327 is an 8.188mm double armoured single coaxial cable with lengths from a couple of hundred metres to 2500 metres

An 11.33 double armoured single coaxial cable with lengths available from about a few hundred metres to 6300 metres.

Specifications

For the 8.18 mm armoured coaxial cable, the weight in air is 266kg/km and the weight in seawater is 222 kg/km

Working Load: 17.1 kN

Minimum Bend Radius: 18 cm

Applications

Tow cable for a wide range of towed sensors

Ocean research

Oil and gas survey
