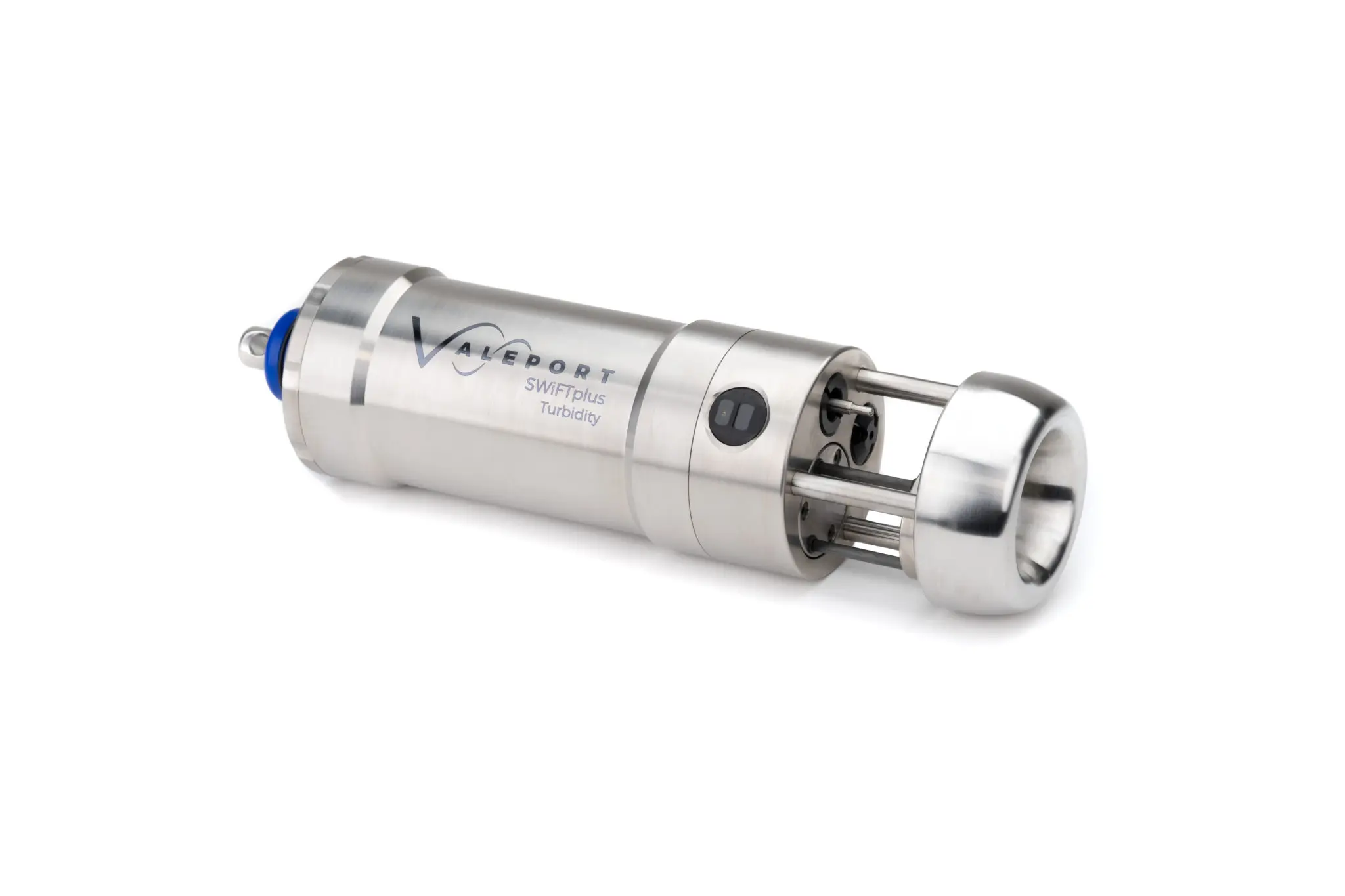

Valeport SWiFT+ Sound Velocity Profiler with Turbidity Sensor

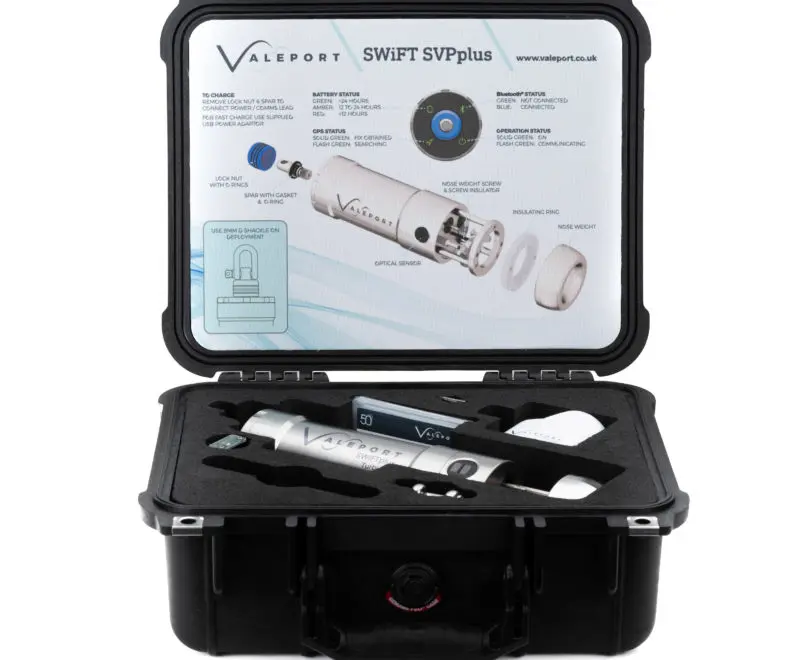

Valeport’s SWiFT SVPplus Multi-Parameter Profiler with a Turbidity sensor combines survey-grade sound speed, temperature and pressure sensor technology with Turbidity observations. The package is completed with the convenience of Bluetooth® connectivity, rechargeable battery and an integral GNSS module to geo-locate each profile.

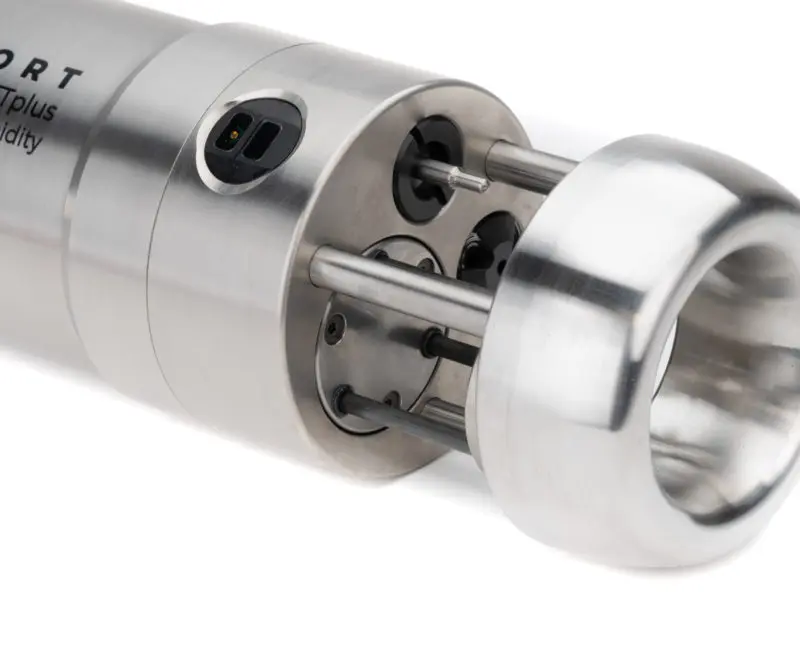

Valeport’s Turbidity technology is essentially two sensors in one. The first is a “classic” nephelometer, using a 90˚ beam angle for turbidity levels between 0 and 2,000 NTU. The second sensor uses Optical Backscatter (OBS) for turbidity levels up to 10,000 NTU. The sensors output data separately and simultaneously at a programmable rate. This means that there is no need to switch ranges as conditions vary. Intelligent sampling and the use of a 24 bit ADC eliminates the need to switch gain.

Sound velocity range: 1,375-1,900 m/s

Pressure range: 50 Bar

Temperature range: -5°C to +35°C

Calculated parameters and accuracies: Conductivity ±0.05 mS/cm, Salinity ±0.05 PSU, Density ±0.05 kg/m³

Communications: USB Serial Bluetooth v4 – low energy

Coastal survey

Harbour survey

Inland hydrographic survey
