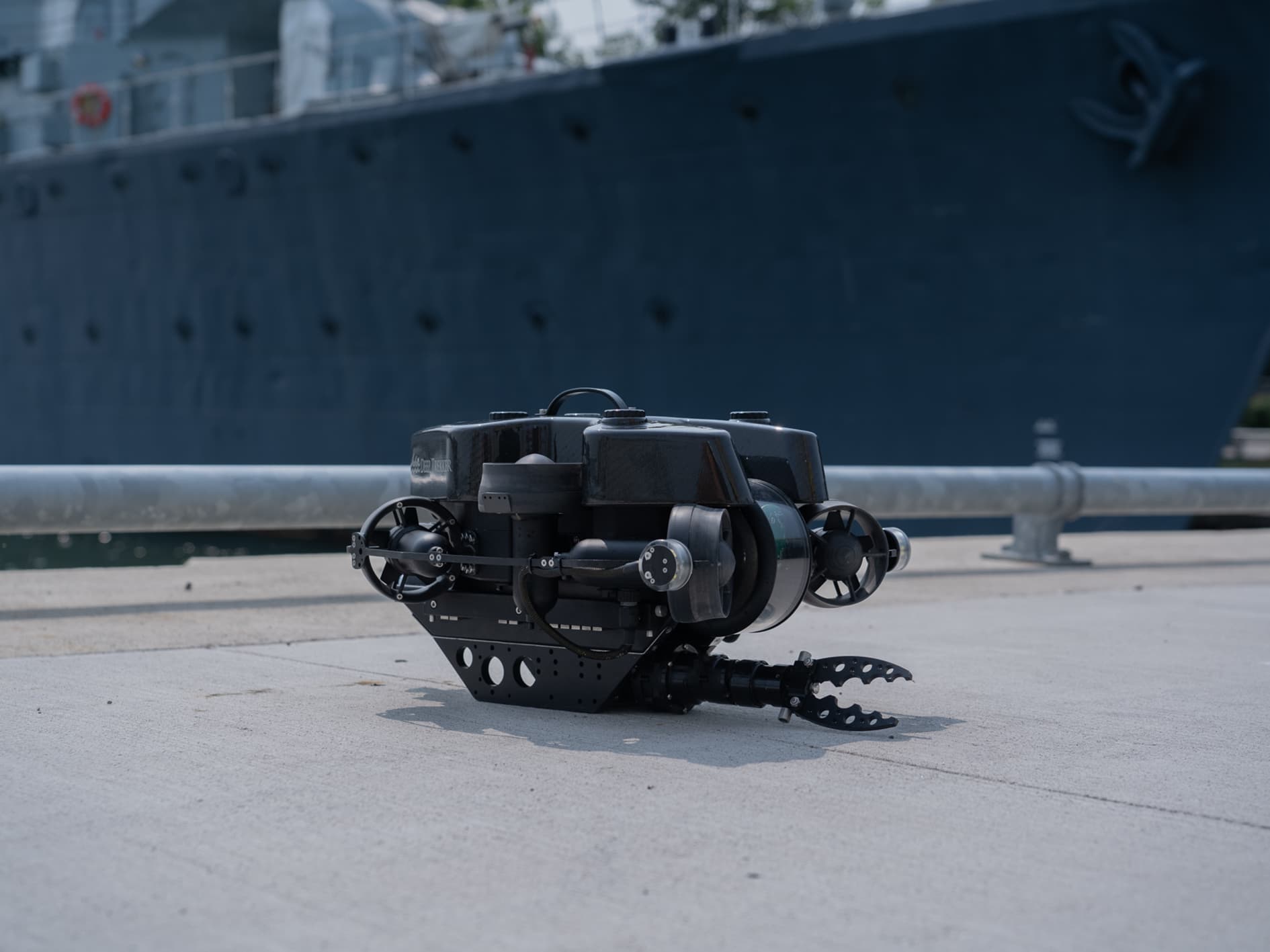

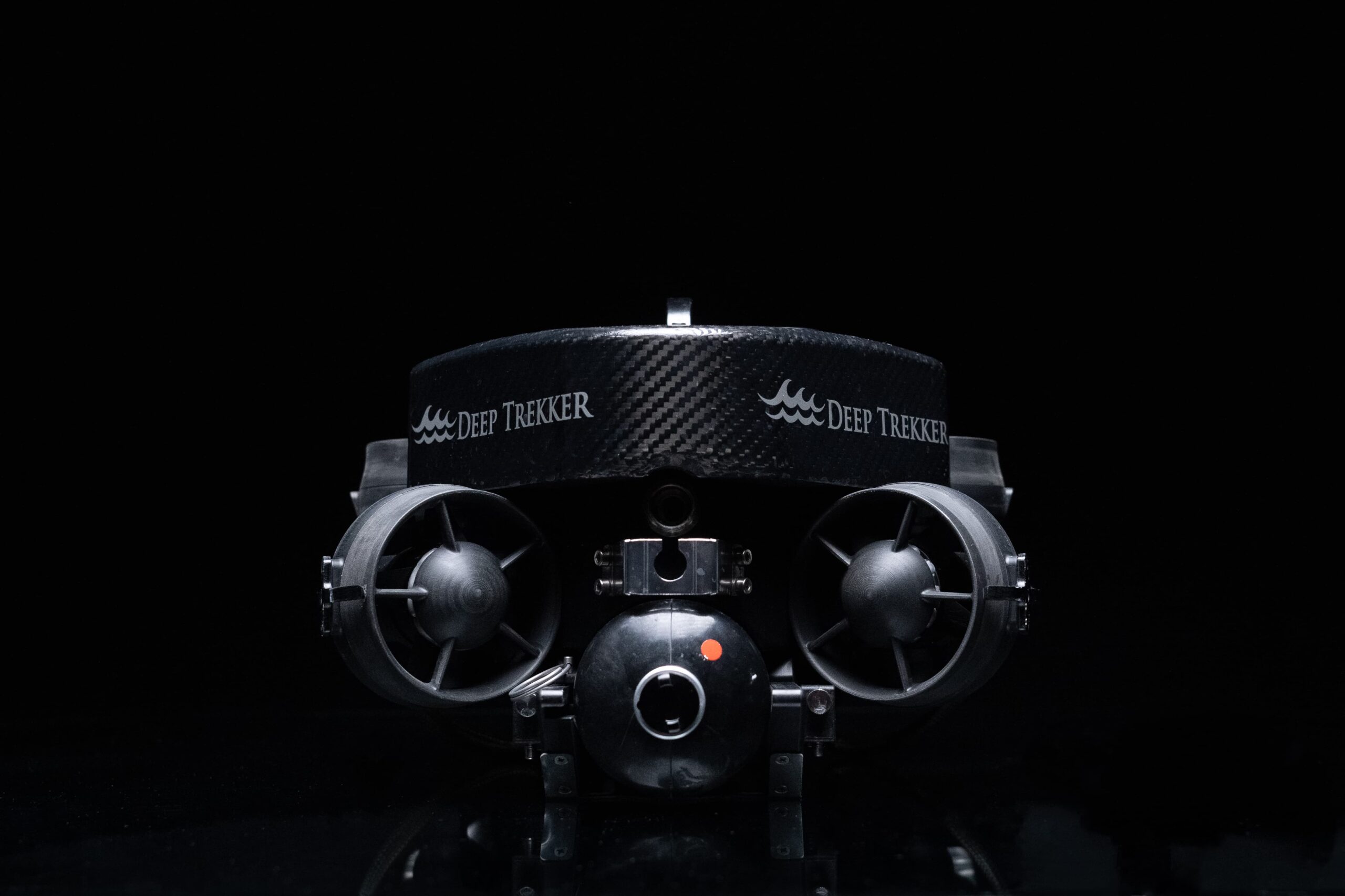

Deep Trekker Photon Micro ROV
Designed for underwater inspection, modelling and search operations, this portable micro-ROV combines a compact, rugged construction with controlled underwater manoeuvrability. Weighing just 11.8 kg, it is suited to hull inspections, port security, hydroelectric infrastructure inspections and ocean exploration.
Speak with our survey specialists to discuss your project requirements.
Designed for underwater inspection, modelling and search operations, this portable micro-ROV combines a compact, rugged construction with controlled underwater manoeuvrability. Weighing just 11.8 kg, it is suited to hull inspections, port security, hydroelectric infrastructure inspections and ocean exploration.
Speak with our survey specialists to discuss your project requirements.
Features
Six independently controlled vectored thrusters
Auto stabilisation
Infinitely variable, 100% reversible thruster control
Battery or direct power options
Magnetically coupled and sealed thruster drives
Lightweight construction with anodized aluminium and carbon fibre
Compact design supplied with a customised Pelican case
Specifications
| Availability |
|---|
Depth Rating: 120 m (400 ft)
Dimensions: 481 × 332 × 228 mm (L × W × H)
Weight in Air: 11.8 kg (26.1 lb)
System Voltage: 19.2 VDC
Thruster Configuration: Six independently controlled vectored thrusters
Operating Temperature: -10°C to 50°C
Power Options: Battery or direct power
Refer to datasheet for detailed technical specifications.
Applications
Underwater hull inspections
Port security inspections
Hydroelectric infrastructure inspections
Underwater infrastructure inspections
Ocean exploration
Underwater search and modelling operations
Construction & Operating Capabilities

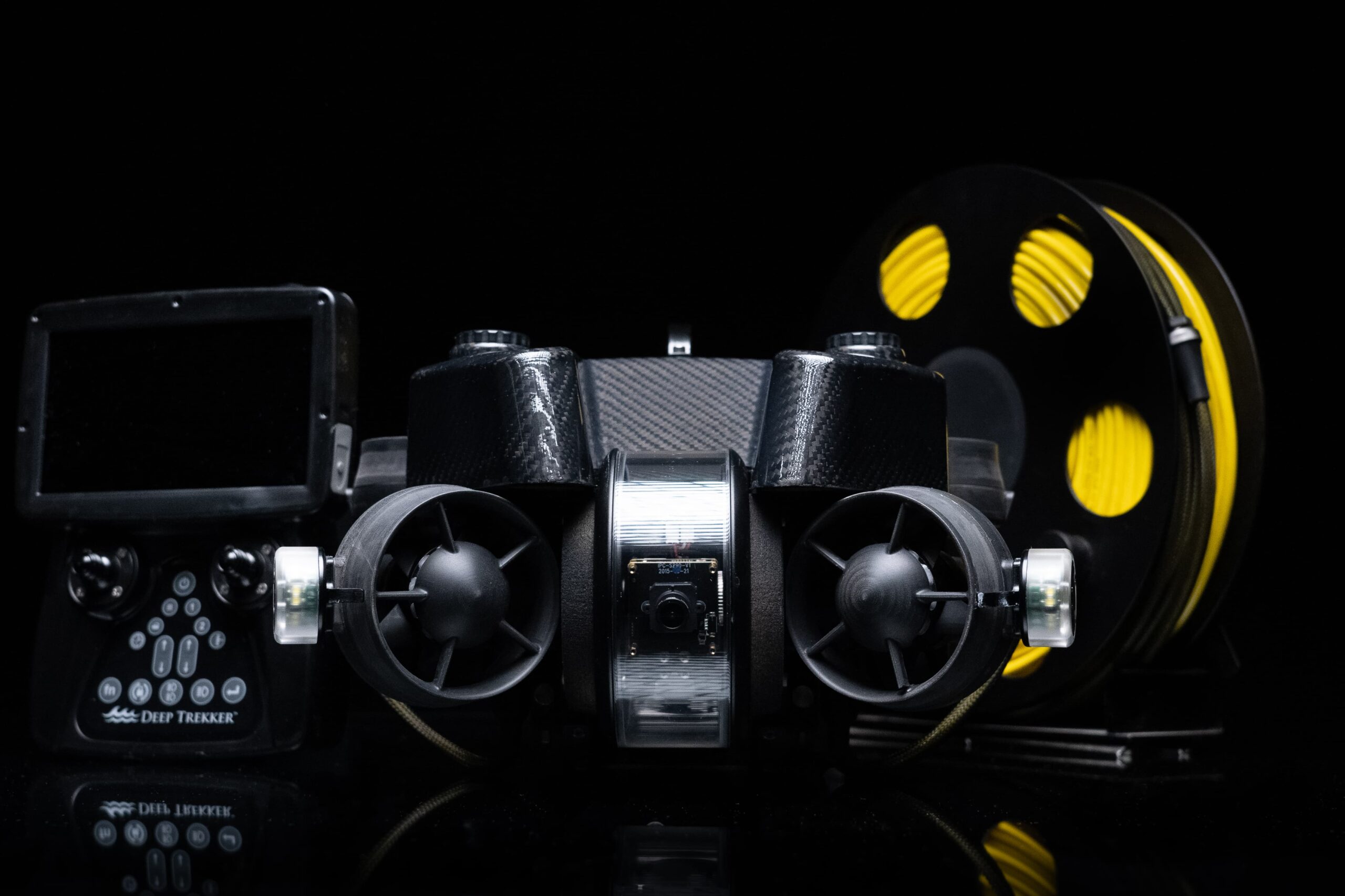

The Deep Trekker PHOTON combines lightweight construction with an electrical and propulsion system designed for underwater inspection and exploration.
Durable Construction
- Anodized machined aluminium, carbon fibre and buoyancy foam construction
- Acrylic window material
- Magnetically coupled and sealed thruster drives
Operating Configuration
- Six independently controlled vectored thrusters
- Infinitely variable and fully reversible thruster control
- Auto stabilisation
- Battery or direct power operation
Transport & Warranty
- Customised Pelican case
- One-year parts and labour warranty, with an optional two-year warranty
Industries Served
The Deep Trekker PHOTON supports underwater inspection and exploration activities across several marine and infrastructure sectors.
- Marine & Shipping: Underwater hull inspections.
- Ports & Maritime Security: Port security inspections and underwater observation.
- Hydroelectric Power: Inspection of underwater hydroelectric infrastructure.
- Infrastructure Inspection: Underwater examination of submerged infrastructure.
- Ocean Exploration: Underwater exploration, search and modelling activities.
Other underwater applications may also be suitable, depending on project requirements.
