EdgeTech 2205: AUV / UUV / ROV / ASV / USV Sonars

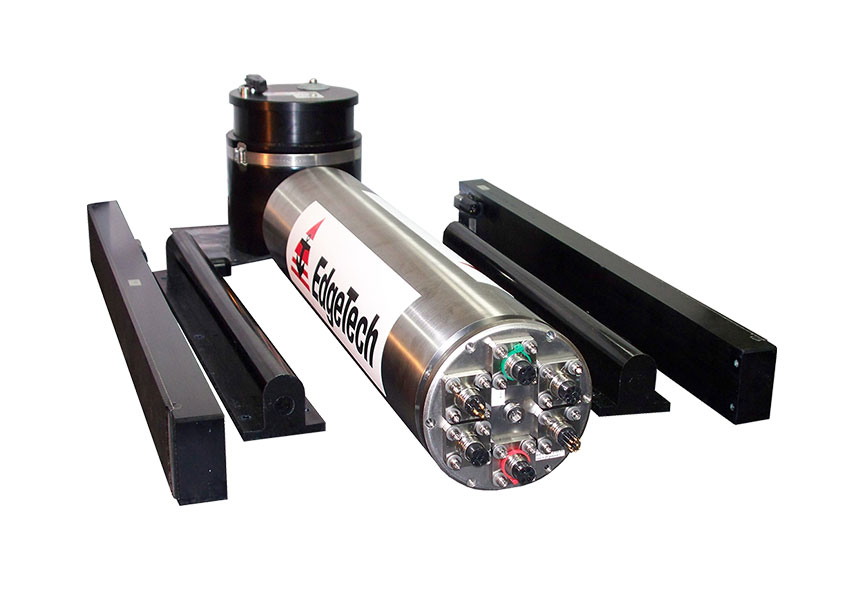

The EdgeTech 2205 is a compact, extremely flexible and configurable sonar system for integration on 3rd party underwater vehicles. They are specially designed for installation and use on Unmanned Underwater Vehicles (UUVs / AUV), Remotely Operated Vehicles (ROVs), Unmanned Surface Vehicles (USVs), and other hosted platforms. This modular unit can be configured, based on the customers’ application, to collect side scan sonar imagery and sub-bottom profiles, singly or in concert with one another. Careful attention has been paid to size, weight and power consumption. The systems available from Unique are provided as a complete package with the 2205 electronics enclosed in a pressure vessel, with separate transducer arrays are provided for the side scan sonar and sub-bottom profiler. The arrays can be mounted in acceptable location on the vehicle, preferably away from thrusters and with a “clear view” of the seafloor. The system can operate independent of the hosted platform by simply recording and storing the data or it can be configured to autonomously interoperate with the vehicle during its mission. While EdgeTech supplies its own sonar acquisition software “Discover” on a laptop or rack-mount PC, it is also possible to interface other 3rd Party software for command and control. Subsea units can be depth rated from 0 to 6000 meters. The robust and modular 2200/2205 system includes EdgeTech’s unique and exciting underwater imaging technologies: Full Spectrum® CHIRP Processing, Multi-Pulse technology (future feature), Dynamic Array Focusing (optional) and Dynamic Aperture Sonar Arrays. Our proprietary Full Spectrum® CHIRP Processing enhances long range resolutions through improved signal-to-noise ratios. Multi-Pulse technology puts up to 2 pulses in the water simultaneously thereby enabling either a 2 times survey speed increase over conventional side scan sonar systems or a marked increase of pings on target leading to superior resolutions. EdgeTech’s exclusive Dynamically Focused Arrays sharpen resolutions in the far field and enable better target identifications at longer ranges. The Dynamic Aperture of the sonar array maximizes the highest resolution imagery possible in near and far field ranges.
Features
- Side Scan Frequencies from 300/600 kHz or 300/900kHz
- Sub-bottom Frequencies from 1-10kHz or 2-16kHz
- Simultaneous Dual Frequency operations
- Single or dual frequency Dynamically Focused Arrays
- Multi-Pulse operation
- On-line self-test and status reporting
Specifications
Availability |
---|
Frequency: 100/400 kHz or 300/600 kHz available
Sub-Bottom Profiler Frequency: 2-16 kHz available
Towfish Length x Width: 145 cm x 74 cm.
Depth Rating: 2000 metres.
Resolution: 6-10 cm.
Applications
Marine construction and pre/post dredging surveys.
Route surveys and sediment classification.
Archaeological, geological/geophysical surveys.
Scour and erosion surveys.
Cable and pipeline surveys.
