SENSYS MAGNETO® MX3D UW: Multi Channel Survey System

Availability: Ex-Rental Sale, Rental

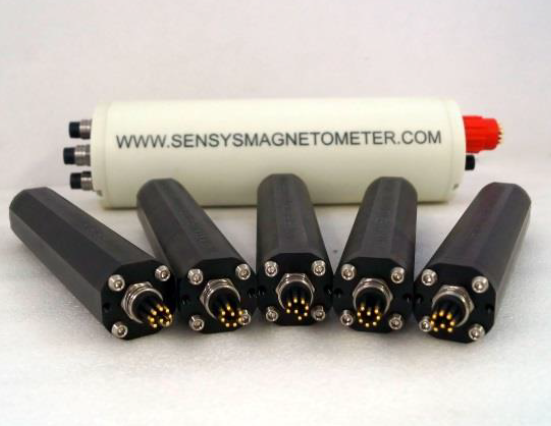

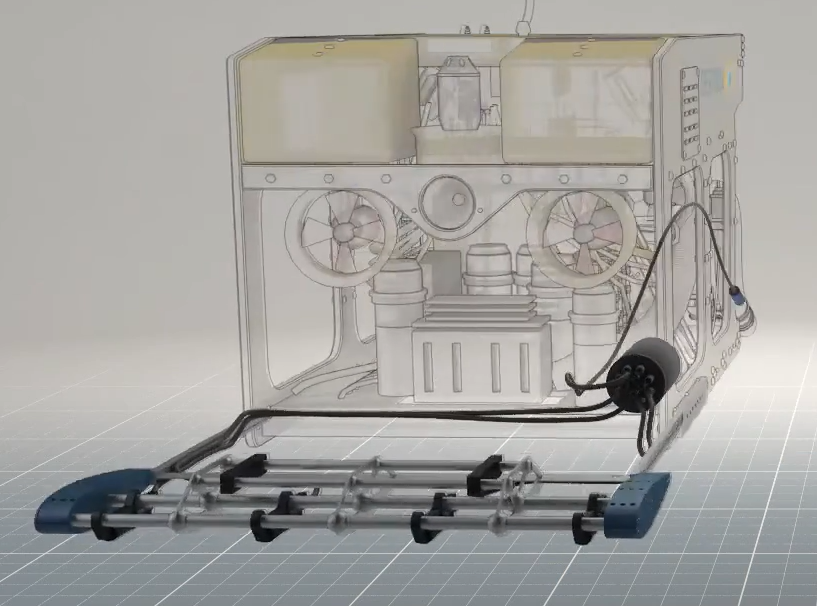

The multi-channel system MX3D UW is an ROV based magnetometer survey system to allocate and track objects and structures under water. The submersible measurement system is equipped with high-resolution three axis Fluxgate sensors FGM3D UW, sampled with up to 2,000 Hz.

Features

Depth rating 300 m (other ratings on request)

Flexible system setup

5 x Fluxgate magnetometer FGM3D UW series per DAU

DAUs cascadable

2x RS232 for connecting GPS, altimeter or AHRS

Specifications

Measurement Range: ±100,000 nT (others available upon request)

Noise: <15 pTrms/√ Hz @ f = 1 Hz

Bandwidth: 2,000 Hz standard, 4,000 Hz upon request

Length: 263 mm

Diameter: 45 mm

Applications

UXO detection

Cartography

Pin pointing

Pipeline detection/tracking

Archaeological prospection
