Buoyancy + Water Weights

UG: Mono Buoyancy Units (Enclosed)

Availability: Rental, Sale

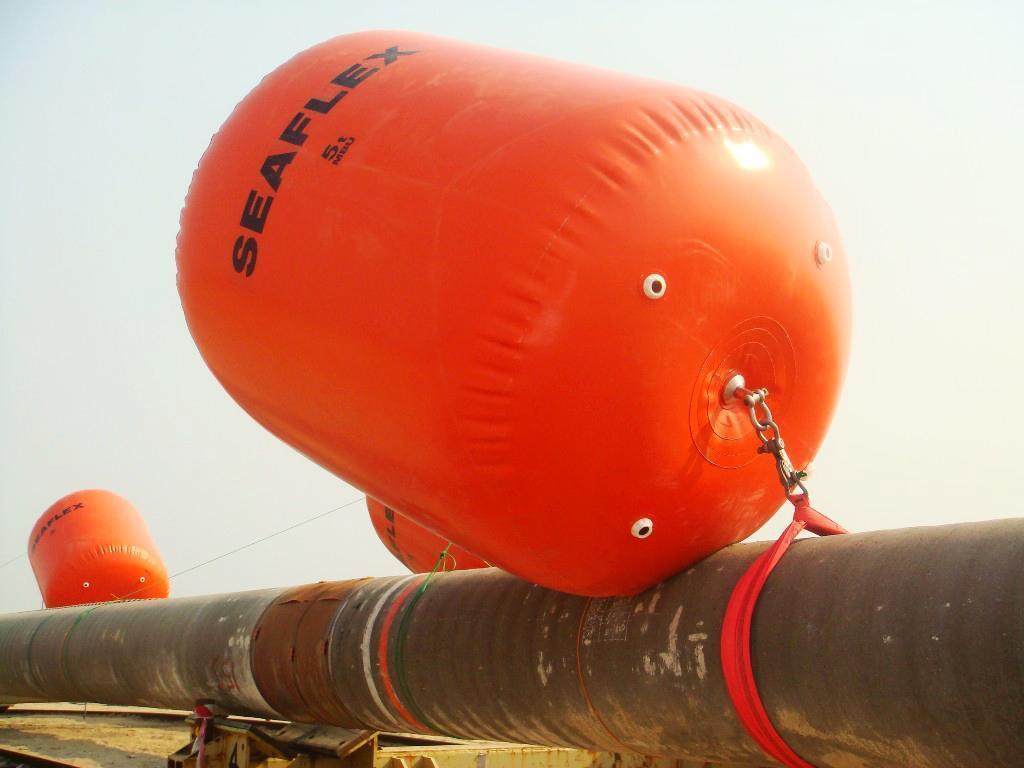

Our enclosed Mono Buoyancy Units (MBUs) deliver industry-leading efficiency in applications such as the laying of steel or HDPE pipelines – and in general support work at or near the surface. Because they’re attached to the load via a single point of connection, they require significantly less rigging time than multi-attachment alternatives Its structural internal connecting strop between each end of the MBU makes it possible to lift through or moor onto Unique Group’s MBUs – a capability which sets us apart from other products on the market.

Features

Designed to transmit through-loads via single central

connection, can be lifted via this point, can even be moored

onto.

Rental units inspected and tested between every single job.

Buoyancy of individual or multiple units can be increased or

decreased as required from the surface.

2 x 3/4 inch BSP standard inflation/deflation valves with 316

stainless steel male Camlock adapter as standard.

Leafield Marine high flow pressure relief valves (PRVs).

Delivered in an enclosed crate and ready for immediate use with

universally compliant documentation: MBU specific log book

containing certification, service records and operating manual.

Specifications

Lightweight (approx 1% of capacity) and packed small for Fully

compliant with IMCA D-016 recommended 5:1 factor of safety.

Overall assembly physically tested and proven to exceed a 5:1

minimum WLL safety factor. Independent Type Test Certificates

are available.

Fitted with multiple pressure relief valves to ensure safety

during use.

High performance structural fabric canopy.

RF welded seams.

Structural through-strop for transmission of lifting loads

Applications

Marine Salvage

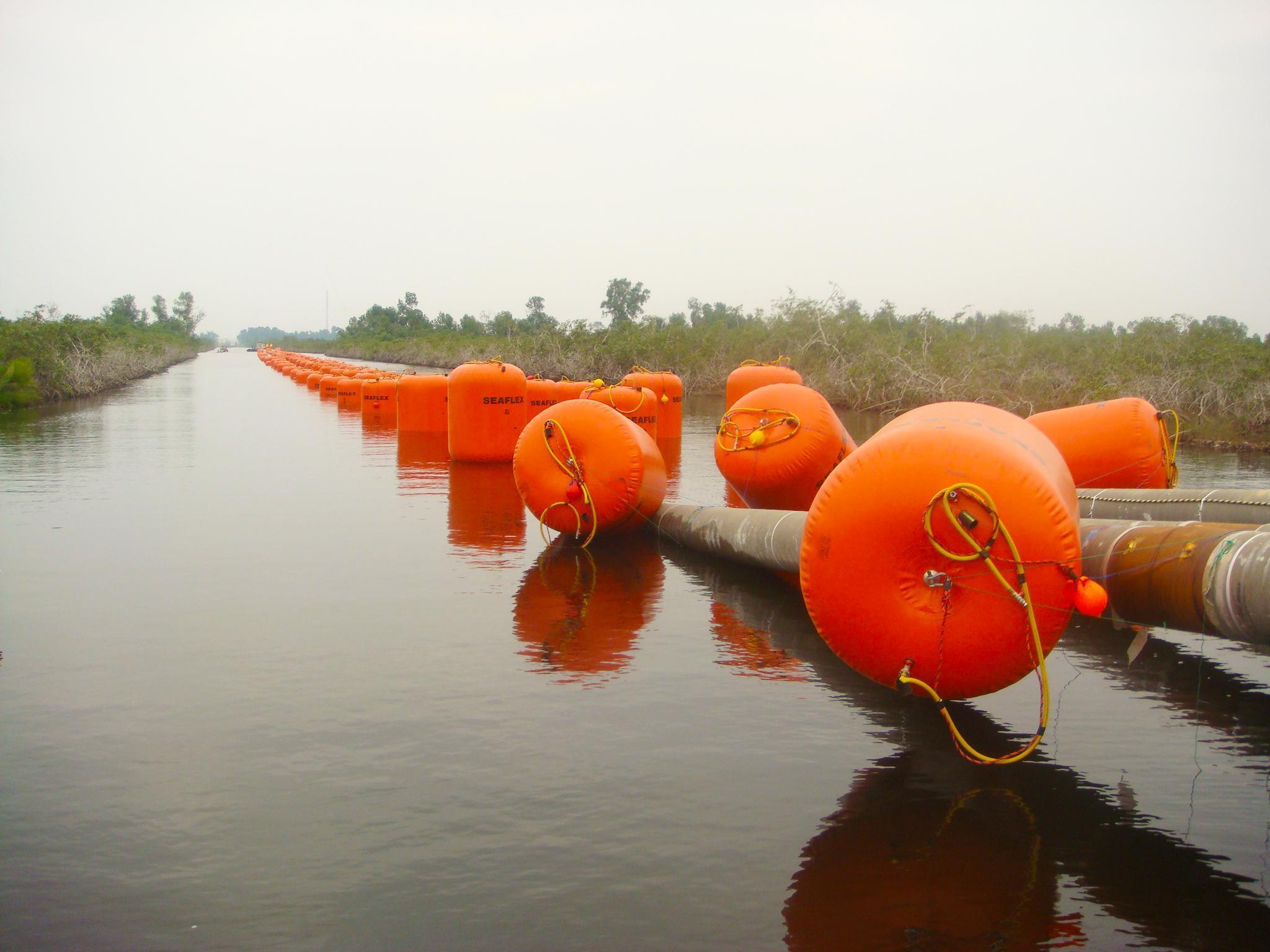

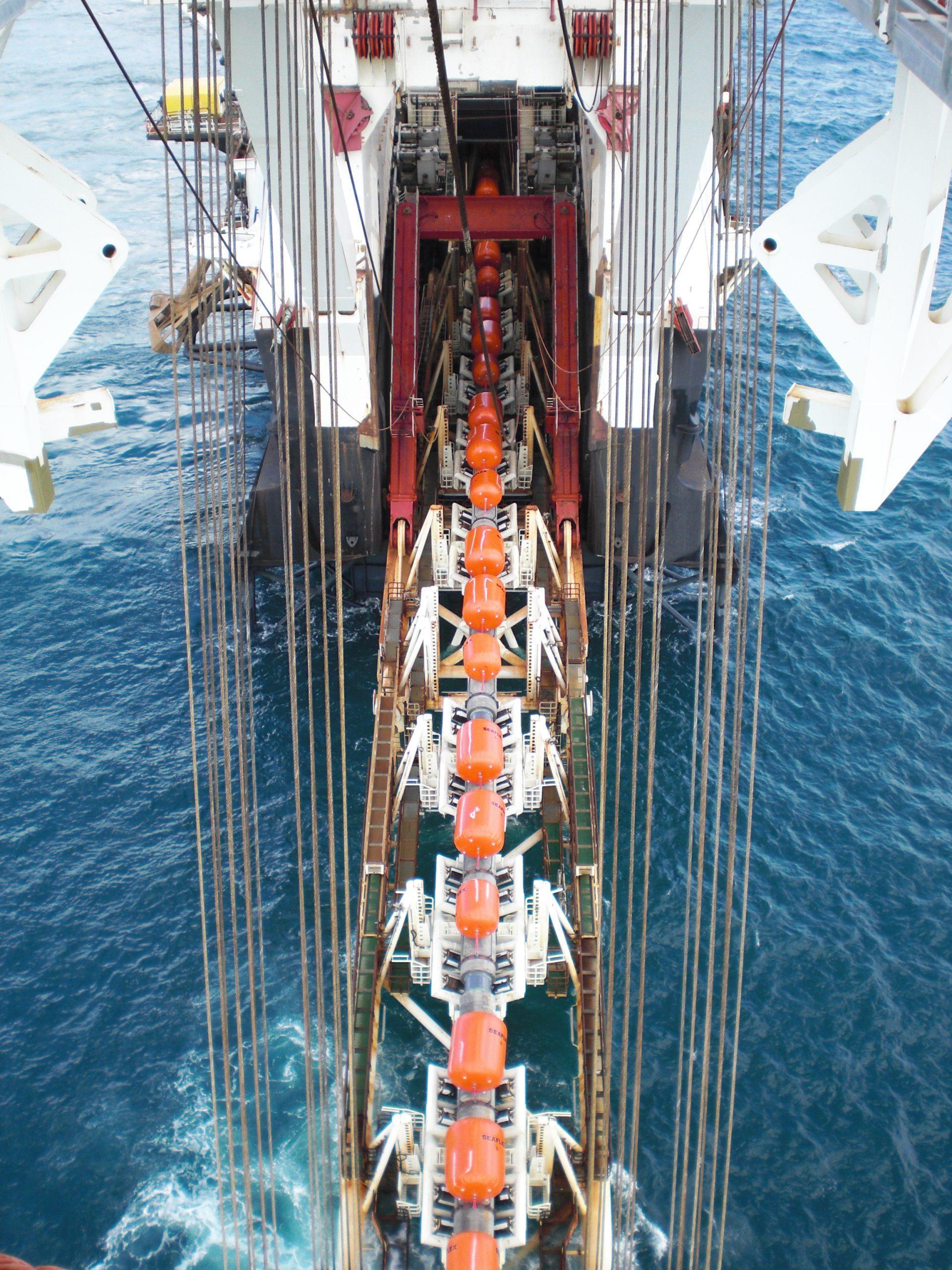

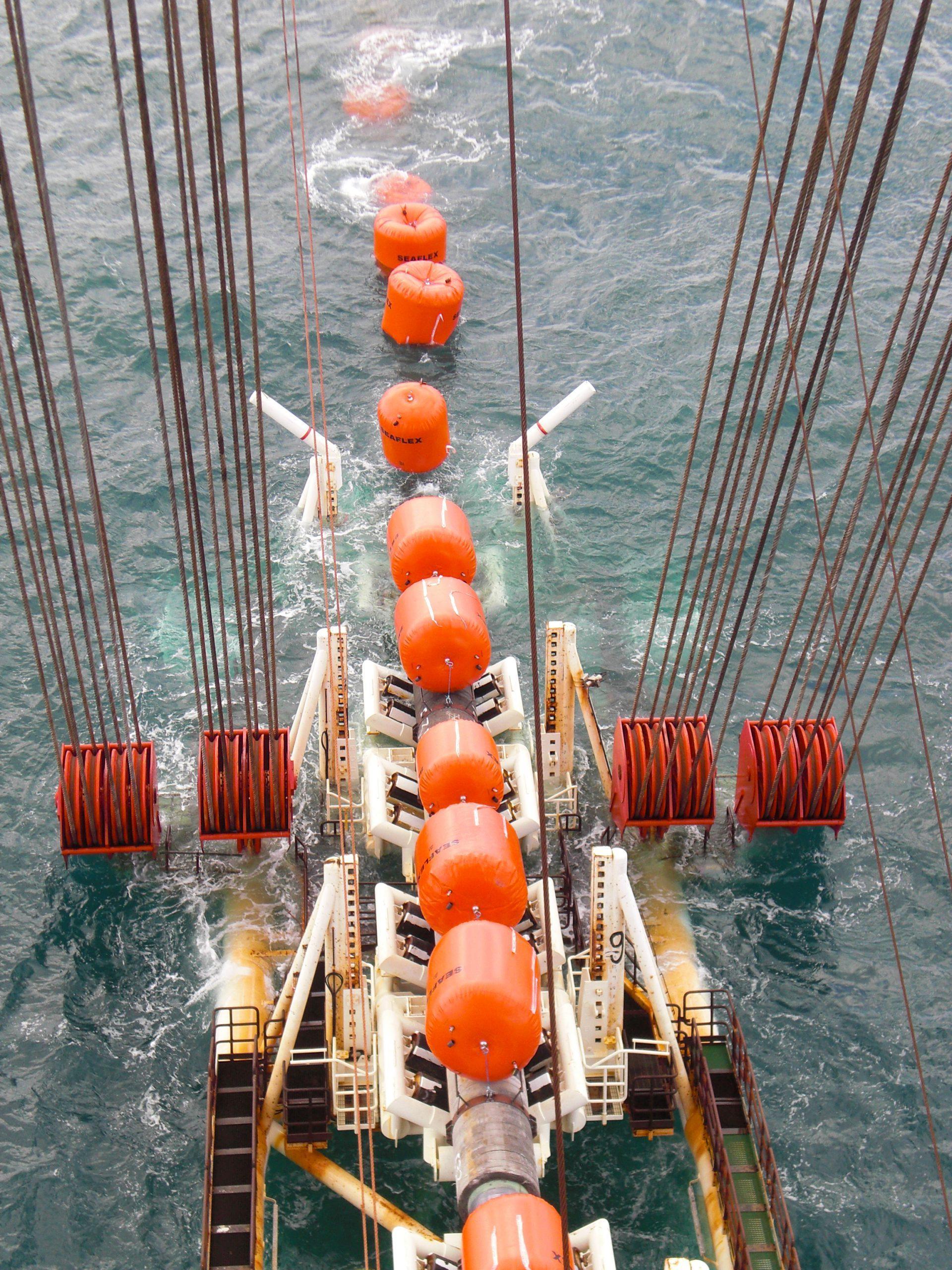

Pipe Lay

Offshore Construction

Pipeline Offshore Landing
