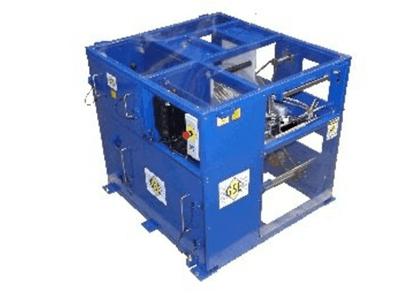

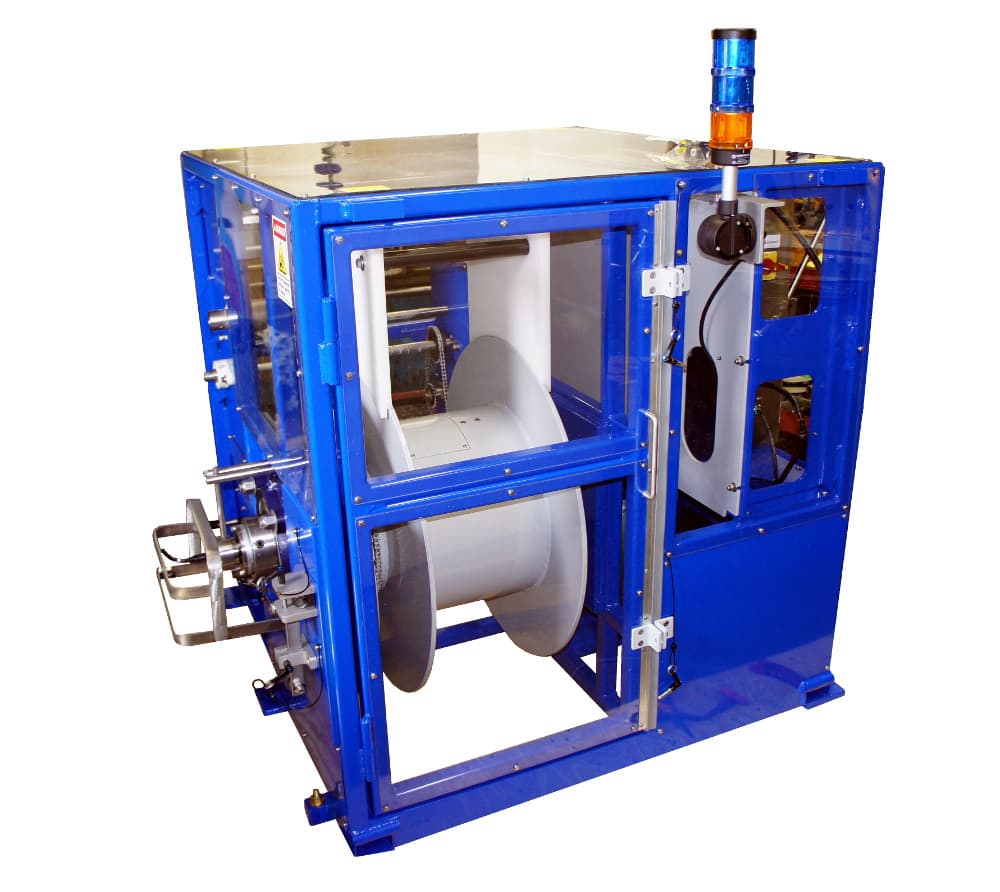

A.G.O. CMW-2: 3 Phase Electric Winch (3.75kW)

Availability: Ex-Rental Sale, Rental, Sale

CMW-2 has been developed from the highly successful original DC motor version of the CSW7, this version is once again a step up in performance and capacity from the 3HP CSW 7V. AGO have now managed to increase the effective power by using a 3.75kW AC Motor with an inverter drive within an enlarged design of the proven chassis.

Features

3 phase electric dimensions

Speed variations

Lightweight aluminium constructions

Up to 700 m of 8.2 mm cable capacity

Spooling gear and sealed slip rings

Specifications

Drum size: 27″ flange x 16″ core x 12″ width

Motor: LEESON 5HP 1800RPM 400 VAC 3PH cast iron brake

Gearbox: LEESON E42HE STEEL steel gearbox (21:15:1)

Drive Sprocket: 60B27

Drum Sprocket: 60A60

Applications

Ideal for towing magnetometers, gradiometer arrays, and side scans
