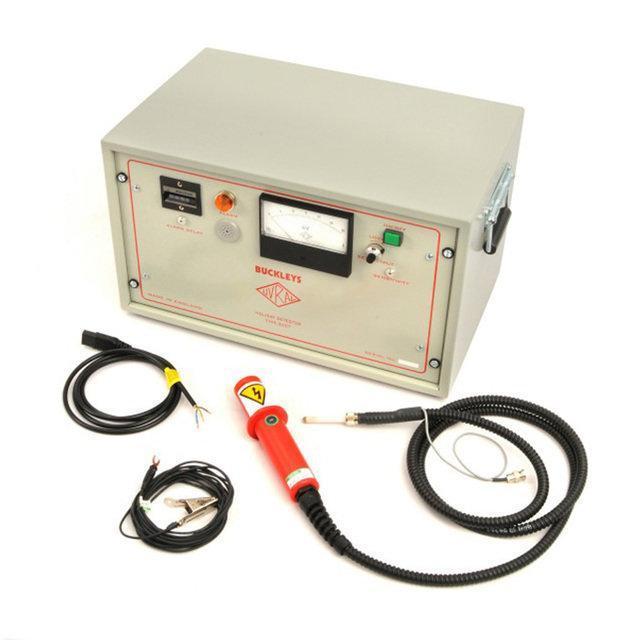

Buckleys: DCCT Pinhole/Cable Tester with Handle (2kV – 15kV)
Unique Group offers the Buckleys DCCT 2-7.5kV pinhole/cable tester, which belongs to the range of testers designed for the automatic testing and counting of holidays/porosity in coatings of a non-conducting nature.
Resettable high speed counter
Variable alarm and sensitivity controls
Visual and audible alarms
Suitable for low or high speed testing
Conforms to DC testing of cables BS EN 5056:2002 (formerly BS 5099)
Maximum continuous output current: <1mA.
Weight: 17 Kg
Dimensions: 500mm (W), 300mm (H), 330mm (D)
Metre accuracy: <2%.
Mains supply voltage: 110/120V or 220/240V, 50/60Hz.
Used for checking the thickness of sheets and panels
Used to measure thickness of moulded components such as switchgear covers and battery cases.
Ideal for checking cables, plastic sheets, battery cases, moulded components and non-conductive coatings on steel pipework.
