Cygnus 6+ PRO: Ultrasonic Thickness Gauge

Availability: Rental, Sale

The Cygnus 6 Plus Pro has a range of features for the professional user including, multi-mode measuring capabilities, A-scan, real-time scan, manual and automatic gain control and comprehensive data logging. It incorporates a bright colour LCD display and an end mounted rotatable OLED display.

Features

Multiple-Echo for reliable, accurate through coating measurements.

Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting.

Intuitive easy to use menu, A-scan display.

Real time B-scan display.

Comprehensive data logging capabilities.

Specifications

Measuring Modes: Multiple-Echo using 3 echoes to ignore coatings up to 20mm thick. Echo-Echo uses 2 echoes to ignore coatings up to 1mm thick. Single-Echo using 1 echo.

Materials: Velocities from 1,000 – 9,000 m/s (0.0390 – 0.3543 in/us)

Accuracy: ±0.05 mm (±0.002”)

Measurement: 0.8 – 250mm (0.031 in. – 10 in.)

Resolution: Multiple-Echo mode – 0.1 mm (0.005”) or 0.05 mm (0.002”) Single-Echo and Echo-Echo modes – 0.1 mm (0.005”) or 0.01 mm (0.001”)

Applications

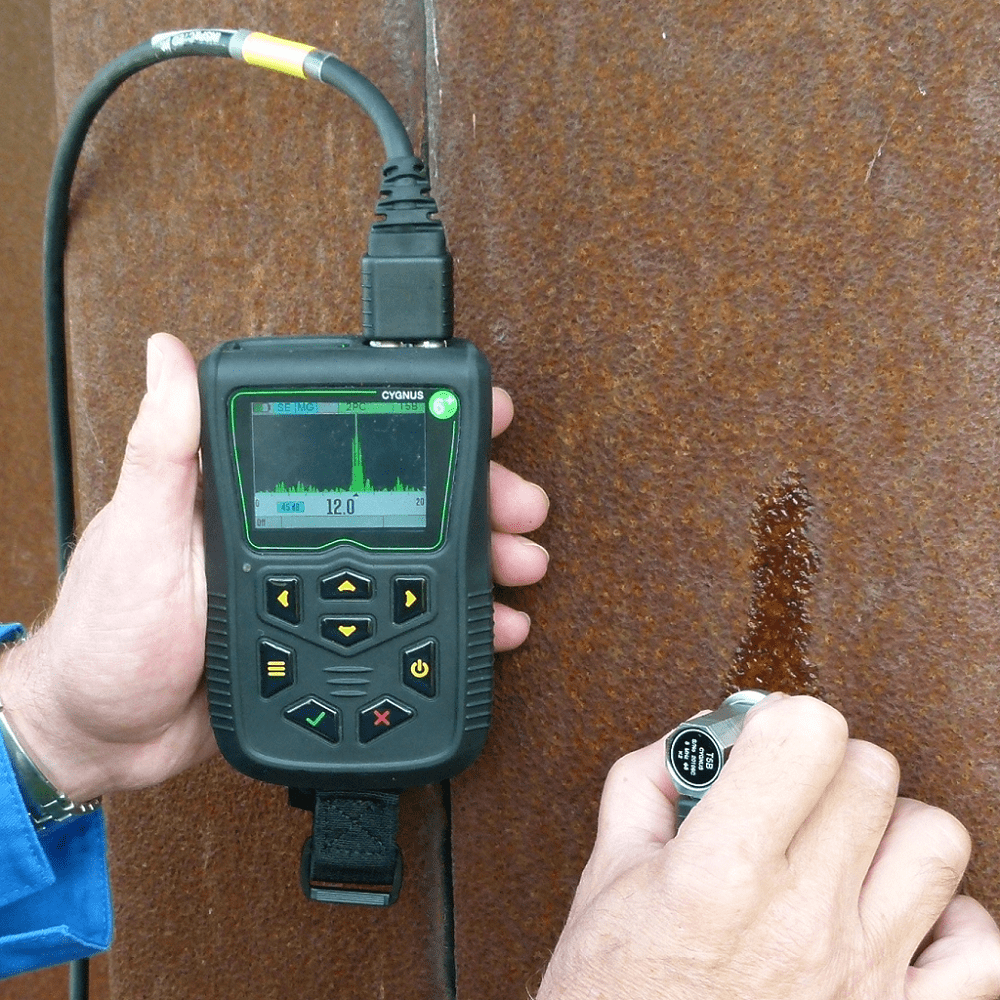

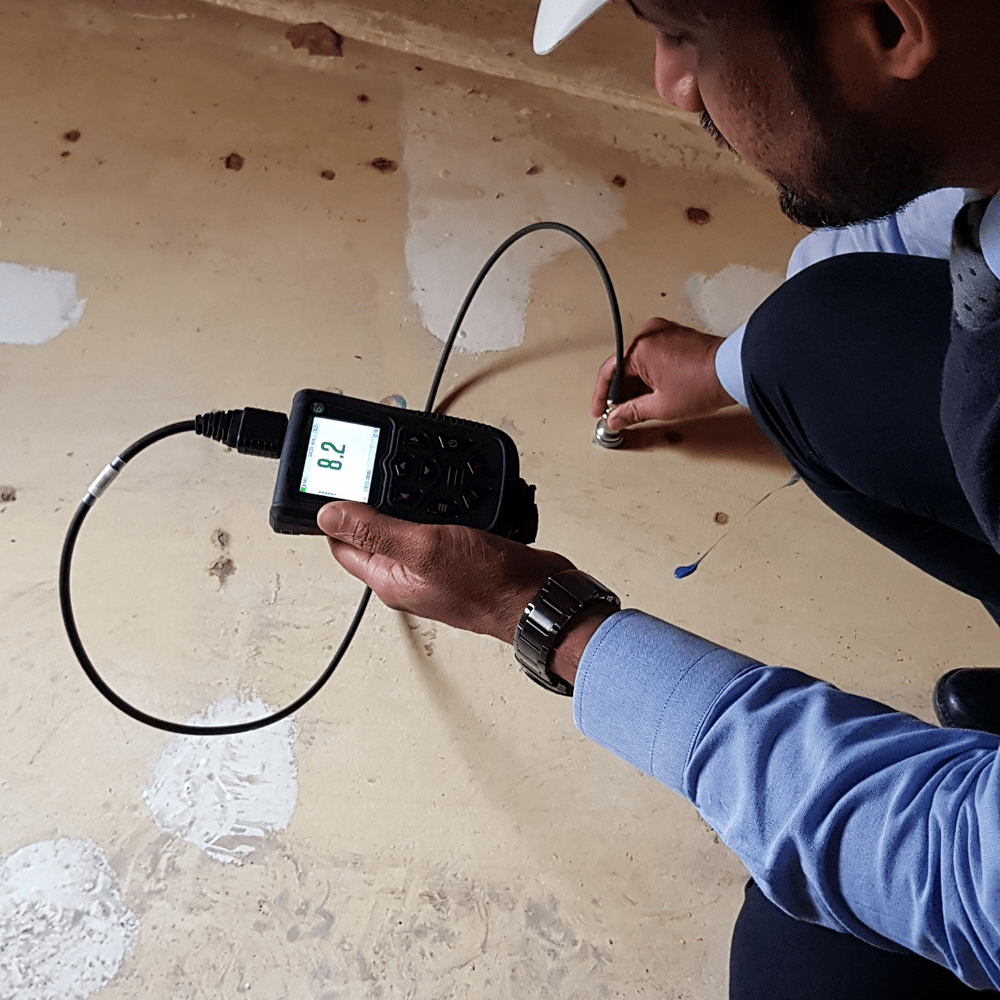

Plant maintenance

Civil engineering

Ship inspections

Oil and

gas facilities

Pipelines
